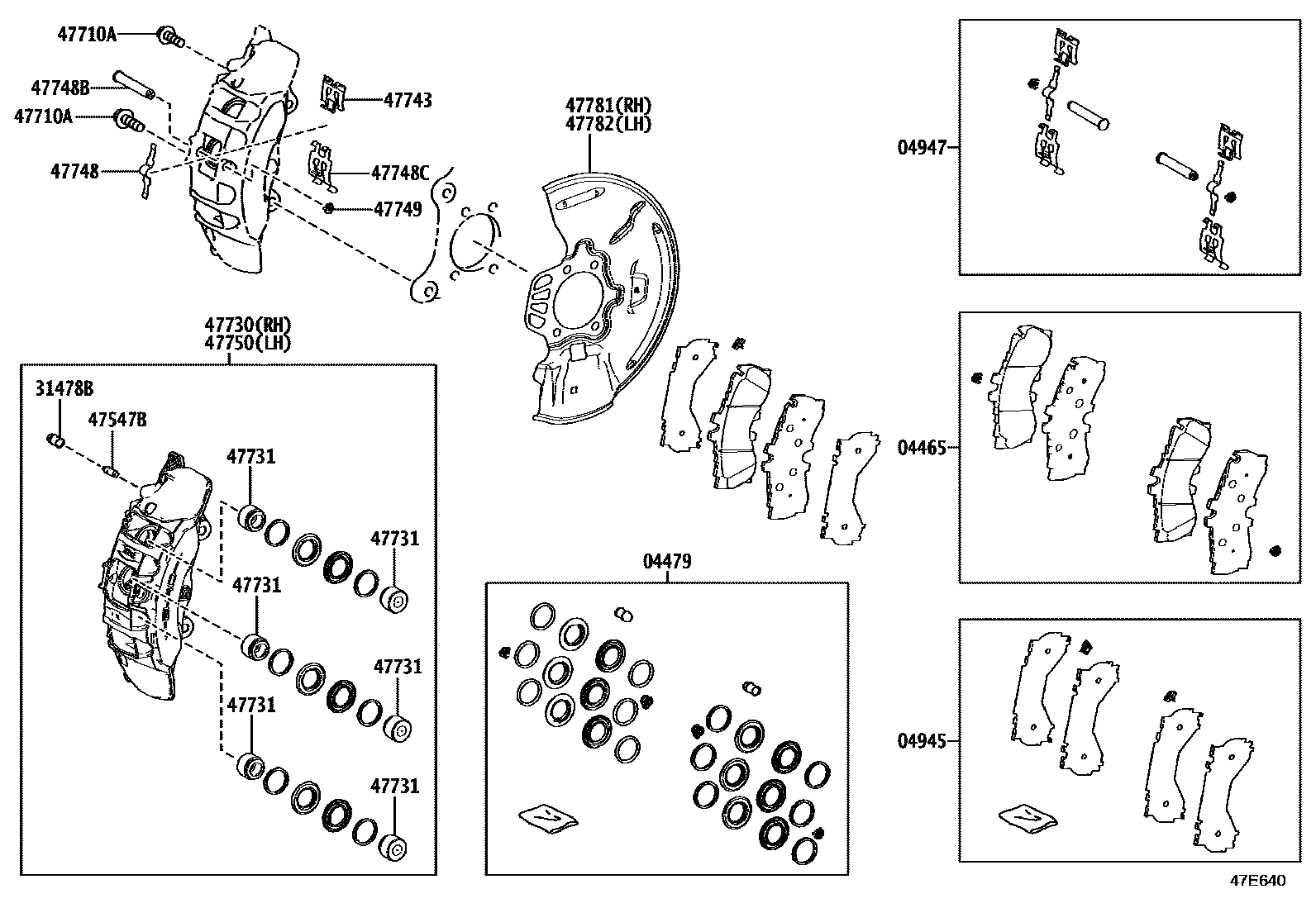

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-48270iGRG75202310

MARK ADVICS VC115-FG

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48240iGRG75202310

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48220iGRG75202310

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48100iGRG75202310

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010×2iGRG75202310

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010×2iGRG75202310

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14212×4iGRG75202310

*14-1.5PX35.5-31

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-40120supersedes 47730-40110iGRG75202310

CUSTOMIZE BRAKE CARIPER-RED

47731PISTON, FRONT DISC BRAKE

main47731-48260×12iGRG75202310

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-48260×2iGRG75202310

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-11051×2iGRG75202310

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-48260×2iGRG75202310

47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47748-48260×2iGRG75202310

47749CLIP, PIN HOLD

main47743-11050×2iGRG75202310

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-40120supersedes 47750-40110iGRG75202310

CUSTOMIZE BRAKE CARIPER-RED

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-48060iGRG75202310

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-48060iGRG75202310

17 parts on this diagram · 1 diagram in section
