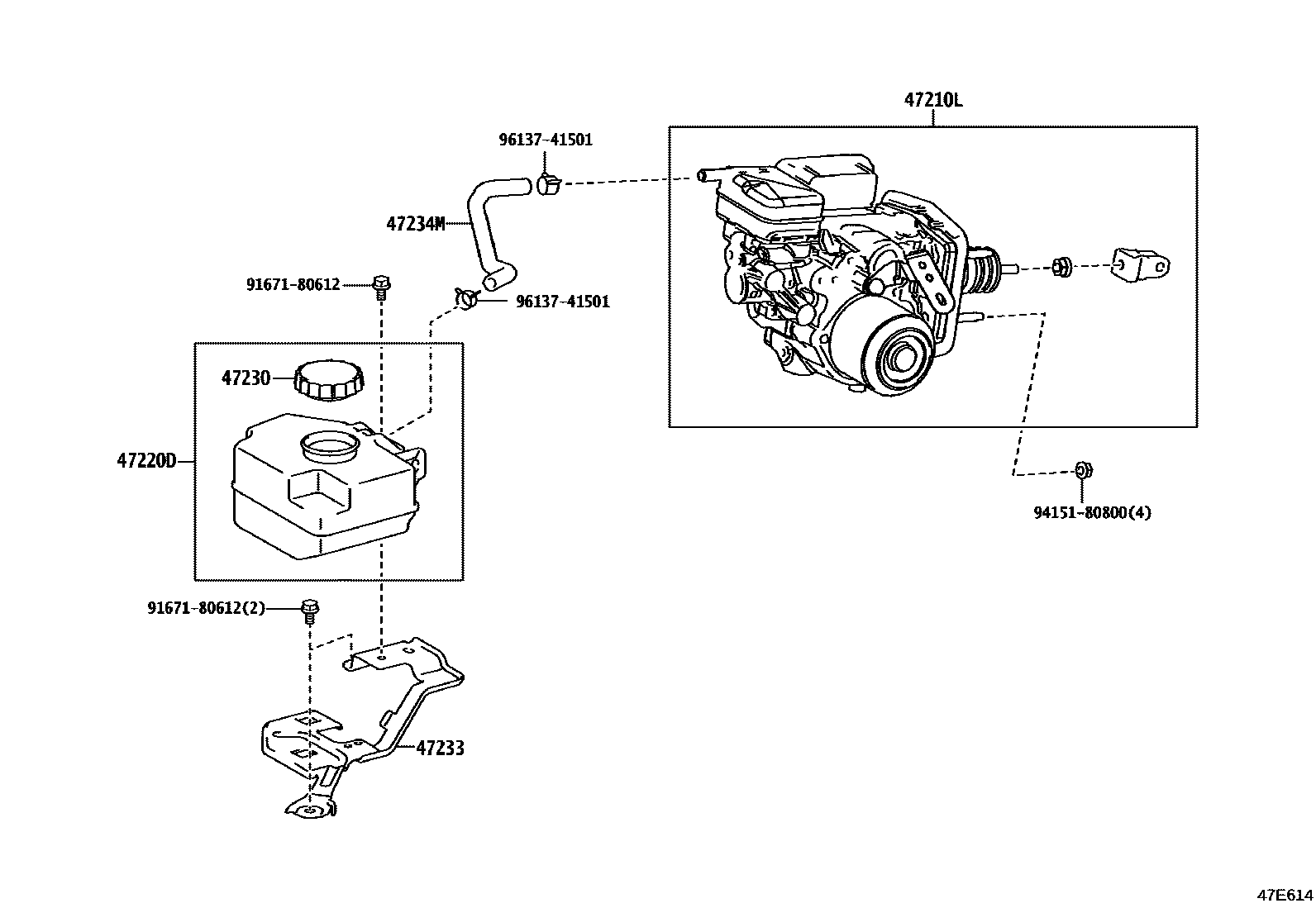

BRAKE MASTER CYLINDER

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-40010iGRG75202310

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-48360iGRG75202310

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iGRG75202310

47233BRACKET, RESERVOIR

main47233-0E180iGRG75202310

47234MHOSE, RESERVOIR, NO.1

main47234-40020iGRG75202310

9167180612

main91671-80612

9415180800

main94151-80800

9613741501

main96137-41501

8 parts on this diagram · 1 diagram in section
