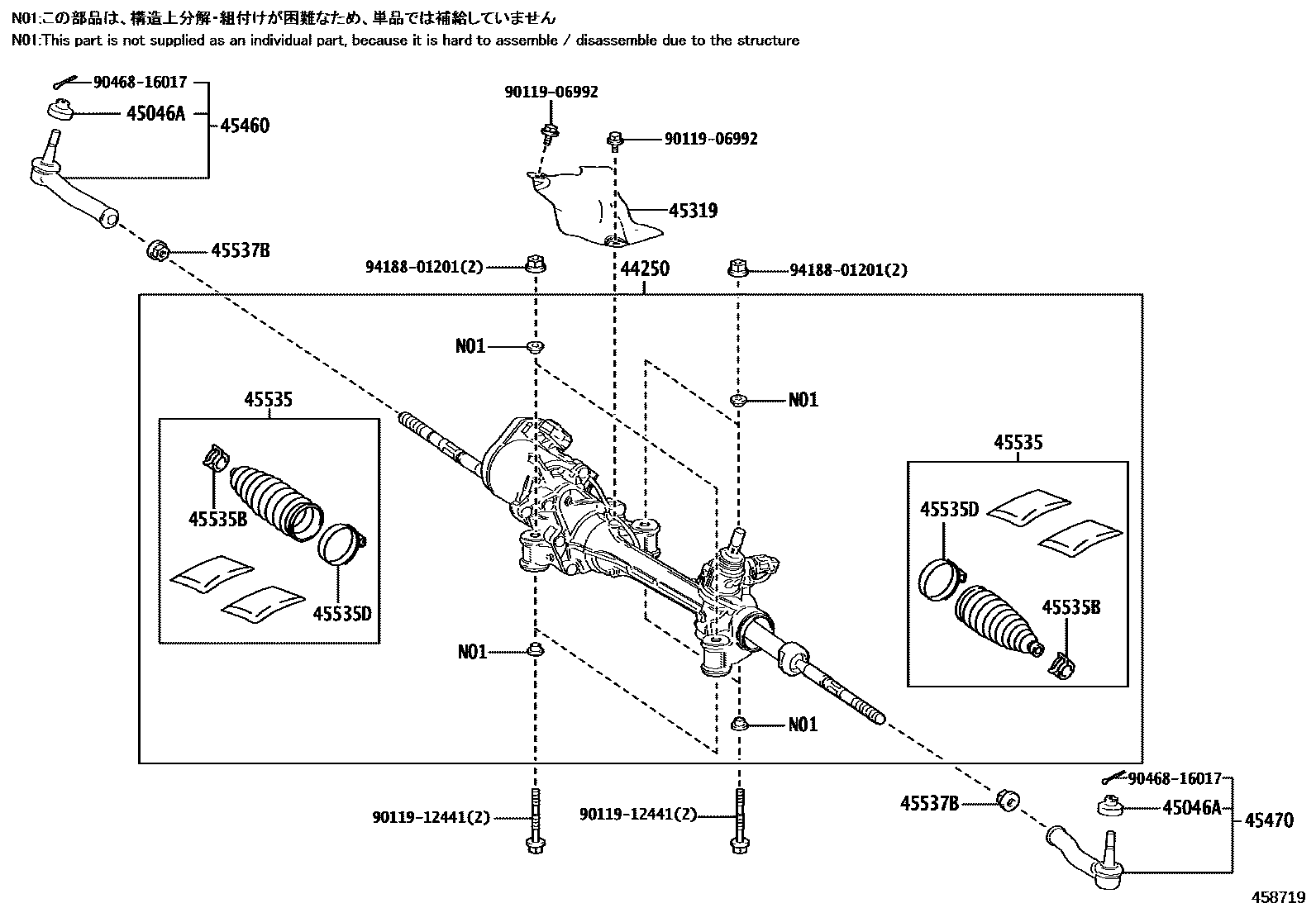

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-40060iGRG75202310

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12018×2iGRG75202310

45319INSULATOR, STEERING GEAR HEAT

main45319-42020iGRG75202310

45460ROD ASSY, TIE, RH

main45460-49155iGRG75202310

45470ROD ASSY, TIE, LH

main45470-49035iGRG75202310

45535BOOT, STEERING RACK, NO.1

main45535-09750×2iGRG75202310

45535BCLIP(FOR STEERING RACK BOOT)

main45537-08030×2iGRG75202310

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-06030×2iGRG75202310

45537BNUT, RACK END LOCK

main90178-18003×2iGRG75202310

9011906992

main90119-06992

9011912441

main90119-12441

9046816017

main90468-16017

9418801201

main94188-01201

13 parts on this diagram · 1 diagram in section
