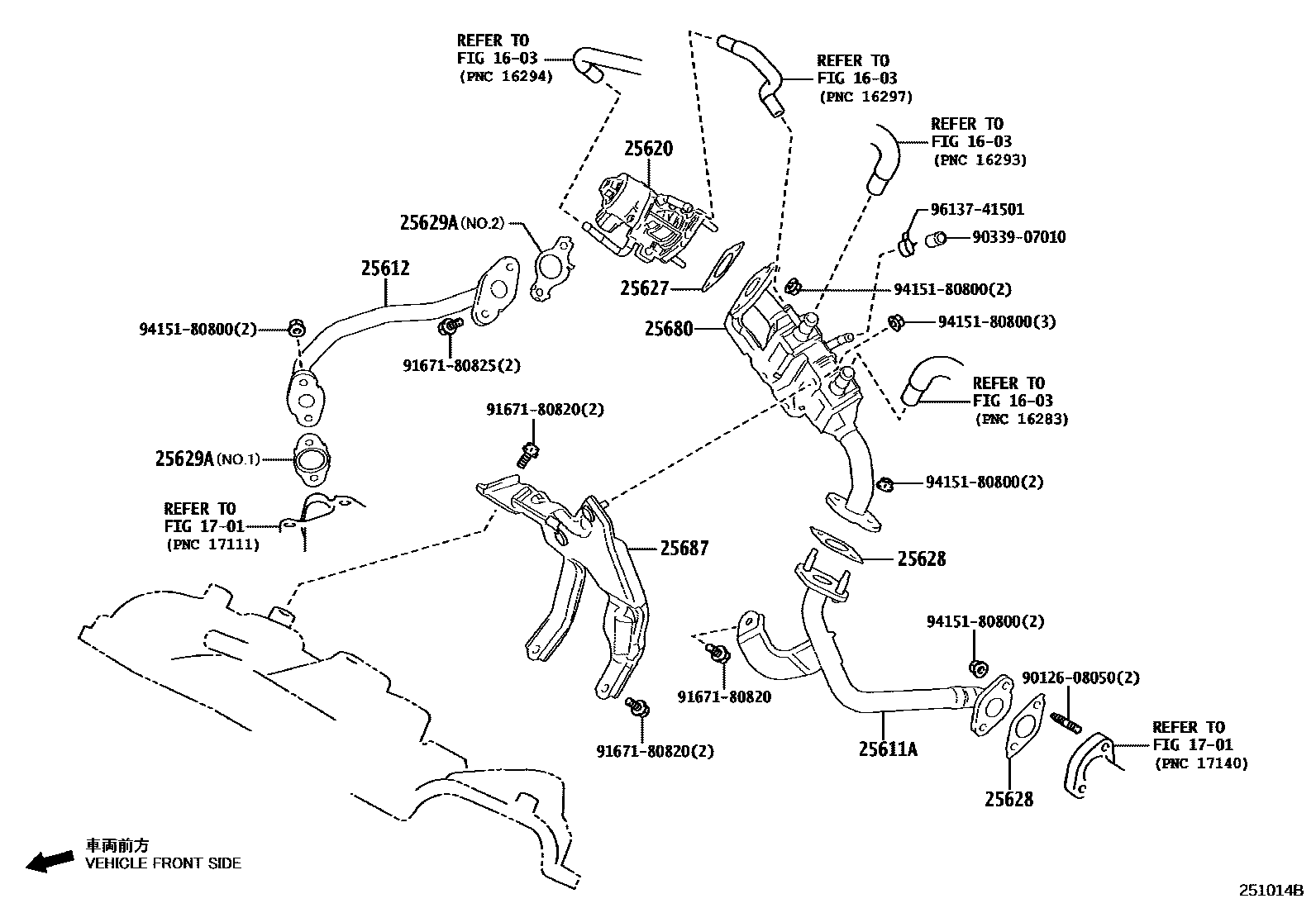

EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25611APIPE, EGR, NO.1

main25611-31100i2GRFXS..GRG75202310

25612PIPE, EGR, NO.2

main25612-31060i2GRFXS..GRG75202310

25620VALVE ASSY, EGR

main25620-31090i2GRFXS..GRG75202310

25627GASKET, EGR VALVE

main25627-31040i2GRFXS..GRG75202310

25628GASKET, EGR INLET

main25628-31030×2i2GRFXS..GRG75202310

25629AGASKET, EGR PIPE, NO.2

main25629-31040i2GRFXS..GRG75202310

NO.1

main25629-36020i2GRFXS..GRG75202310

NO.2

25680COOLER ASSY, EGR

main25680-31060i2GRFXS..GRG75202310

25687BRACKET, EGR COOLER, NO.1

main25687-31030i2GRFXS..GRG75202310

9012608050

main90126-08050

9033907010

main90339-07010

9167180820

main91671-80820

9167180825

main91671-80825

9415180800

main94151-80800

9613741501

main96137-41501

16 parts on this diagram · 1 diagram in section
