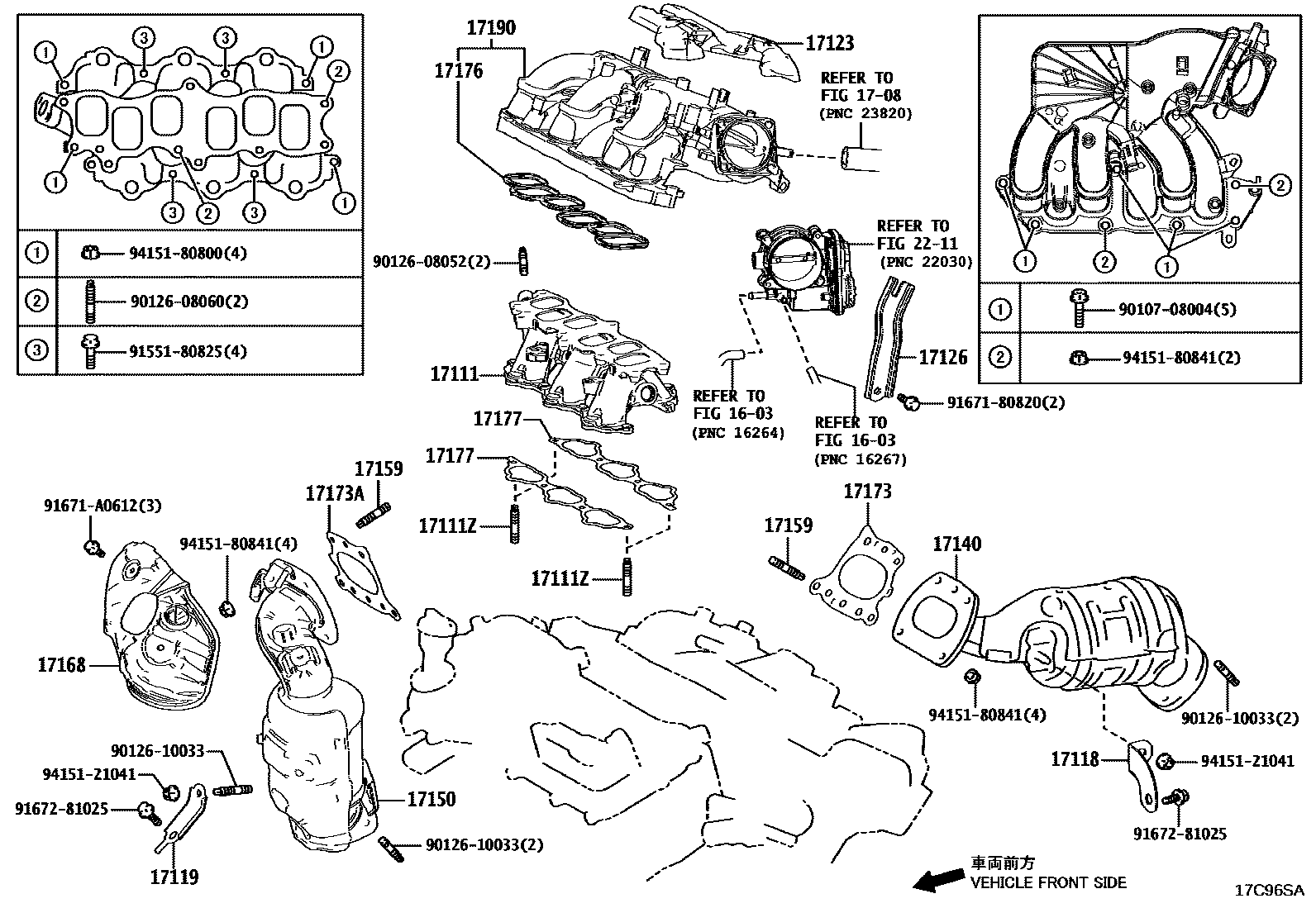

MANIFOLD

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

main17120-31070i2GRFXS..GRG75202310

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08052×4i2GRFXS..GRG75202310

17118STAY, MANIFOLD

main17118-31220i2GRFXS..GRG75202310

17119STAY, MANIFOLD, NO.2

main17119-31150i2GRFXS..GRG75202310

17123COVER, SURGE TANK

main17123-31010i2GRFXS..GRG75202310

17126STAY, SURGE TANK, NO.2

main17126-31110i2GRFXS..GRG75202310

17140MANIFOLD ASSY, EXHAUST, RH

main17140-31B80i2GRFXS..GRG75202310

17150MANIFOLD ASSY, EXHAUST, LH

main17150-31B80i2GRFXS..GRG75202310

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052×8i2GRFXS..GRG75202310

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-31090i2GRFXS..GRG75202310

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31070i2GRFXS..GRG75202310

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31070i2GRFXS..GRG75202310

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31130i2GRFXS..GRG75202310

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31070×2i2GRFXS..GRG75202310

17190TANK ASSY, INTAKE AIR SURGE

main17190-31330i2GRFXS..GRG75202310

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9010708004

main90107-08004

9012608052

main90126-08052

9012608060

main90126-08060

9012610033

main90126-10033

9155180825

main91551-80825

9167180820

main91671-80820

91671A0612

main91671-A0612

9167281025

main91672-81025

9415121041

main94151-21041

9415180800

main94151-80800

9415180841

main94151-80841

29 parts on this diagram · 1 diagram in section
