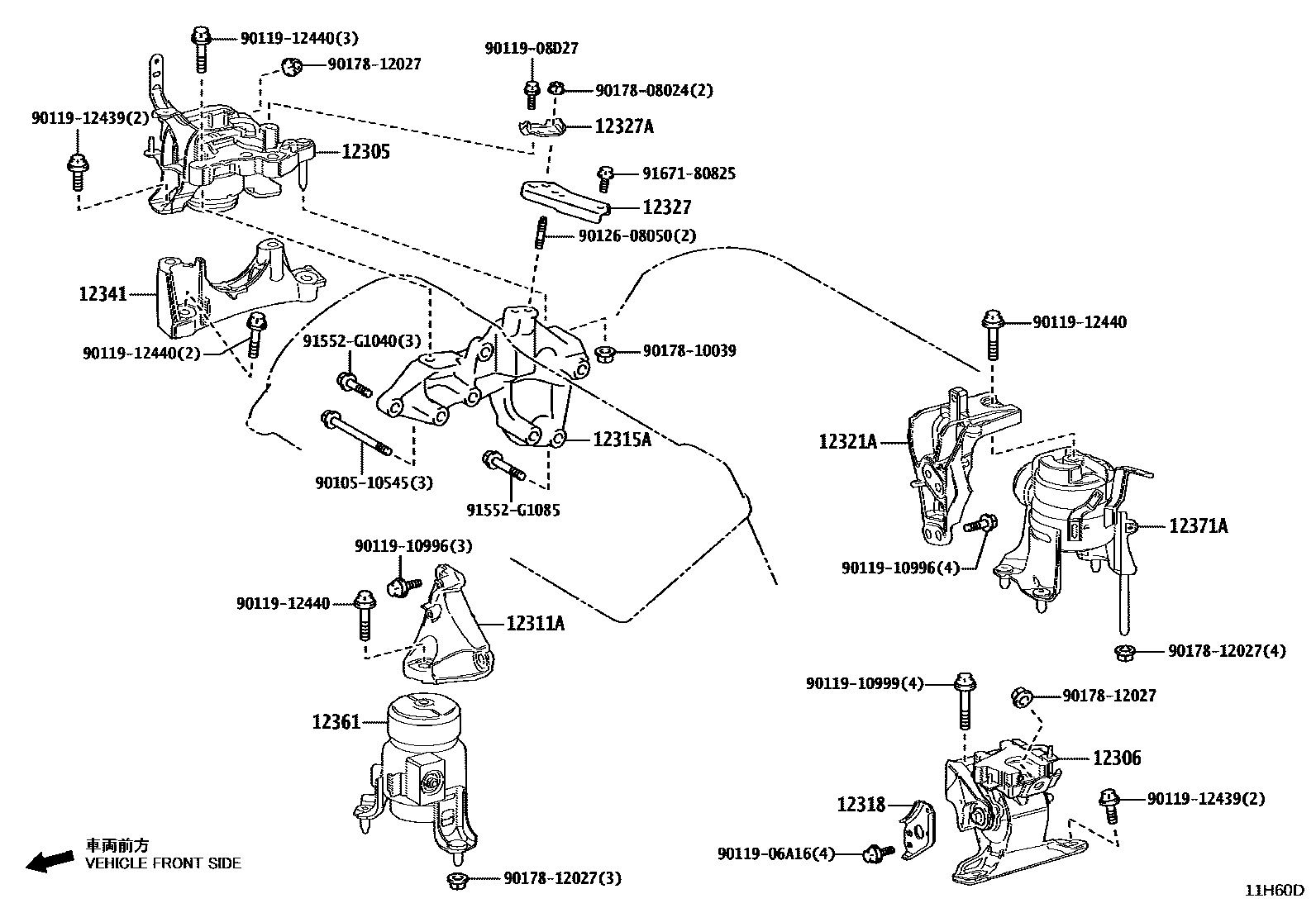

MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-31120i2GRFXS..GRG75202310

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-31040i2GRFXS..GRG75202310

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-31280i2GRFXS..GRG75202310

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-31160i2GRFXS..GRG75202310

12318STAY, ENGINE MOUNTING, LH

main12318-25040i2GRFXS..GRG75202310

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-31280i2GRFXS..GRG75202310

12327STAY, ENGINE MOUNTING, REAR RH

main12327-31120i2GRFXS..GRG75202310

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-31050i2GRFXS..GRG75202310

12341SPACER, ENGINE MOUNTING

main12341-25010i2GRFXS..GRG75202310

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31570i2GRFXS..GRG75202310

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-31470i2GRFXS..GRG75202310

9010510545

main90105-10545

9011906A16

main90119-06A16

9011908D27

main90119-08D27

9011910996

main90119-10996

9011910999

main90119-10999

9011912439

main90119-12439

9011912440

main90119-12440

9012608050

main90126-08050

9017808024

main90178-08024

9017810039

main90178-10039

9017812027

main90178-12027

91552G1040

main91552-G1040

91552G1085

main91552-G1085

9167180825

main91671-80825

25 parts on this diagram · 1 diagram in section
