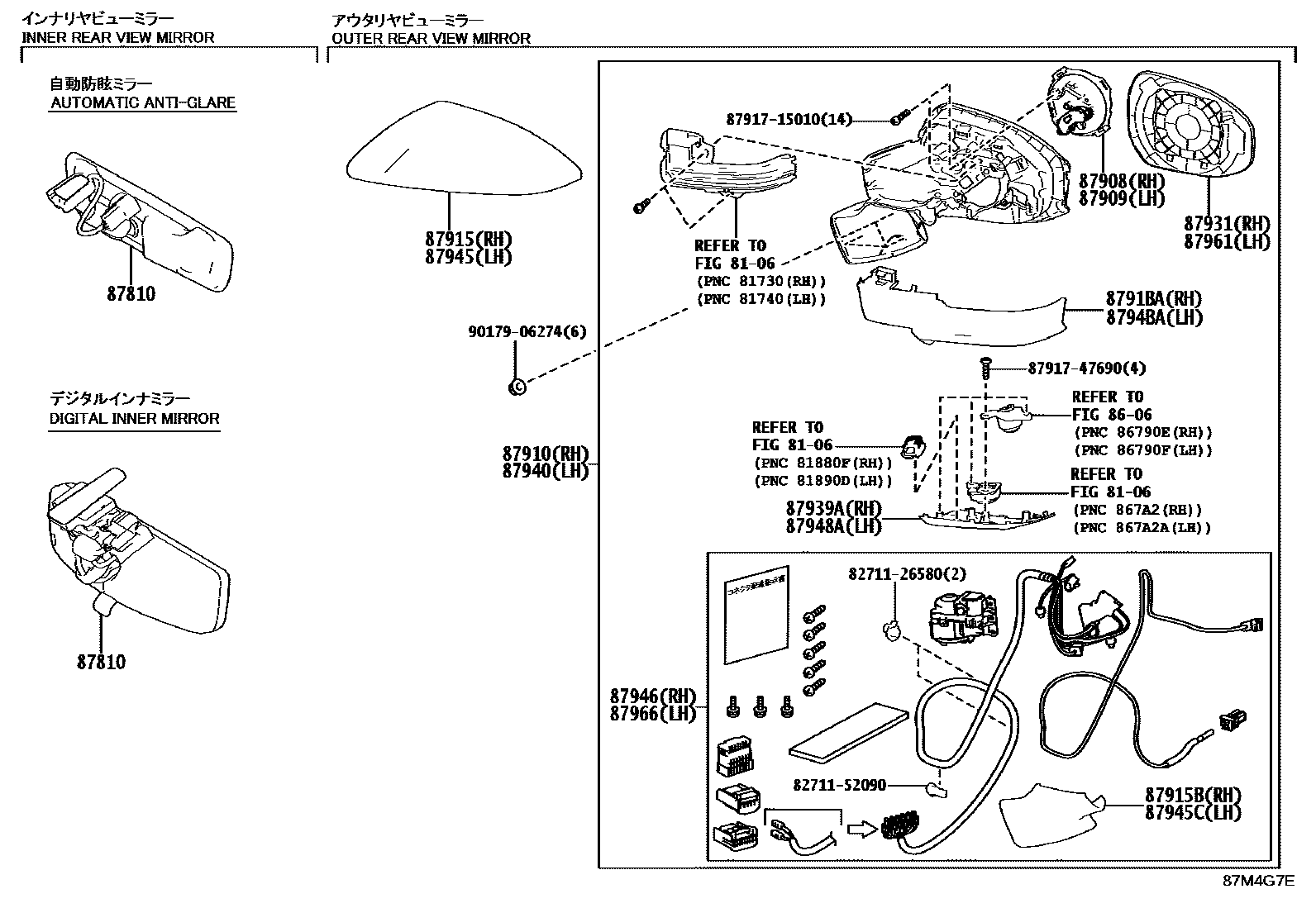

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

main87840-0W360i202405

main87840-0W460i202405

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-42M50i202405

main87908-60V81i202409

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87908-42M50i202405

main87908-60V81i202405

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-30L80i202405

NO PAINT REQ.

main87910-30L90i202409

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-47110-C1i202405

BLACK,090 ,1L6 ,202 ,2TB ,2XW ,2XY ,2XZ ,2ZR ,3U5 ,3U9 ,4Y3 ,4Y6 ,M18 ,M22 ,M24 ,M26 ,M27

87915BCOVER, OUTER MIRROR, LOWER RH

main8795A-30L80i202405

8791BACOVER, OUTER MIRROR, RH NO.3

main8791B-47760i202405

main8791B-47790i202405

87931OUTER MIRROR, RH

main87931-30L80i202405

main87931-30L90i202405

87939ACOVER, OUTER MIRROR HOLE, RH

main87939-30L70i202405

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-30M90i202405

NO PAINT REQ.

main87940-30N00i202405

NO PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-47110-C1i202405

BLACK,090 ,1L6 ,202 ,2TB ,2XW ,2XY ,2XZ ,2ZR ,3U5 ,3U9 ,4Y3 ,4Y6 ,M18 ,M22 ,M24 ,M26 ,M27

87945CCOVER, OUTER MIRROR, LOWER LH

main8795B-30M90i202405

87946RETRACTOR, OUTER MIRROR, RH

main87946-30L80i202405

main87946-30L90i202405

87948ACOVER, OUTER MIRROR HOLE, LH

main87948-30M80i202405

8794BACOVER, OUTER MIRROR, LH NO.3

main8794B-47740i202405

main8794B-47770i202405

87961MIRROR OUTER, LH

main87961-30M70i202405

main87961-30M80i202405

87966RETRACTOR, OUTER MIRROR, LH

main87966-30M90i202405

main87966-30N00i202405

8271126580WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26580

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8791715010ESCUTCHEON

main87917-15010

8791747690ESCUTCHEON

main87917-47690

9017906274

main90179-06274
