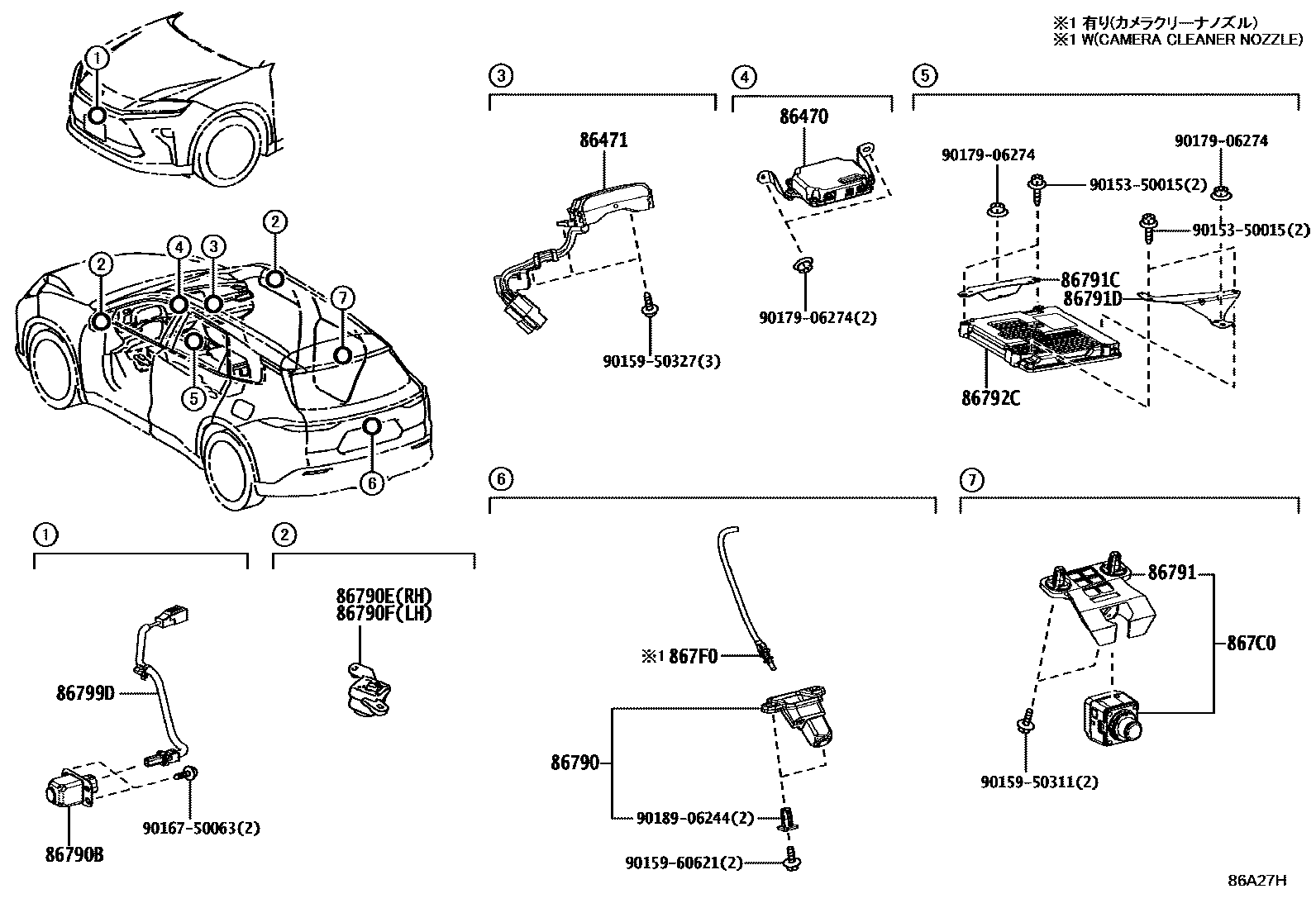

CAMERA & REAR MONITOR DISPLAY

86470COMPUTER ASSY, DRIVER MONITOR

main86470-30090iAZSH38..G202405

86471CAMERA, DRIVER MONITOR

main86471-30040iAZSH38..G202405

86790CAMERA ASSY, TELEVISION

main86790-30530iAZSH38..M202412

main86790-30550iAZSH39202409

86790BCAMERA ASSY, TELEVISION, FR

main86790-30560iAZSH38..G202405

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-30580iAZSH38..G202405

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-30590iAZSH38..G202405

86791BRACKET, TELEVISION CAMERA

main86791-30200iAZSH38..G202405

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-30050iAZSH38..G202405

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-30060iAZSH38..G202405

86792CCOMPUTER, PARKING ASSIST

main86792-30600iAZSH38..G202405

86799DWIRE, TELEVISION CAMERA, FRONT

main86799-30160iAZSH38..G202405

867C0CAMERA ASSY, INNER MIRROR

main867C0-30070iAZSH38..G202405

867F0NOZZLE ASSY, CAMERA CLEANER

main867F0-30030iAZSH38..G202405

9015350015

main90153-50015

9015950311

main90159-50311

9015950327

main90159-50327

9015960621

main90159-60621

9016750063

main90167-50063

9017906274

main90179-06274

9018906244

main90189-06244

20 parts on this diagram · 1 diagram in section
