CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010iAZSH38202405

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-30470iAZSH38..M202405

main89340-30480iAZSH38..G202405

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-K0060-A7×2iAZSH39202409

PRECIOUS WHITE PEARL,090 ,2XW ,M26

main89341-K0060-C1×2iAZSH38202405

BLACK,202

main89341-K0060-L4×2iAZSH38202405

PRECIOUS BRONZE,2XZ ,4Y6 ,M27

main89341-K0060-S0×2iAZSH39202409

MASSIVE GRAY,1L6 ,2XY ,M22 ,M37

main89341-K0060-X1×2iAZSH39202409

EMOTIONAL RED 3,2ZR ,3U9 ,M24

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-50080-C0×2iAZSH38202405

DUMMY-MAT BLACK

89341MSENSOR, ULTRASONIC, FRONT SIDE

main89341-K0070-A6×2iAZSH38..G202405

PRECIOUS WHITE PEARL,090 ,2XW ,M26

main89341-K0070-C0×2iAZSH38..G202405

BLACK,202

main89341-K0070-E8×2iAZSH39202409

PRECIOUS BRONZE,2XZ ,4Y6 ,M27

main89341-K0070-P2×2iAZSH38..G202405

MASSIVE GRAY,1L6 ,2XY ,M22

main89341-K0070-X1×2iAZSH38..G202405

EMOTIONAL RED 3,2ZR ,3U9 ,M24

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-K0060-A7×2iAZSH38202405

PRECIOUS WHITE PEARL,090 ,2XW ,M26

main89341-K0060-C1×2iAZSH38202405

BLACK,202

main89341-K0060-L4×2iAZSH39202409

PRECIOUS BRONZE,2XZ ,4Y6 ,M27

main89341-K0060-S0×2iAZSH38202405

MASSIVE GRAY,1L6 ,2XY ,M22

main89341-K0060-X1×2iAZSH39202409

EMOTIONAL RED 3,2ZR ,3U9 ,M24

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-K0060-C1×2iAZSH39202409

BLACK,202

89342BSENSOR, ULTRASONIC, REAR SIDE

main89341-K0070-A6×2iAZSH38..G202405

PRECIOUS WHITE PEARL,090 ,2XW ,M26

main89341-K0070-C0×2iAZSH39202409

BLACK,202

main89341-K0070-E8×2iAZSH38..G202405

PRECIOUS BRONZE,2XZ ,4Y6 ,M27

main89341-K0070-P2×2iAZSH38..G202405

MASSIVE GRAY,1L6 ,2XY ,M22

main89341-K0070-X1×2iAZSH39202409

EMOTIONAL RED 3,2ZR ,3U9 ,M24

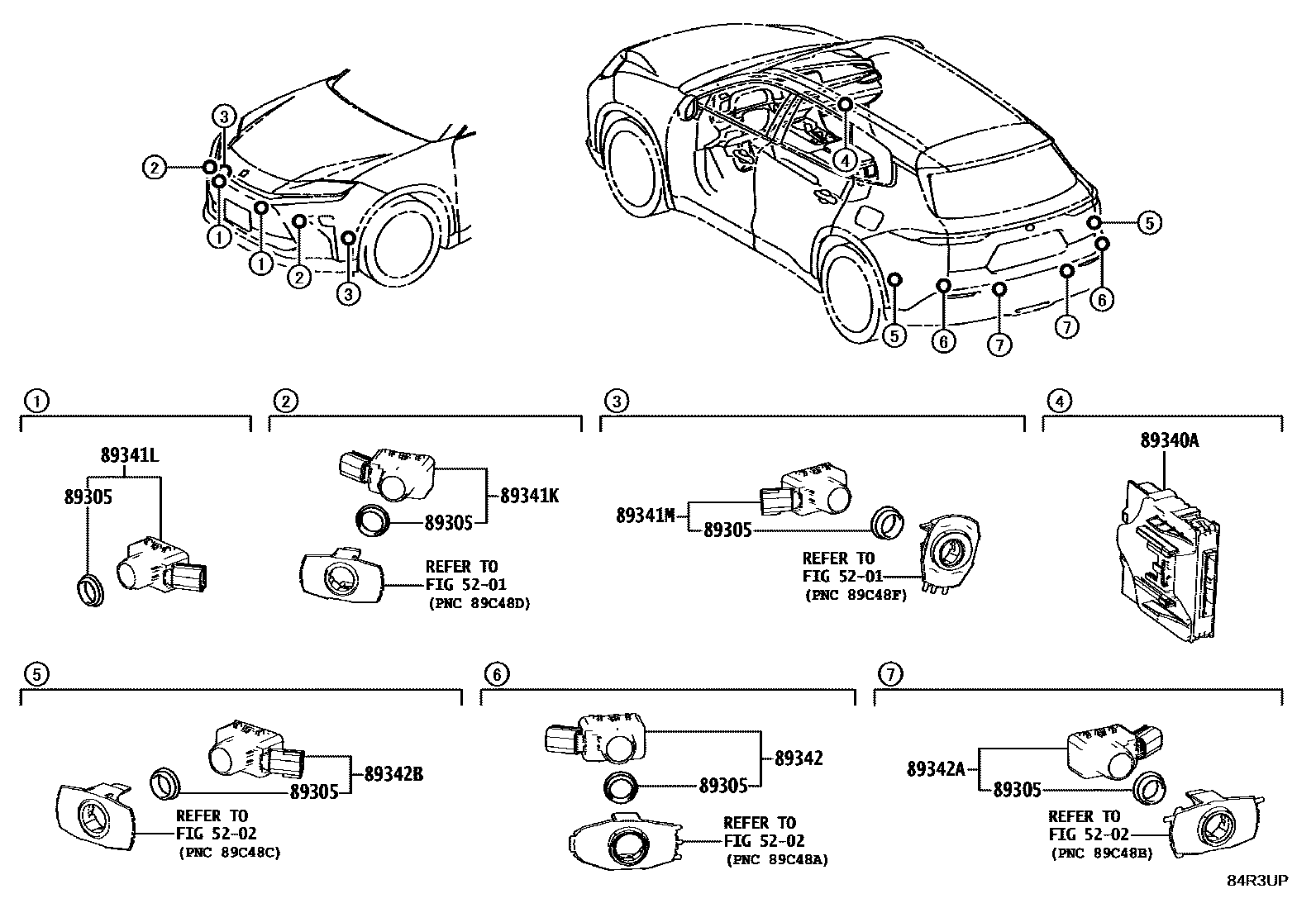

10 parts on this diagram · 1 diagram in section
