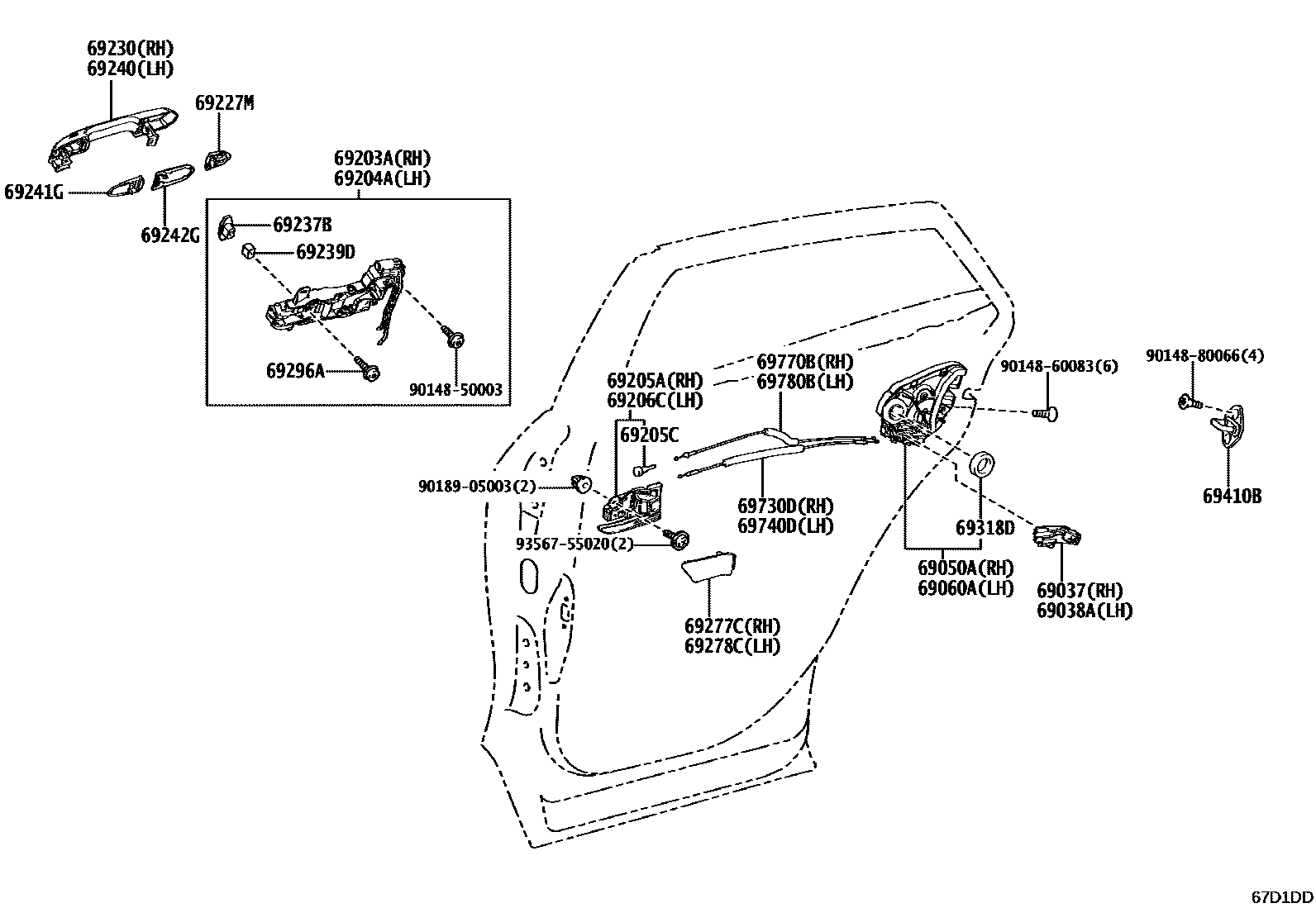

REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PRECIOUS WHITE PEARL,090 ,2XW ,M26
BLACK,202
EMOTIONAL RED 3,2ZR ,3U9 ,M24
PRECIOUS BRONZE,2XZ ,4Y6 ,M27
MASSIVE GRAY,1L6 ,2XY ,M22 ,M37
MASSIVE GRAY,1L6 ,2XY ,M22
69237BNUT, REAR DOOR HANDLE
sub69237-0E010
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PRECIOUS WHITE PEARL,090 ,2XW ,M26
BLACK,202
EMOTIONAL RED 3,2ZR ,3U9 ,M24
PRECIOUS BRONZE,2XZ ,4Y6 ,M27
MASSIVE GRAY,1L6 ,2XY ,M22 ,M37
MASSIVE GRAY,1L6 ,2XY ,M22
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
30 parts on this diagram · 1 diagram in section
