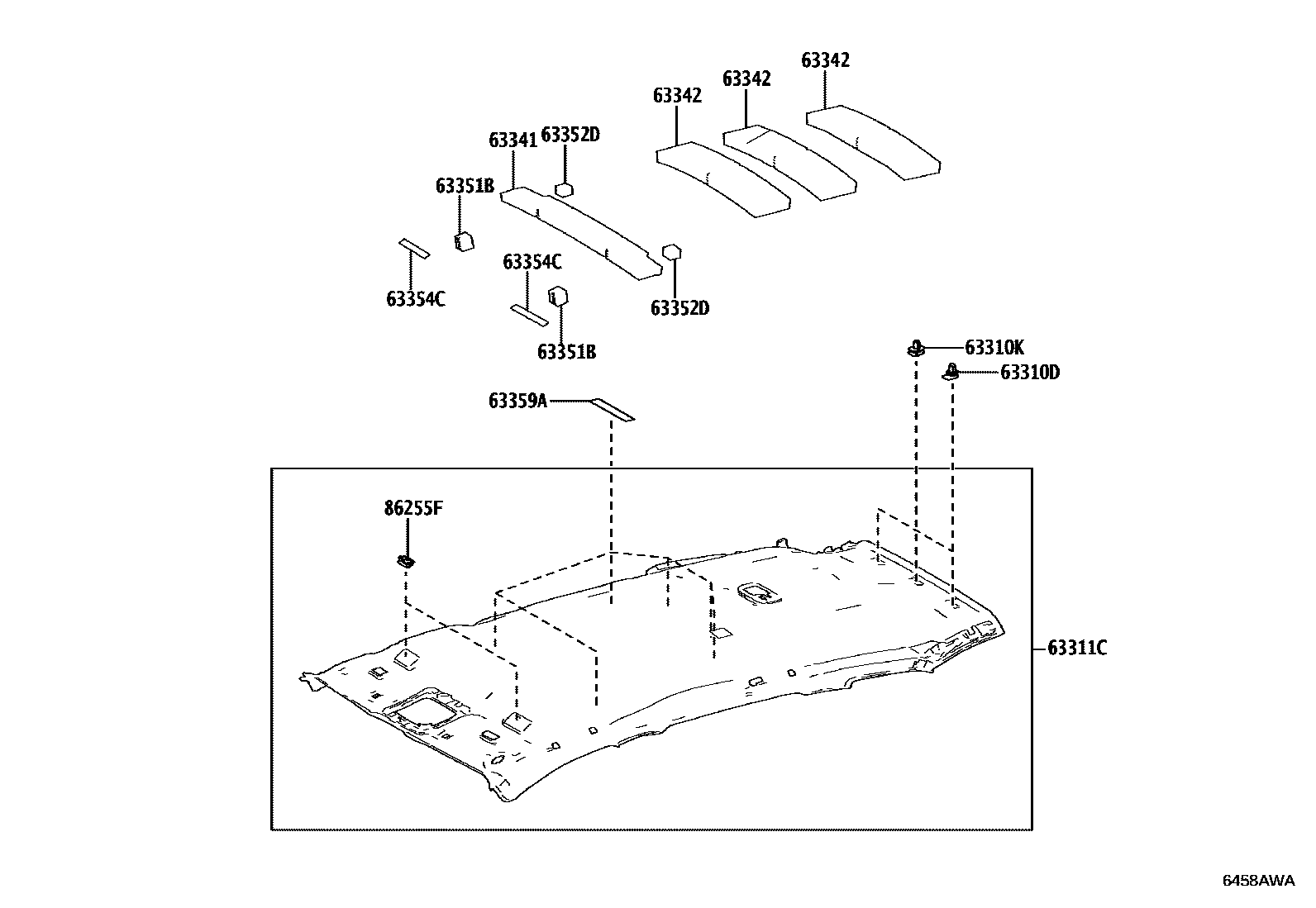

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1PANORAMA ROOF

63310DCLIP, ROOF HEADLINING

main90467-09126×2iAZSH38202405

63310KCLIP

main90467-10181iAZSH39202409

63311CHEADLINING, ROOF

main63311-30L10-C1supersedes 63311-30L20-C1iAZSH38..G; AZSH38..M202405

BLACK,TRIM2#,4#; MOON ROOF-WITHOUT,BLACK,TRIM2#,4#

63341PAD, ROOF SILENCER, NO.1

main63341-30390iAZSH38..G; AZSH38..M202405

MOON ROOF-WITHOUT

63342PAD, ROOF SILENCER, NO.2

main63341-30490×3iAZSH38..G; AZSH38..M202405

MOON ROOF-WITHOUT

63351BPAD, ROOF HEADLINING

main63351-30150×2iAZSH38..G; AZSH38..M202405

MOON ROOF-WITHOUT

63352DPAD, ROOF HEADLINING, NO.2

main63352-12120×2iAZSH38..G; AZSH38..M202405

MOON ROOF-WITHOUT

63354CPAD, ROOF HEADLINING FRONT SIDE

main63354-30060×2iAZSH38202405

63359APAD, ROOF SILENCER, NO.18

main63359-30010×6iAZSH38..G; AZSH38..M202405-202409

MOON ROOF-WITHOUT

86255FCASE, MICROPHONE

main86255-78020-C0×2iAZSH38202405

BLACK,TRIM2#,4#

10 parts on this diagram · 3 diagrams in section
