ROOF PANEL & BACK WINDOW GLASS

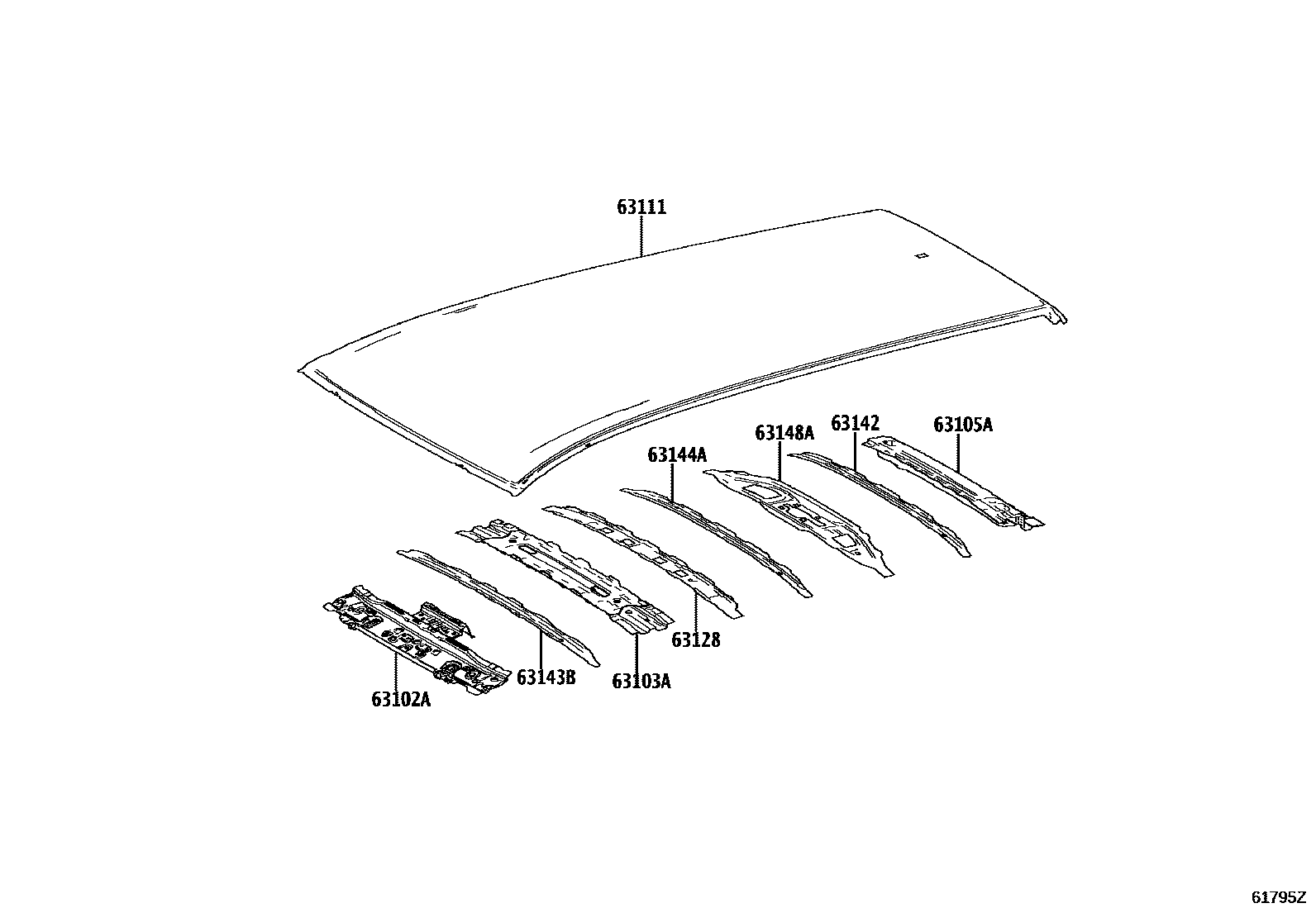

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(PANORAMA ROOF) 0003 1SLIDING ROOF HOUSING 0004 1ROOF RAIL(NORMAL ROOF) 0005 1ROOF RAIL(PANORAMA ROOF)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-30914supersedes 63102-30510iAZSH38..G202405

MOON ROOF-WITHOUT

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-30460supersedes 63103-30470iAZSH38..G; AZSH38..M202405

MOON ROOF-WITHOUT

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-30150iAZSH38202405

63111PANEL, ROOF

main63111-30B90iAZSH38..M202405

main63111-30B80iAZSH3#..G202405

MOON ROOF-WITHOUT

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-30190iAZSH3#..G; AZSH38..M202405

MOON ROOF-WITHOUT

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-30260iAZSH3#202405

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-30350iAZSH3#..G; AZSH38..M202405

MOON ROOF-WITHOUT

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30300iAZSH3#..G; AZSH38..M202405

MOON ROOF-WITHOUT

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-30230iAZSH3#..G; AZSH38..M202405

MOON ROOF-WITHOUT

9 parts on this diagram · 5 diagrams in section
