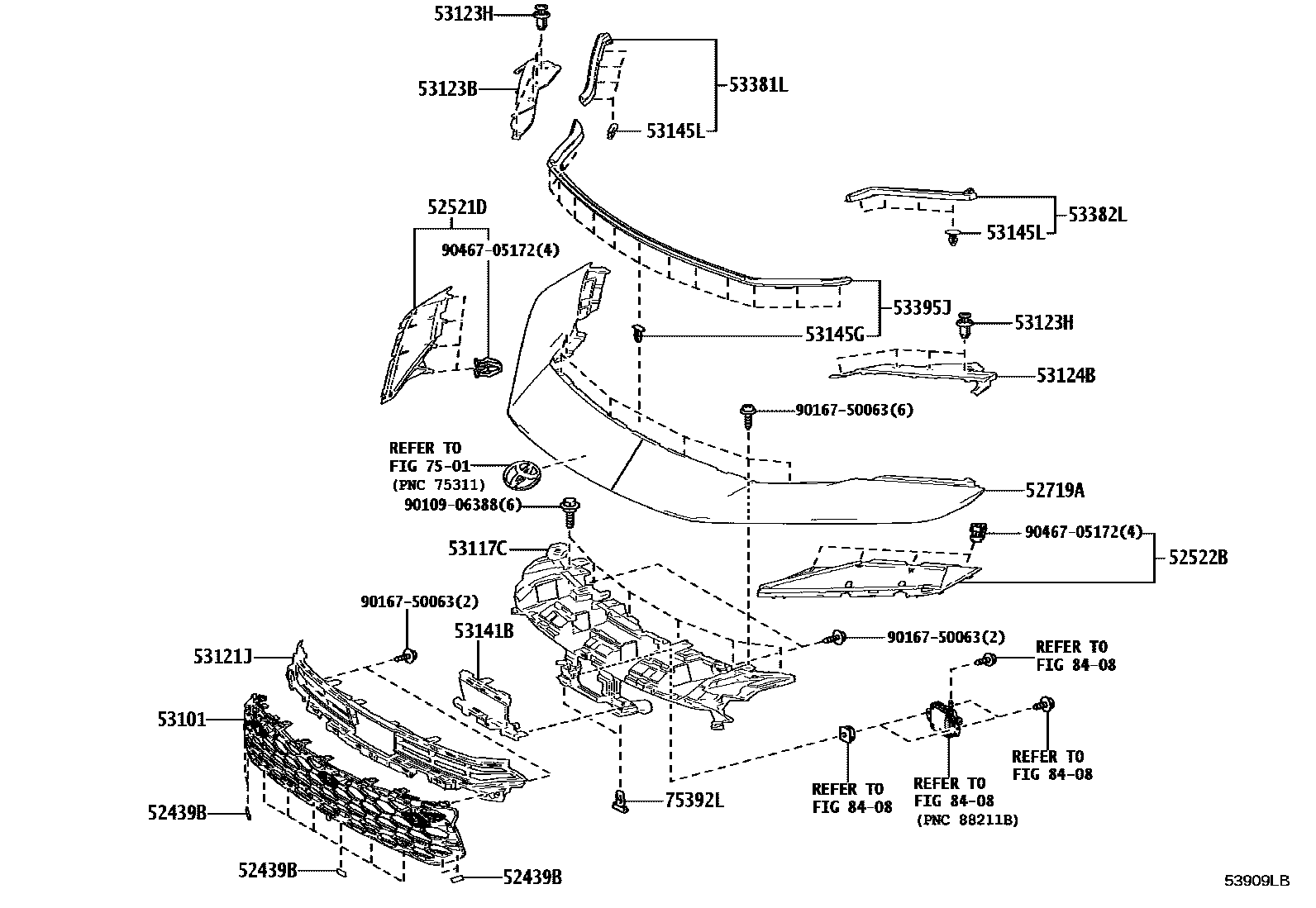

RADIATOR GRILLE

52439BTAPE, FRONT BUMPER GUARD PROTECTOR

main52439-30010×10iAZSH3#202405

52521DRETAINER, FRONT BUMPER FILLER, NO.1

main52521-30130iAZSH3#202405

52522BRETAINER, FRONT BUMPER FILLER, NO.2

main52522-30060iAZSH3#202405

52719ACOVER, FRONT BUMPER MOULDING

main52719-30905iAZSH3#202405

53101GRILLE SUB-ASSY, RADIATOR

main53101-30E90iAZSH38..M202405

NO PAINT REQ.

main53101-30F80iAZSH3#..G202405

NO PAINT REQ.

53117CRETAINER, RADIATOR GRILLE, NO.1

main53117-30330iAZSH3#202405

53121JMOULDING, RADIATOR GRILLE, NO.1

main53121-30380iAZSH3#202405

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-30190iAZSH3#202405

53123HCLIP, RADIATOR GRILLE SIDE MOULDING

main90467-05063-C0×8iAZSH3#202405

BLACK

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-30170iAZSH3#202405

53141BGARNISH, RADIATOR GRILLE, NO.1

main53141-30630iAZSH3#202405

53145GCLIP, RADIATOR GRILLE

main53145-60030×14iAZSH3#202405

53145LCLIP, RADIATOR GRILLE

main53145-60030×8iAZSH3#202405

53381LSEAL, HOOD TO RADIATOR SUPPORT, RH

main53381-30290iAZSH3#202405

53382LSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-30100iAZSH3#202405

53395JSEAL, HOOD TO FRONT END PANEL

main53395-30040iAZSH3#202405

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75392LRETAINER, OUTSIDE MOULDING

main75392-35220×2iAZSH3#202405

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9010906388

main90109-06388

9016750063

main90167-50063

9046705172

main90467-05172

22 parts on this diagram · 1 diagram in section
