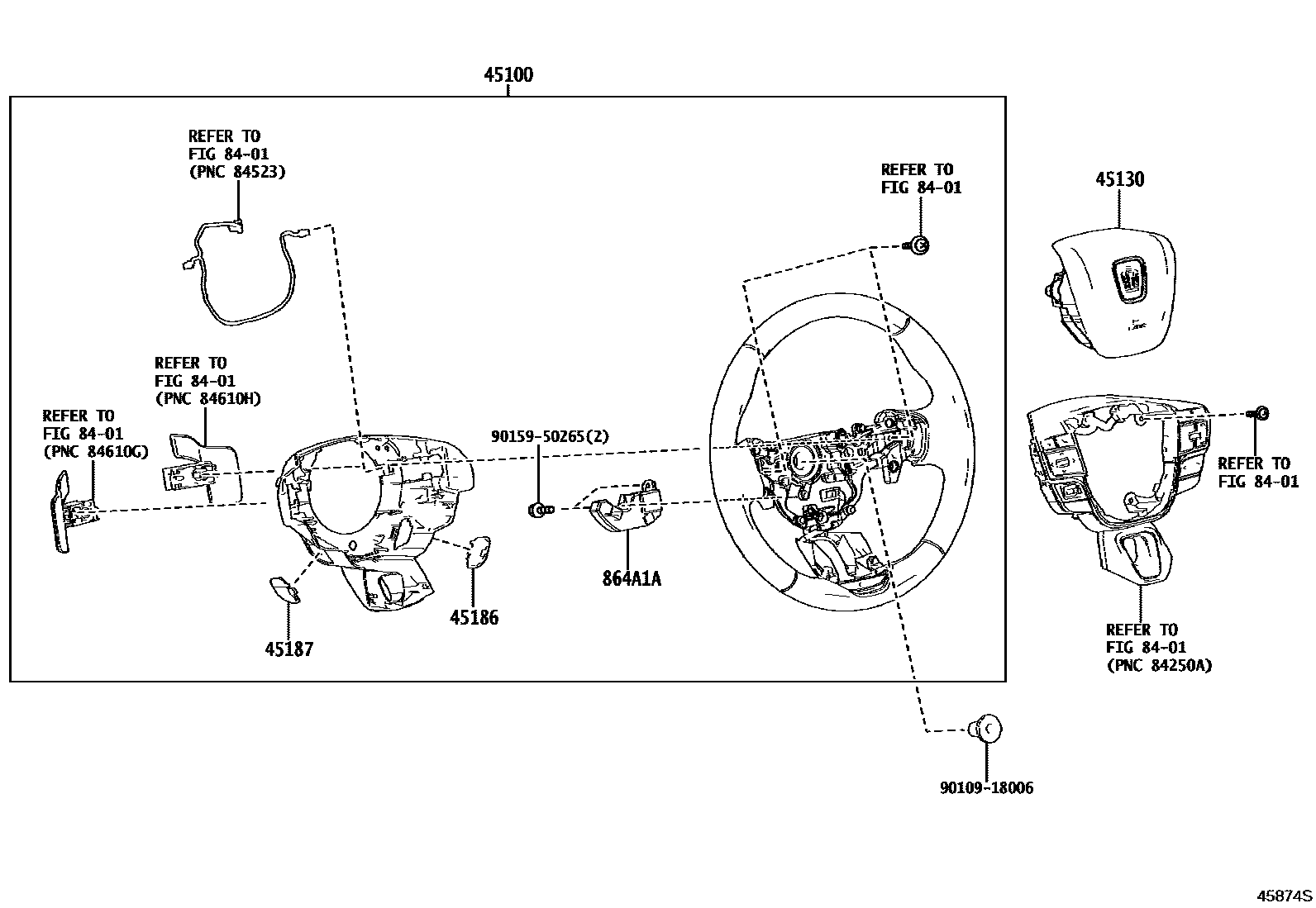

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-30J10-C1iAZSH38..G202405

3-SPOKE,LEATHER,BLACK/LT.GRAY/BLACK,TRIM0#,2#,4#

main45100-30J70-C2iAZSH39202409

3-SPOKE,LEATHER,BLACK/LT.GRAY/BLACK,TRIM2#,4#

main45100-33C40-C2iAZSH38..M202405

3-SPOKE,LEATHER,BLACK/LT.GRAY/BLACK,TRIM2#,4#

45130BUTTON ASSY, HORN

main45130-30820-C0iAZSH38..G; AZSH38..M202405

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-30200-C0iAZSH38..G; AZSH38..M202405

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30140-C0iAZSH38..G; AZSH38..M202405

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

main864A1-78040iAZSH38..G202405

9010918006

main90109-18006

9015950265

main90159-50265

8 parts on this diagram · 1 diagram in section
