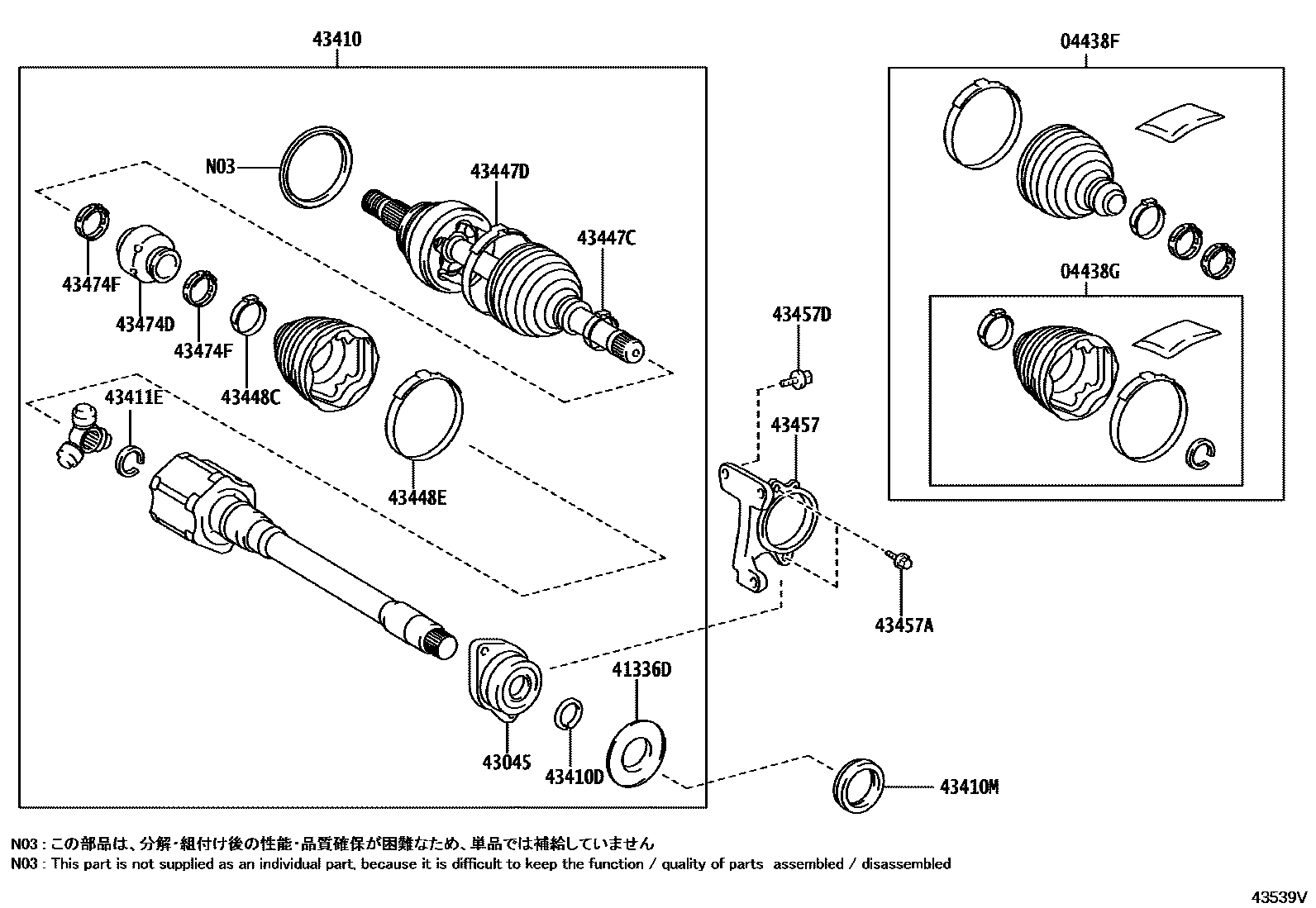

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-42211iAZSH38202405

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-48180iAZSH38202405

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-42020iAZSH38202405

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-64020iAZSH38202405

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-42391iAZSH38202405

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main43425-42030iAZSH38202405

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40046iAZSH38202405

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-42040iAZSH38202405

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-48240iAZSH38202405

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-48280iAZSH38202405

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-48240iAZSH38202405

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-48270iAZSH38202405

43457BRACKET, DRIVE SHAFT BEARING

main43457-33050iAZSH38202405

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361×2iAZSH38202405

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iAZSH38202405

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-42070iAZSH38202405

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-42240×2iAZSH38202405

17 parts on this diagram · 2 diagrams in section
