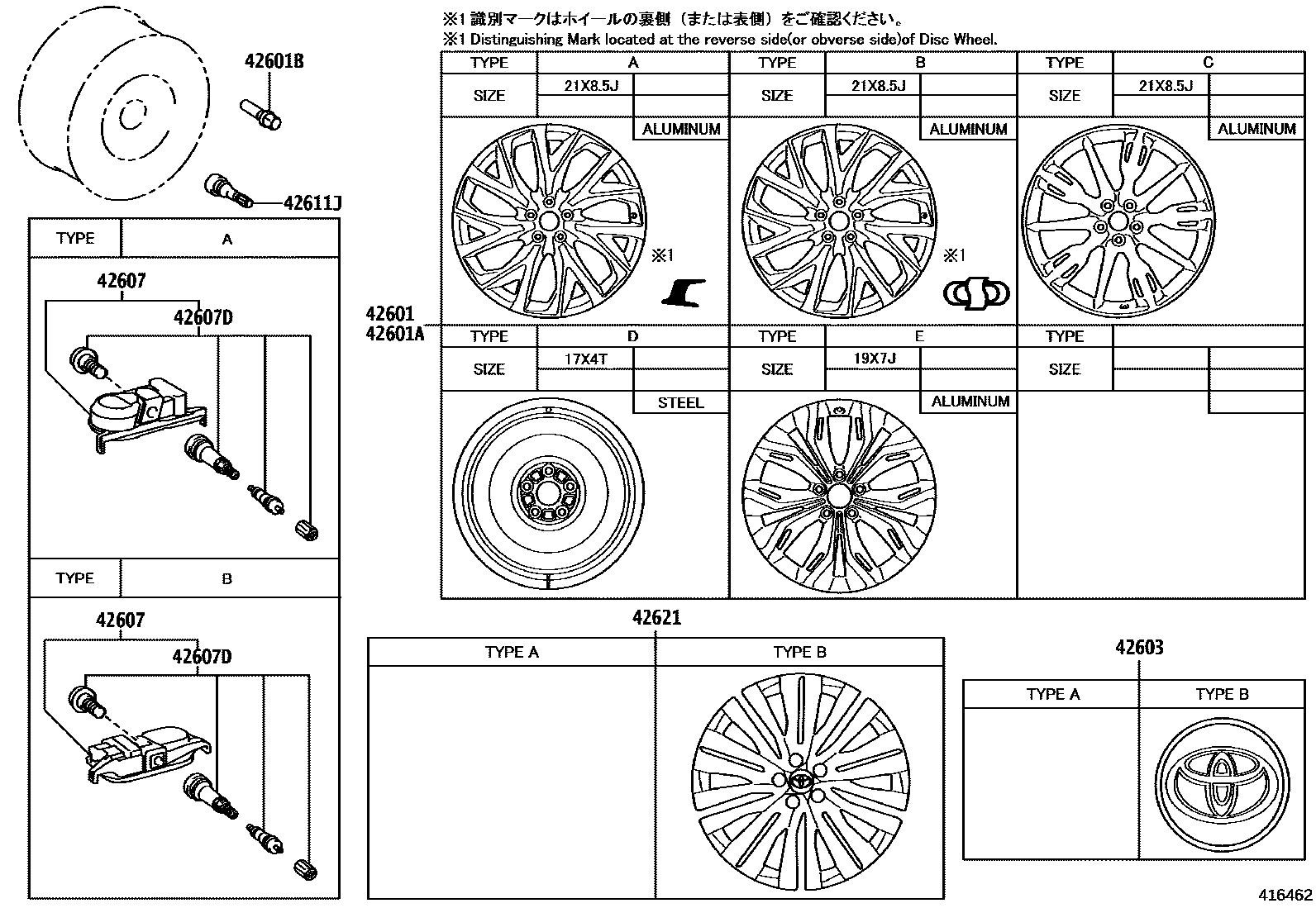

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-30K60iAZSH38..M202405

19X7J, #,TYPE E:REFER ILLUST.

main42611-30L50iAZSH39202409

21X8.5J,#,TYPE C:REFER ILLUST.

main42611-30M50iAZSH38..G202405

21X8.5J,#,TYPE A:REFER ILLUST.

main42611-30M60iAZSH38..G202405

21X8.5J,#,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

42601BBOLT, HUB (FOR AXLE)

main90942-02103iAZSH3#202405

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42170iAZSH38202405

*ALU,TYPE B:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-42050iAZSH38..M202405

TYPE B:REFER ILLUST.

main42607-47020iAZSH3#..G202405

TYPE A:REFER ILLUST.

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05043iAZSH38..M202405

TYPE B:REFER ILLUST.

main90942-05047iAZSH3#..G202405

TYPE A:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

42621CAP, WHEEL

main42602-30111iAZSH39202409

TYPE B:REFER ILLUST.

8 parts on this diagram · 2 diagrams in section
