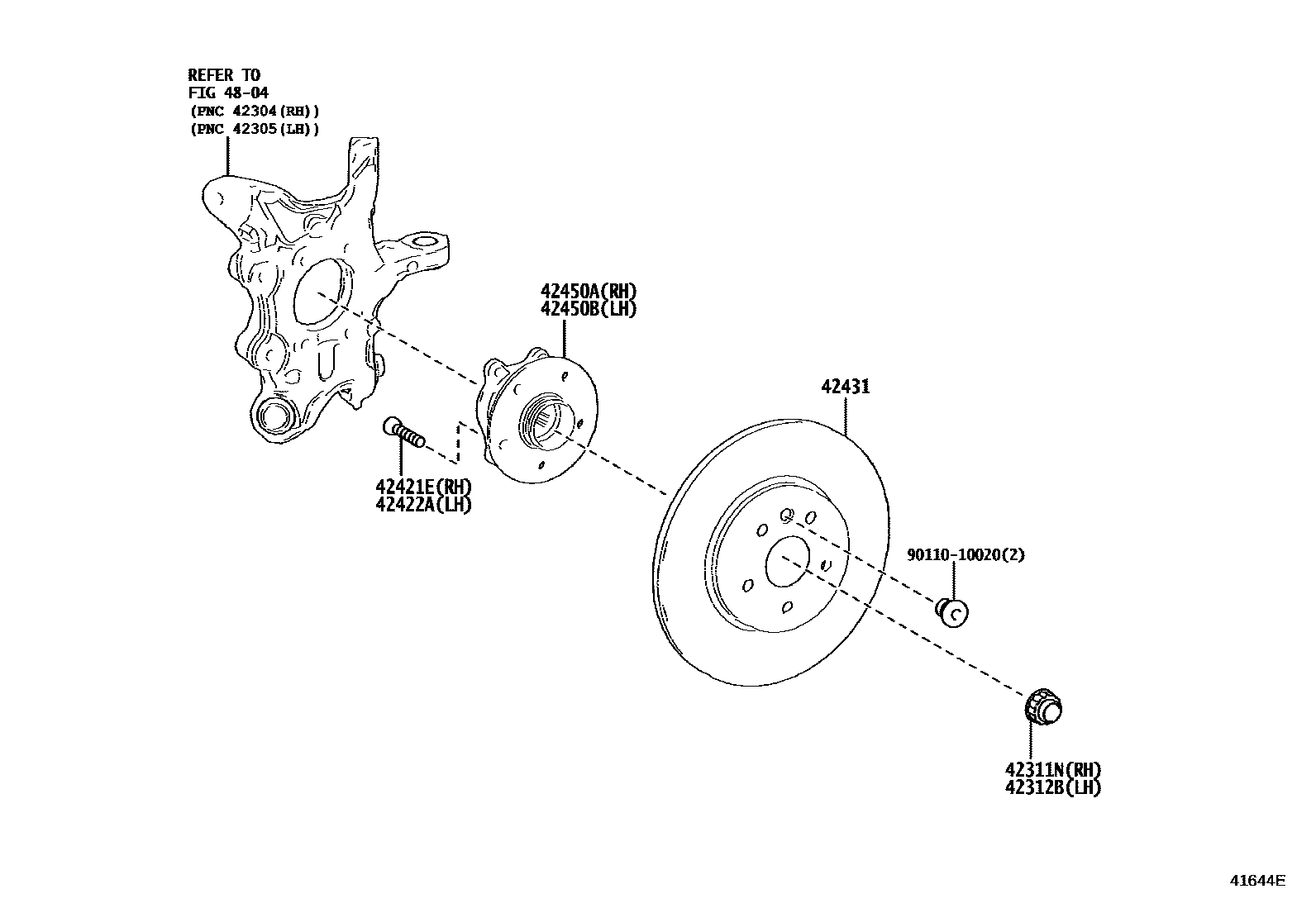

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-22001iAZSH3#202405

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-22001iAZSH3#202405

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12017×4iAZSH3#202405

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12017×4iAZSH3#202405

42431DISC, REAR

main42431-48100×2iAZSH39202409

main42431-78030×2iAZSH38202405

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30070iAZSH38202405

main42410-48080iAZSH39202409

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30070iAZSH38202405

main42410-48080iAZSH39202409

4804

9011010020

main90110-10020

9 parts on this diagram · 2 diagrams in section
