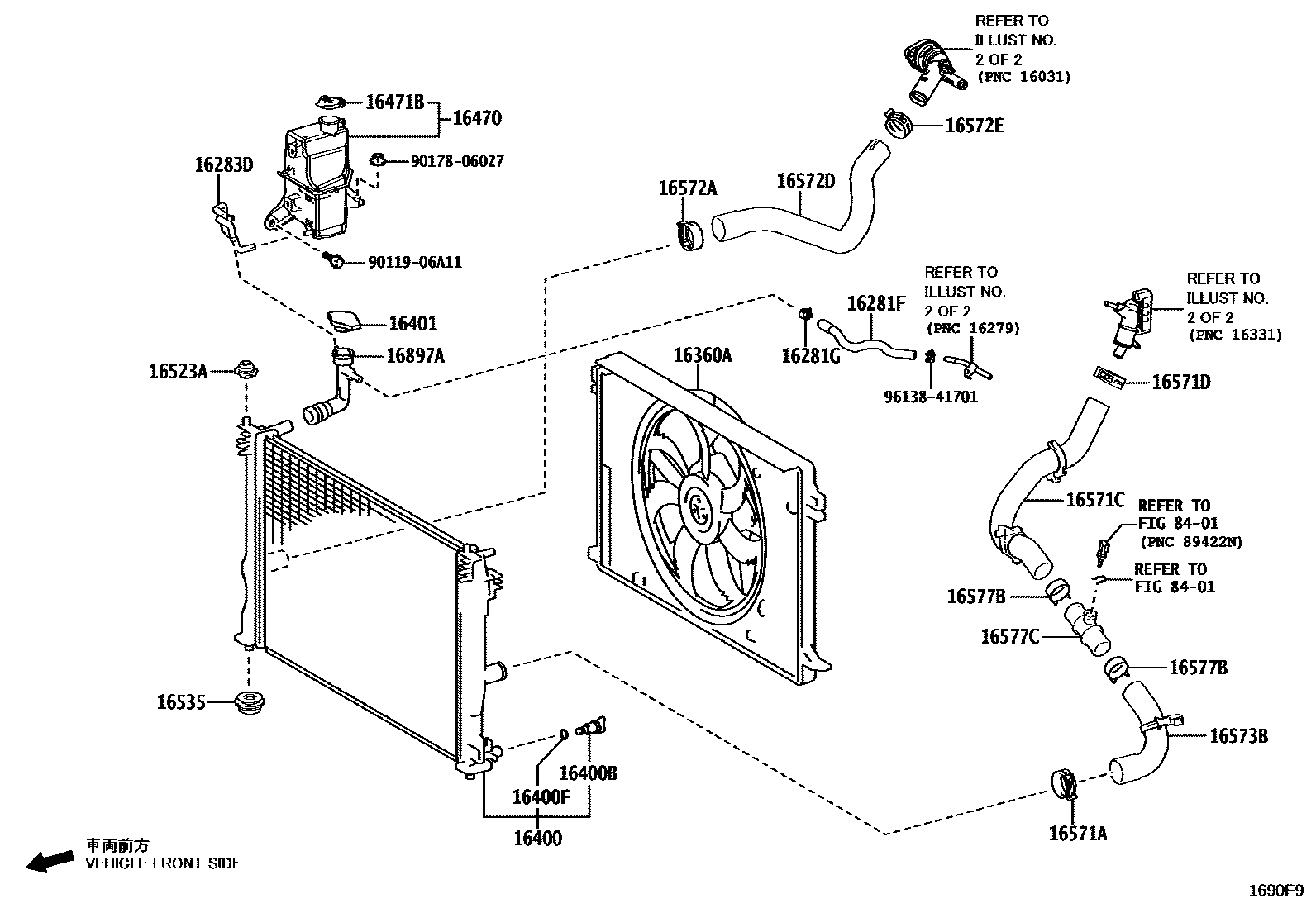

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1ENGINE SIDE 0004 1ENGINE SIDE

16281HOSE, WATER BY-PASS, NO.4

main99555-10200iA25..AZSH38202405

16281FHOSE, WATER BY-PASS, NO.5

main16282-25210iA25..AZSH38202405

main16282-25240iA25..AZSH39202409

16281GCLIP(FOR WATER BY-PASS HOSE NO.5)

main96138-41901iA25..AZSH38202405

16283HOSE, WATER BY-PASS, NO.6

main16283-25020iA25..AZSH38202405

16283DHOSE, WATER BY-PASS, NO.6

main16283-25150iA25..AZSH38202405

main16283-25190iA25..AZSH39202409

16360AFAN ASSY, W/MOTOR

main16360-25030iA25..AZSH38202405

16400RADIATOR ASSY

main16400-25130iA25..AZSH38202405

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280iA25..AZSH38202405

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iA25..AZSH38202405

16401CAP SUB-ASSY, RADIATOR

main16401-36030iA25..AZSH38202405

16470TANK ASSY, RADIATOR RESERVE

main16470-25050iA25..AZSH38202405

16471BCAP, RESERVE TANK

main16471-23010iA25..AZSH38202405

16523ACUSHION, RADIATOR SUPPORT

main16523-25010iA25..AZSH39202405

16535SUPPORT, RADIATOR, LOWER

main16535-28030iA25..AZSH38202405

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002iA25..AZSH38202405

16571CHOSE, RADIATOR, NO.1

main16571-25270iA25..AZSH38202405

16571DCLIP, RADIATOR HOSE, NO.1

main90466-43002iA25..AZSH38202405

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002iA25..AZSH38202405

16572DHOSE, RADIATOR, NO.2

main16572-25200iA25..AZSH39202405

16572ECLIP, RADIATOR HOSE, NO.2

main90466-43002iA25..AZSH38202405

16573BHOSE, RADIATOR, NO.3

main16573-25200iA25..AZSH38202405

16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)

main90466-43002iA25..AZSH38202405

16577CPIPE, RADIATOR

main16577-25040iA25..AZSH38202405

16897ANECK, FILLER

main16897-25041iA25..AZSH39202409

main16897-25091iA25..AZSH38202405

8401

9011906A11

main90119-06A11

9017806027

main90178-06027

9613841701

main96138-41701

28 parts on this diagram · 4 diagrams in section
