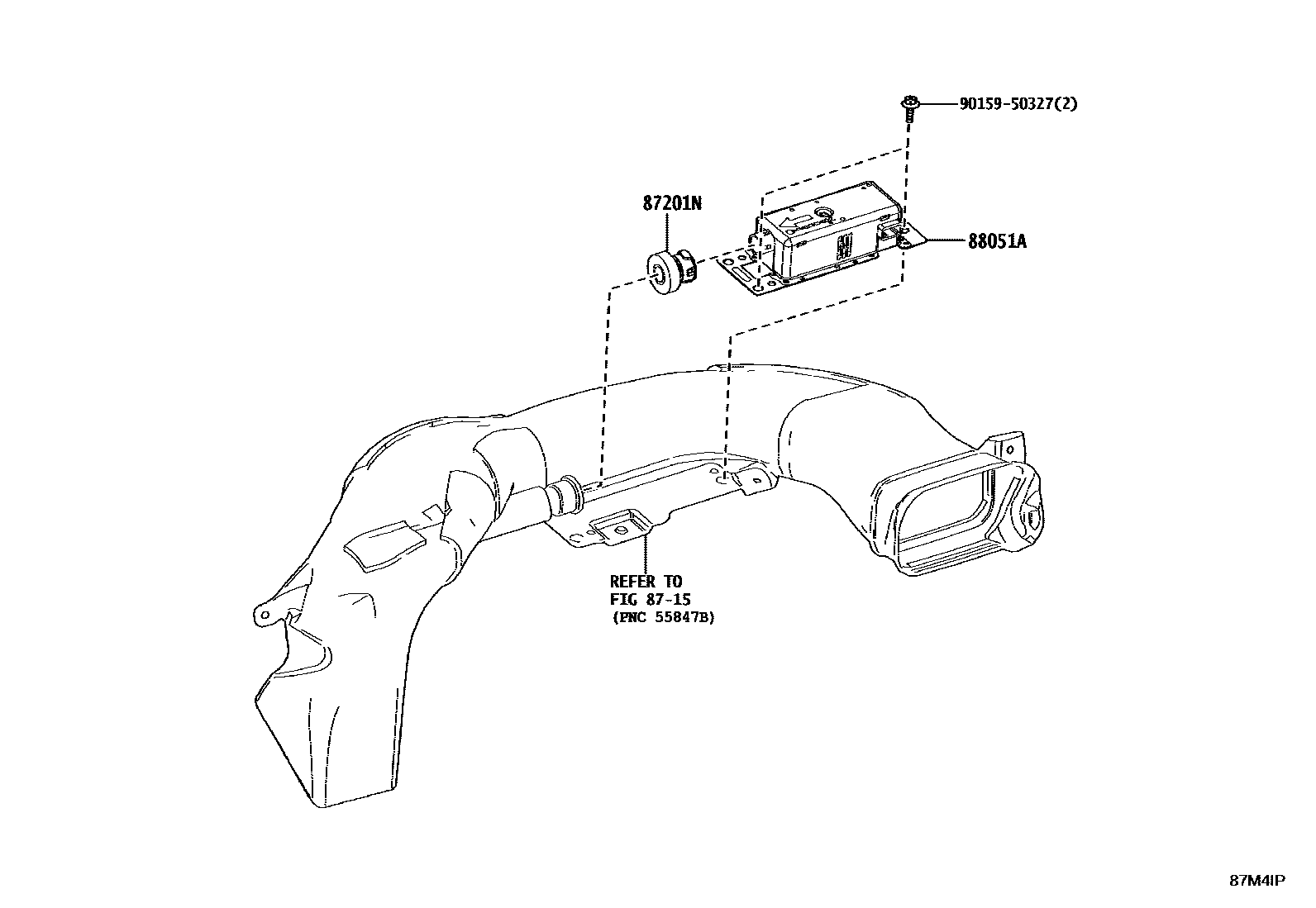

AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-50010iAZSH32202405

88051AGENERATOR SUB-ASSY,ION

main88051-48010iAZSH32202405

9015950327

main90159-50327

4 parts on this diagram · 1 diagram in section
