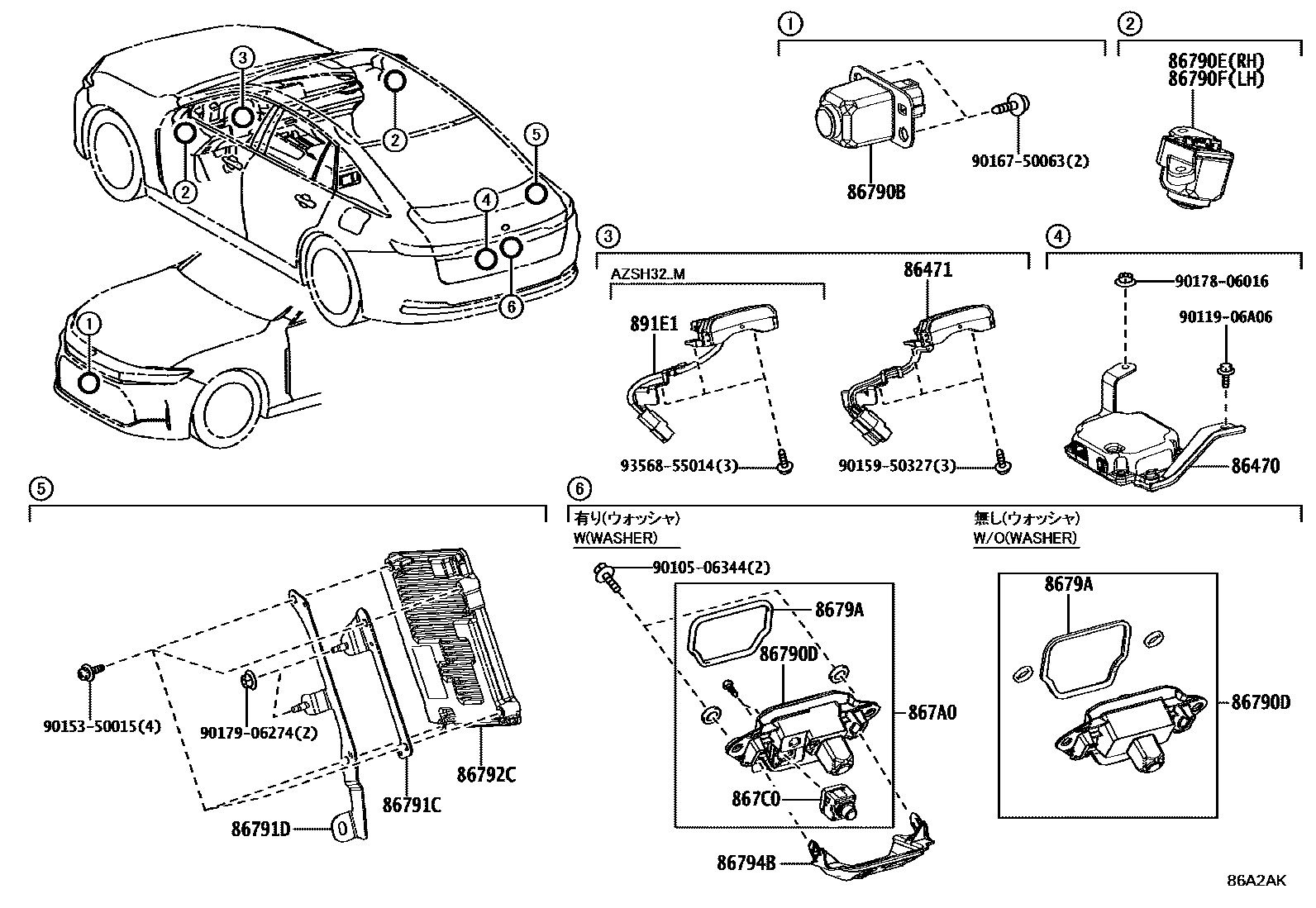

CAMERA & REAR MONITOR DISPLAY

86470COMPUTER ASSY, DRIVER MONITOR

main86470-30110iAZSH32..M202405

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR CAMERA)

86471CAMERA, DRIVER MONITOR

main86471-30040iAZSH32..M202405

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR CAMERA)

86790BCAMERA ASSY, TELEVISION, FR

main86790-30510iAZSH32..M202405

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86790DCAMERA ASSY, TELEVISION, RR

main86790-30570iAZSH32..G202405

main86790-30500supersedes 867B0-30140iAZSH32..M202405

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-30310iAZSH32..M202405

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-30320iAZSH32..M202405

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-30150iAZSH32..M202405

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-30160iAZSH32..M202405

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86792CCOMPUTER, PARKING ASSIST

main86792-30580iAZSH32..M202405

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86794BCOVER, TELEVISION CAMERA

main86794-30040iAZSH32..M202405

main86794-30050iAZSH32..G202405

8679ASEAL, TELEVISION CAMERA

main8679A-30010iAZSH32202405

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-30100iAZSH32..G202405

867C0CAMERA ASSY, INNER MIRROR

main867C0-62030iAZSH32..G202405

891E1CAMERA, CABIN OBJECT RECOGNITION

main891E1-0W010

9010506344

main90105-06344

9011906A06

main90119-06A06

9015350015

main90153-50015

9015950327

main90159-50327

9016750063

main90167-50063

9017806016

main90178-06016

9017906274

main90179-06274

9356855014

main93568-55014

22 parts on this diagram · 1 diagram in section
