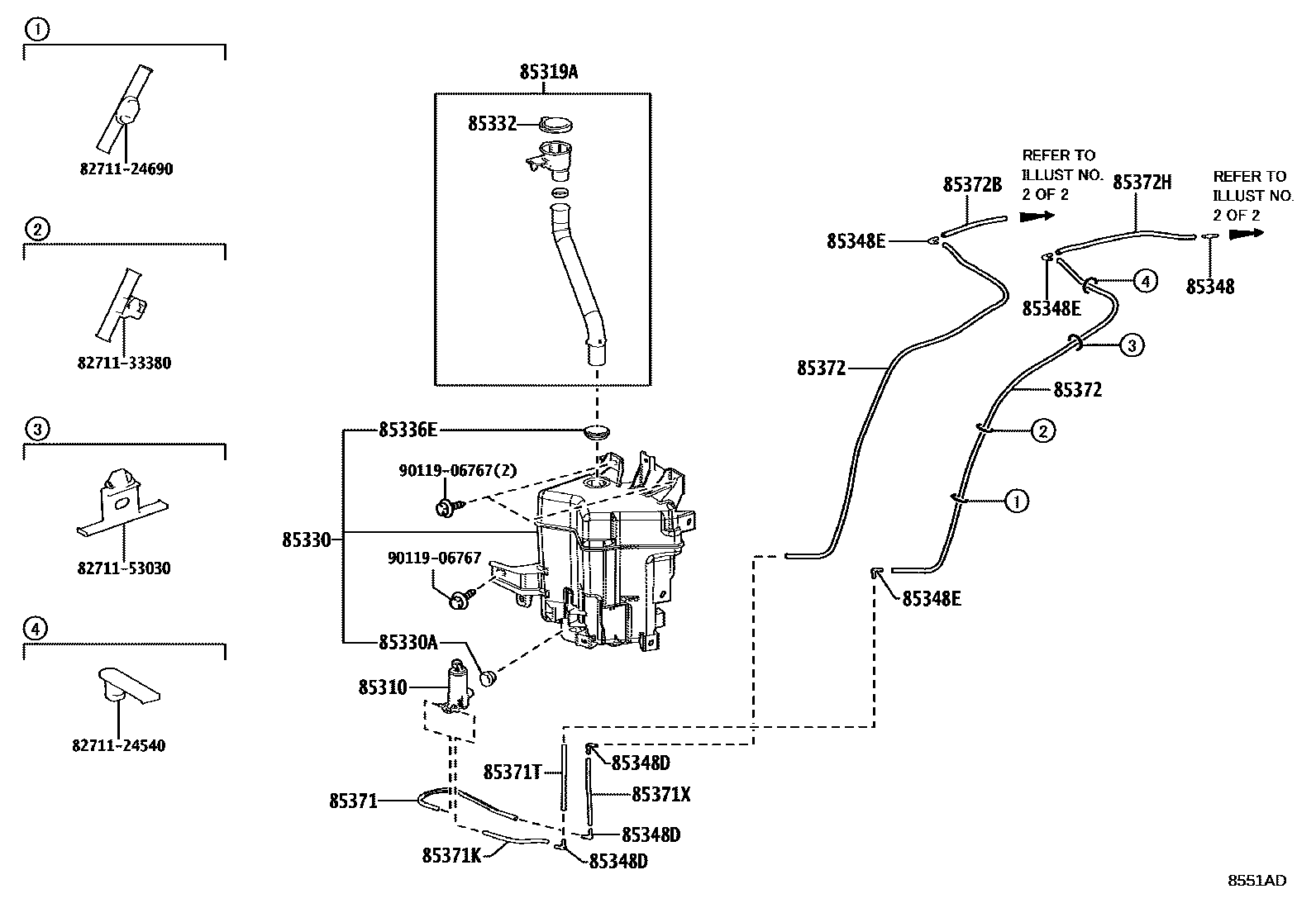

WINDSHIELD WASHER

0001 1 0002 1W(REAR CAMERA CLEANER) 0003 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-11040iAZSH32202405

85319AHOSE, INLET

main85301-62010iAZSH32202405

85330JAR ASSY, WINDSHIELD WASHER

main85315-62040iAZSH32..M202405

main85315-62060iAZSH32..G202405

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAZSH32202405

85332CAP, WINDSHIELD WASHER JAR

main85316-62010iAZSH32202405

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iAZSH32202405

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iAZSH32202405

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iAZSH32202405

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200iAZSH32202405

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iAZSH32202405

L=1450(*H,L=360)

85371KHOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iAZSH32202405

L=1450(*H,L=125)

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90099-33080iAZSH32202405

L=1450(*H,L=125)

85371XHOSE, WINDSHIELD WASHER(FROM JOINT TO TOINT)

main90099-33080iAZSH32202405

L=1450(*H,L=120)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iAZSH32202405

L=1450(*H,L=1000)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iAZSH32..M202405

L=1450(*H,L=90)

main90099-33080iAZSH32..M202405

L=1450(*H,L=130)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iAZSH32..M202405

L=1450(*H,L=230)

main90099-33080iAZSH32..M202405

L=1450(*H,L=270)

8271124540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24540

8271124690WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24690

8271133380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33380

8271153030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-53030

9011906767

main90119-06767

21 parts on this diagram · 3 diagrams in section
