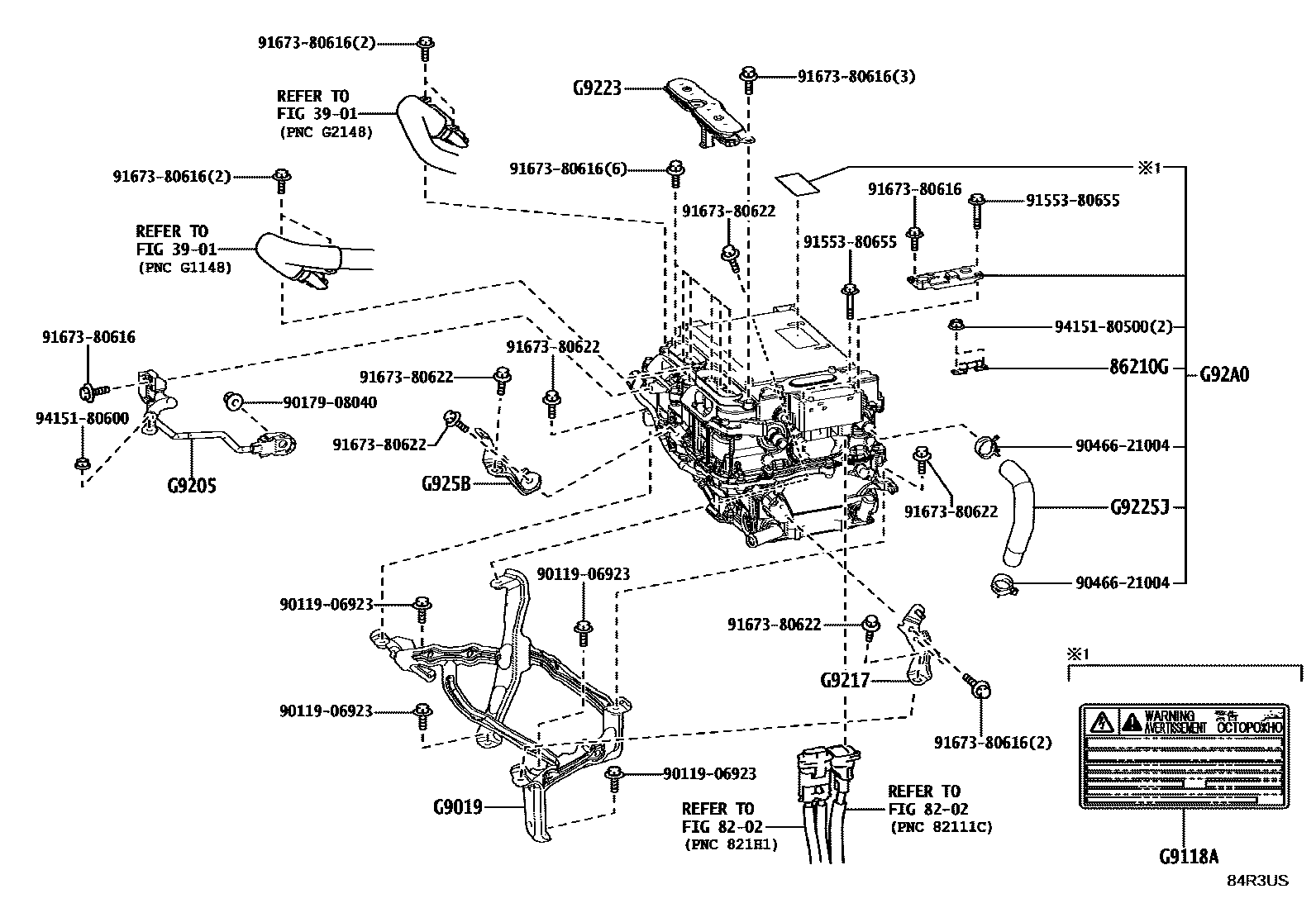

HEV INVERTER

0001 1 0002 1

3901

8202

86210GFUSE, HIGH VOLTAGE

main90982-11050iAZSH32202405

G9019BRACKET SUB-ASSY, INVERTER TRAY

mainG901911040iAZSH32202405

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911876010iAZSH32202405

G9205PLATE SUB-ASSY, INVERTER BUS-BAR

mainG920511010iAZSH32202405

G9217BRACKET, INVERTER, NO.4

mainG921730040iAZSH32202405

G9223COVER, INVERTER TERMINAL

mainG922311010iAZSH32202405

G9225JHOSE, INVERTER COOLING, NO.1

mainG922530210iAZSH32202405

G925BBRACKET, INVERTER, NO.6

mainG925B11020iAZSH32202405

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A030160iAZSH32202405

9011906923

main90119-06923

9017908040

main90179-08040

9046621004

main90466-21004

9155380655

main91553-80655

9167380616

main91673-80616

9167380622

main91673-80622

9415180500

main94151-80500

9415180600

main94151-80600

19 parts on this diagram · 2 diagrams in section
