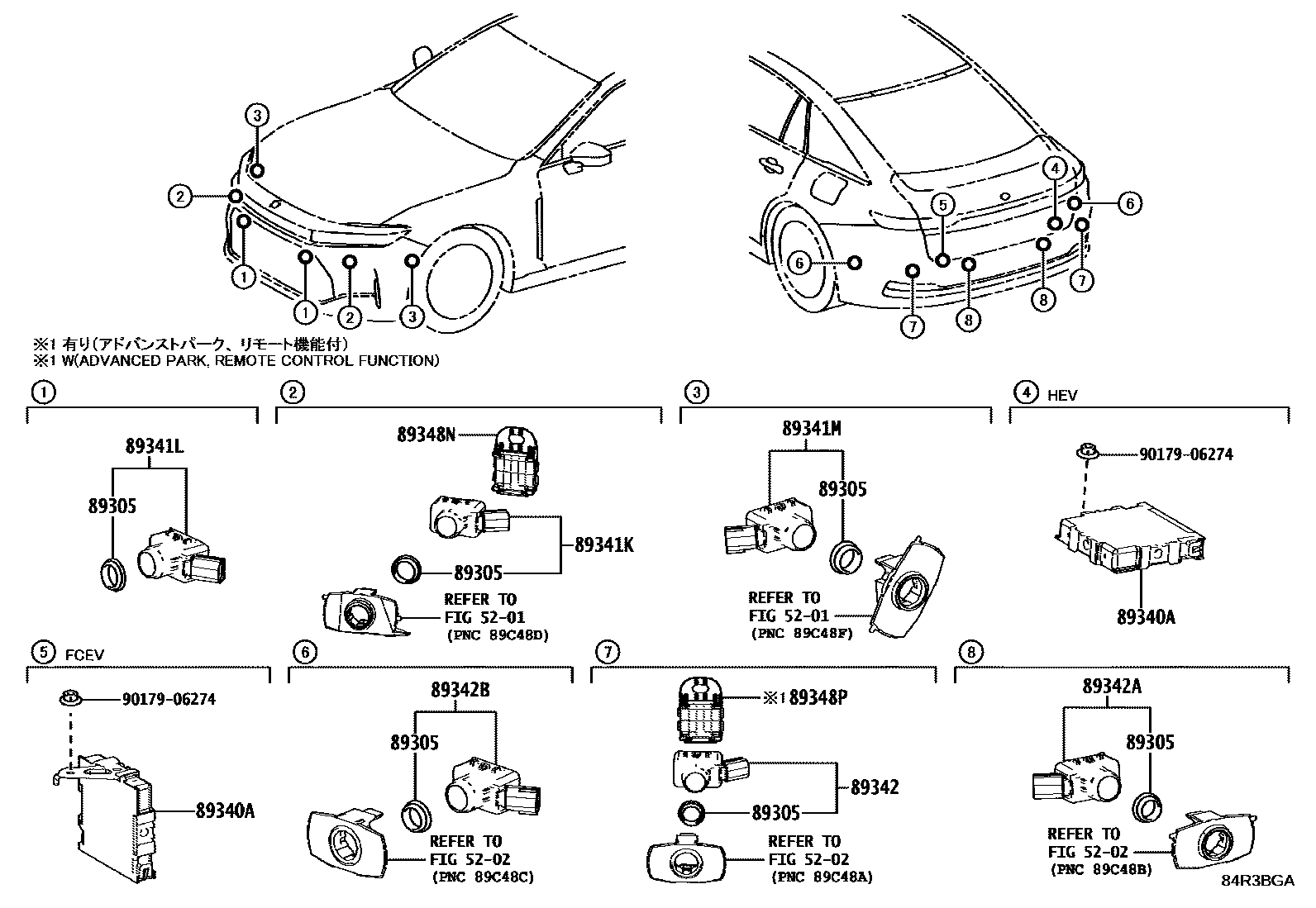

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
PRECIOUS BLACK,219
PRECIOUS BRONZE,4Y6
PRECIOUS METAL,1L5
MASSIVE GRAY,1L6
89341LSENSOR, ULTRASONIC, FRONT CENTER
DUMMY-MAT BLACK
89341MSENSOR, ULTRASONIC, FRONT SIDE
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
PRECIOUS BLACK,219
PRECIOUS BRONZE,4Y6
PRECIOUS METAL,1L5
MASSIVE GRAY,1L6
89342SENSOR, ULTRASONIC, REAR CORNER
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
PRECIOUS BLACK,219
PRECIOUS BRONZE,4Y6
PRECIOUS METAL,1L5
MASSIVE GRAY,1L6
89342ASENSOR, ULTRASONIC, REAR CENTER
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
PRECIOUS BLACK,219
PRECIOUS BRONZE,4Y6
PRECIOUS METAL,1L5
MASSIVE GRAY,1L6
89342BSENSOR, ULTRASONIC, REAR SIDE
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
PRECIOUS BLACK,219
PRECIOUS BRONZE,4Y6
PRECIOUS METAL,1L5
MASSIVE GRAY,1L6
89348NCLIP, ULTRASONIC SENSOR, NO.1
89348PCLIP, ULTRASONIC SENSOR, NO.2
9017906274
main90179-06274
13 parts on this diagram · 1 diagram in section
