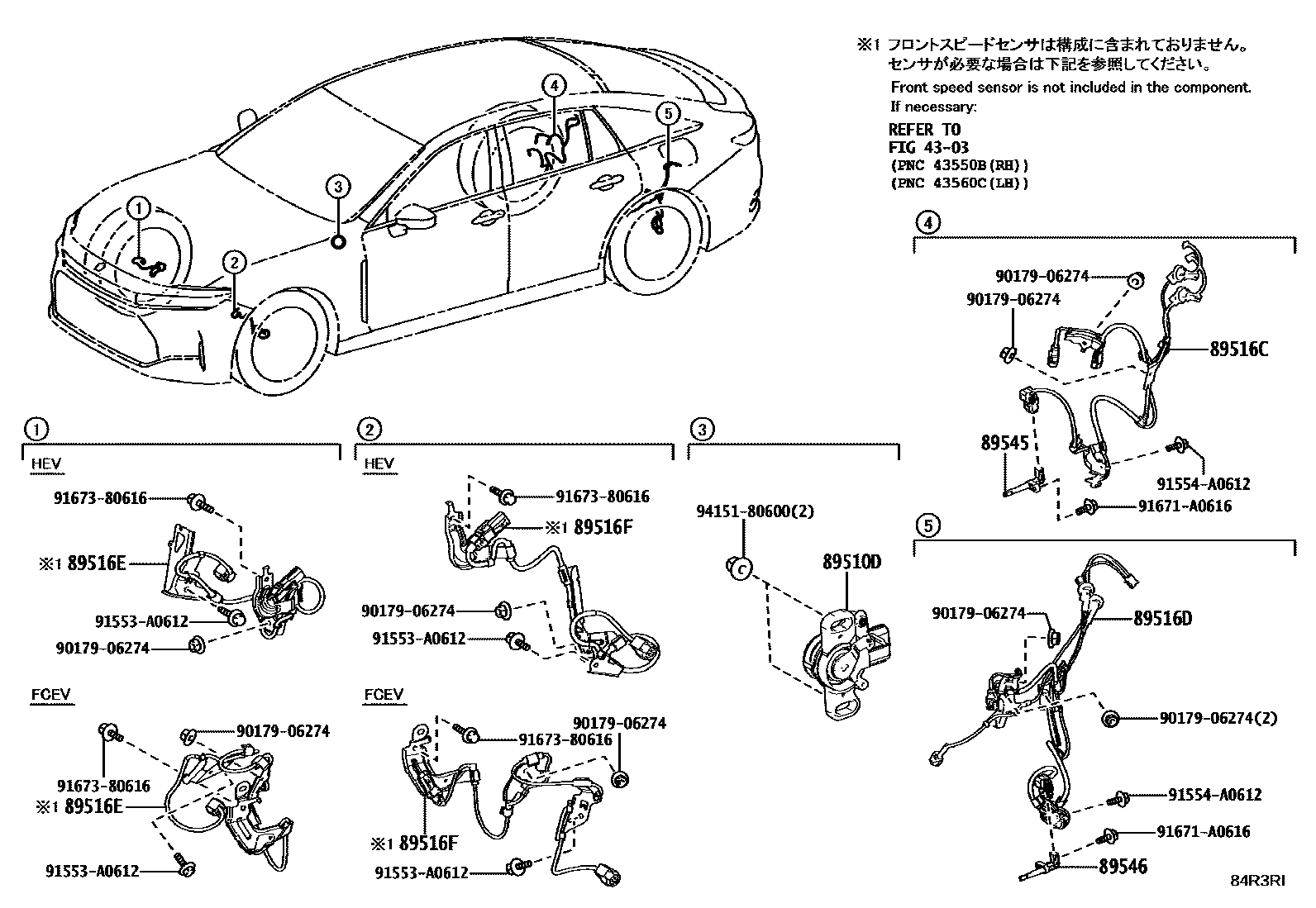

ABS & VSC

4303FRONT AXLE HUB

→ Go to FIG 43-03

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iAZSH32202405

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-30270iAZSH32202405

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-50230iAZSH32202405

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-30260iAZSH32202405

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-11020iAZSH32202405

89545SENSOR, SPEED, REAR RH

main89545-30070iAZSH32202405

89546SENSOR, SPEED, REAR LH

main89546-30070iAZSH32202405

9017906274

main90179-06274

91553A0612

main91553-A0612

91554A0612

main91554-A0612

91671A0616

main91671-A0616

9167380616

main91673-80616

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
