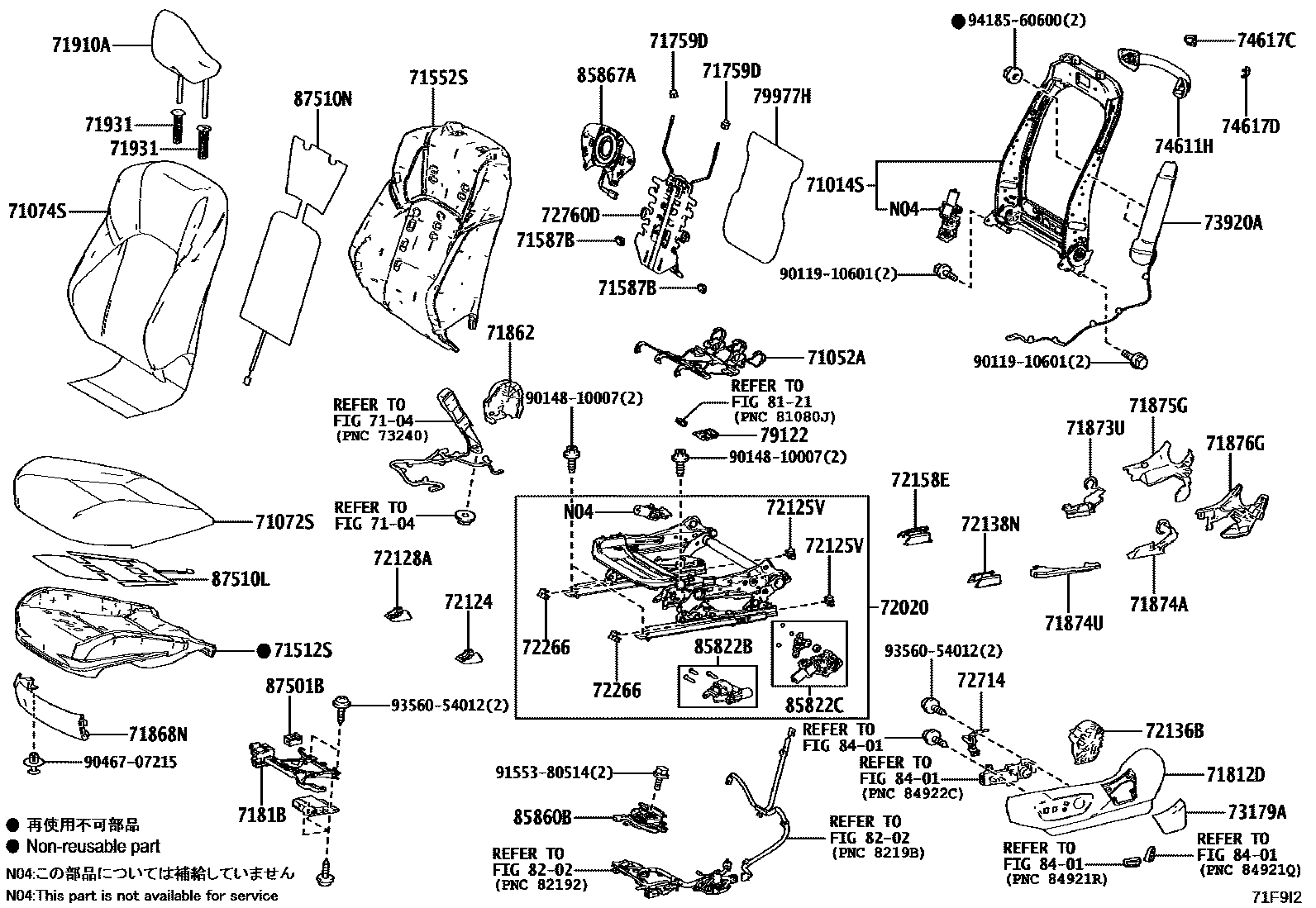

FRONT SEAT & SEAT TRACK

0001 1DRIVER,W(POWER SEAT) 0002 1PASSENGER,W(4WAY POWER SEAT) 0003 1PASSENGER,W(8WAY POWER SEAT)

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-62110iAZSH32..G202405

main71014-62120iAZSH32..G202405

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-11010iAZSH32202405

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-30T10-C5iAZSH32..G202405

BLACK/LT.GRAY,TRIM2#

main71072-30T10-E3iAZSH32..G202405

MD.BROWN,TRIM4#

main71072-30T20-C4iAZSH32..G202405

BLACK/LT.GRAY,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-30W30-C3iAZSH32..G202405

BLACK,TRIM2#

main71074-30W40-C4iAZSH32..G202405

BLACK,TRIM2#

main71074-30W40-E3iAZSH32..G202405

MD.BROWN,TRIM4#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-30830iAZSH32..G202405

main71512-30840iAZSH32..G202405

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-30B20iAZSH32..G202405

main71552-30B60iAZSH32..G202405

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010×2iAZSH32..G202405

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-47010×2iAZSH32202405

71759DHOOK, FRONT SEATBACK, NO.2

main71759-50040×2iAZSH32202405

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-62020-C0iAZSH32..G202405

BLACK,TRIM2#,4#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-11010iAZSH32202405

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-62020-C0iAZSH32..G202405

BLACK,TRIM2#,4#

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-30260-C0iAZSH32..G202405

BLACK,TRIM2#,4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-33150iAZSH32..G202405

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-62020iAZSH32202405

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-62010iAZSH32..G202405

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-33120iAZSH32202405

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47090iAZSH32202405

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-62020-C0iAZSH32..G202405

BLACK,TRIM2#,4#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-47040-C1iAZSH32..G202405

BLACK,TRIM2#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-30M70-C2iAZSH32..G202405

BLACK/LT.GRAY,TRIM2#

main71910-30M70-E2iAZSH32..G202405

MD.BROWN,TRIM4#,FOR LH SEAT

main71910-30M80-C2iAZSH32..G202405

BLACK/LT.GRAY,TRIM2#,FOR RH SEAT

main71910-30M80-E2iAZSH32..G202405

MD.BROWN,TRIM4#,FOR RH SEAT

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5iAZSH32..G202405

W(LOCK),BLACK,TRIM2#

main71931-47030-C4iAZSH32..G202405

W/O(LOCK),BLACK,TRIM2#,4#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-62050iAZSH32202405

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-50020-C0iAZSH32202405

BLACK

72125VCOVER, SEAT TRACK, UPPER REAR LH

main72125-47020×2iAZSH32202405

sub72125-47010

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-50020-C0iAZSH32202405

BLACK

72136BSPACER, SEAT TRACK, LOWER NO.3

main72136-30150iAZSH32202405

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-47060iAZSH32202405

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-47080iAZSH32202405

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-47020×2iAZSH32202405

72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-47010iAZSH32202405

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-33140iAZSH32..G202405

main72750-33150iAZSH32..G202405

73179ACAP, SEAT BELT ANCHOR COVER, LH

main73179-62010-C0iAZSH32..G202405

BLACK,TRIM2#,4#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-12090iAZSH32202405

74611HGRIP, ASSIST

main74607-30060-C0×2iAZSH32..G202405

BLACK,TRIM2#

main74607-30060-E0×2iAZSH32..G202405

MD.BROWN,TRIM4#

74617CPLUG, ASSIST GRIP

main74617-30090-C0×2iAZSH32..G202405

BLACK,TRIM2#,40,41

main74617-30090-E1×2iAZSH32..G202405

MD.BROWN,TRIM40,41

74617DPLUG, ASSIST GRIP

main74618-30040-C0×2iAZSH32..G202405

BLACK,TRIM2#,40,41

main74618-30040-E1×2iAZSH32..G202405

MD.BROWN,TRIM40,41

79122BRACKET, FRONT SEAT CUSHION, LH

main79122-60010iAZSH32202405

79977HFELT, FRONT SEATBACK, LH

main79977-33030iAZSH32202405

8121

8202

8401

85822BMOTOR ASSY, POWER SEAT TILT, LH

main85801-50130iAZSH32202405

85822CMOTOR ASSY, POWER SEAT LIFTER, LH

main85801-33070iAZSH32202405

85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

main85802-42020iAZSH32..G202405

85867ABLOWER, SEATBACK CLIMATE CONTROL, LH

main85867-30040iAZSH32..G202405

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-33010iAZSH32202405

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-30610iAZSH32202405

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-30350iAZSH32202405

9011910601

main90119-10601

9014810007

main90148-10007

9046707215

main90467-07215

9155380514

main91553-80514

9356054012

main93560-54012

9418560600

main94185-60600

56 parts on this diagram · 3 diagrams in section
