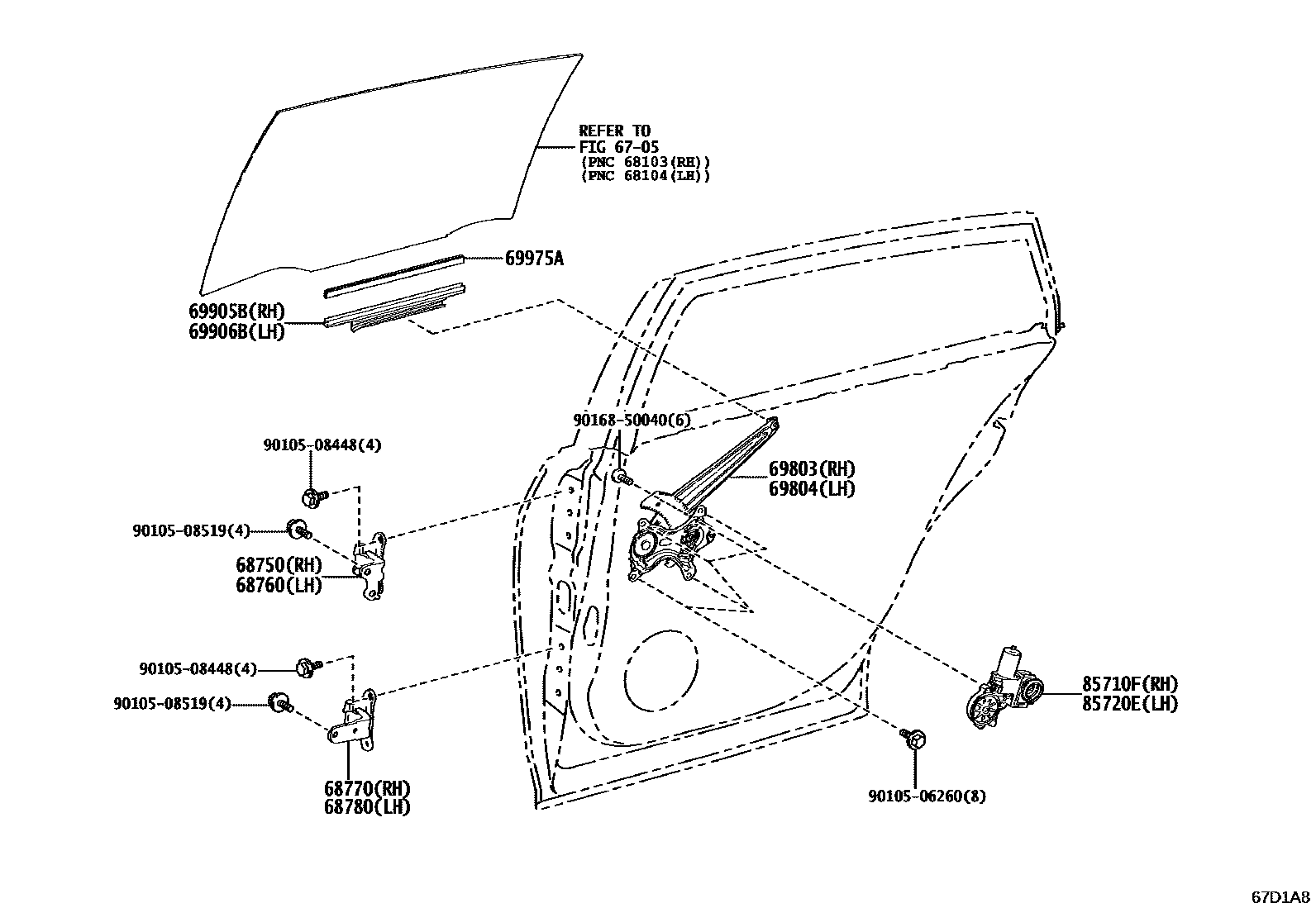

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-76020iAZSH32202405

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-76020iAZSH32202405

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-76020iAZSH32202405

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-76020iAZSH32202405

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-33090iAZSH32202405

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-33090iAZSH32202405

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-62020iAZSH32202405

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-62020iAZSH32202405

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-48040×2iAZSH32202405

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-30590iAZSH32202405

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-30650iAZSH32202405

9010506260

main90105-06260

9010508448

main90105-08448

9010508519

main90105-08519

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
