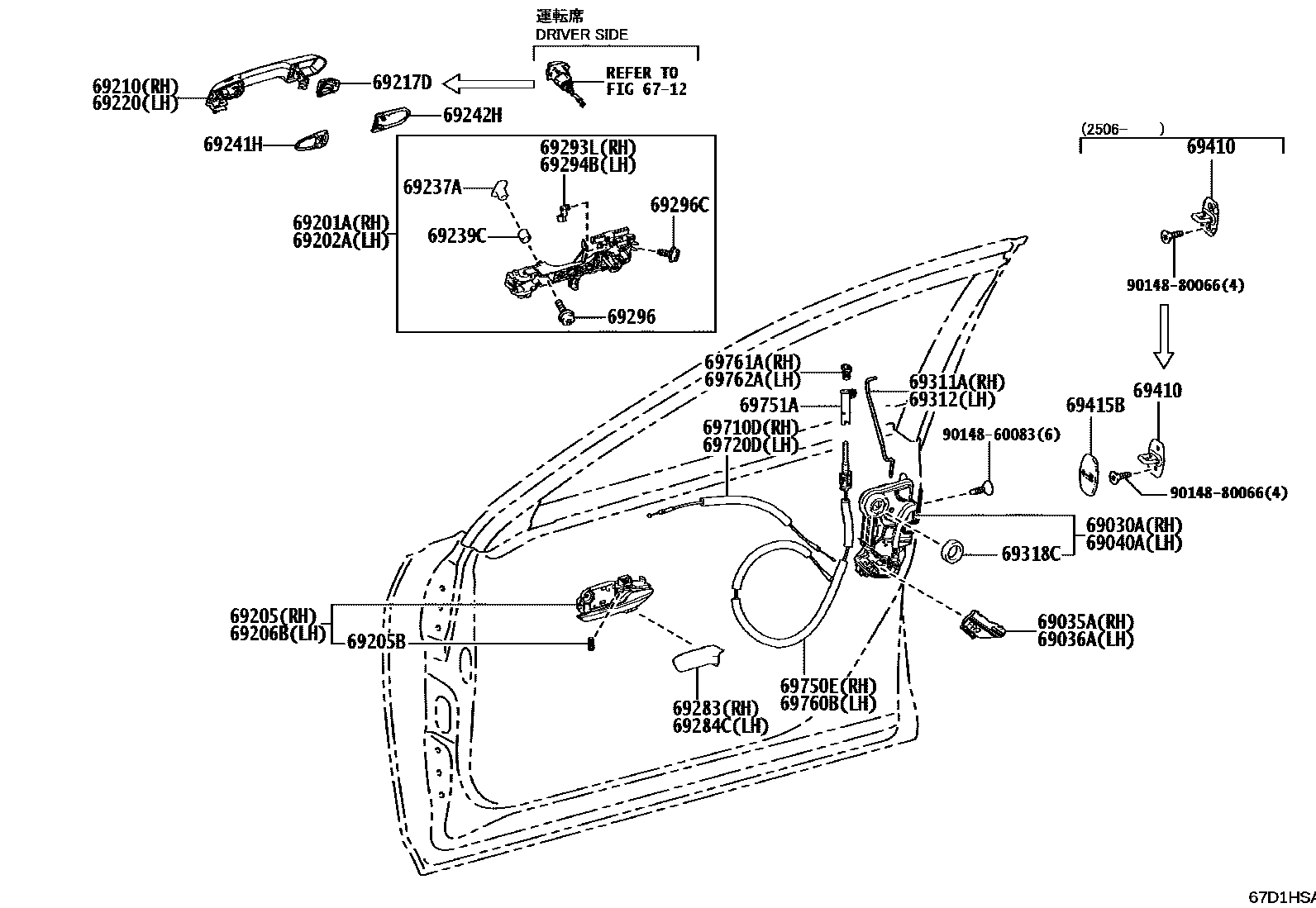

FRONT DOOR LOCK & HANDLE

6712LOCK CYLINDER SET

→ Go to FIG 67-12

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-48120iAZSH32202405

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010iAZSH32202405

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010iAZSH32202405

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-53140iAZSH32202405

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30100iAZSH32202405

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30090iAZSH32202405

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-40050iAZSH32202405

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main69275-30070×4iAZSH32202405

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-40050iAZSH32202405

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-42171-22iAZSH32202405

PRECIOUS BLACK,219

main69210-42171-A3iAZSH32202405

PRECIOUS WHITE PEARL,090

main69210-42171-B6iAZSH32202405

PRECIOUS METAL,1L5

main69210-42171-B7iAZSH32202405

MASSIVE GRAY,1L6

main69210-42171-E1iAZSH32202405

PRECIOUS BRONZE,4Y6

main69210-42171-P0iAZSH32202405

PRECIOUS SILVER,1J6

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-30140iAZSH32202405

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-42121-22iAZSH32202405

PRECIOUS BLACK,219

main69210-42121-A3iAZSH32202405

PRECIOUS WHITE PEARL,090

main69210-42121-B6iAZSH32202405

PRECIOUS METAL,1L5

main69210-42121-B7iAZSH32202405

MASSIVE GRAY,1L6

main69210-42121-E1iAZSH32202405

PRECIOUS BRONZE,4Y6

main69210-42121-P0iAZSH32202405

PRECIOUS SILVER,1J6

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2iAZSH32202405

69239CBUSH, FRONT DOOR HANDLE

main69239-47010×2iAZSH32202405

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30130×2iAZSH32202405

69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-30110×2iAZSH32202405

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30070-C1iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30070-C1iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030iAZSH32202405

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040iAZSH32202405

69296SCREW, DOOR INSIDE HANDLE

main90148-50006×2iAZSH32202405

69296CSCREW, DOOR INSIDE HANDLE

main90148-50003×2iAZSH32202405

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-30230iAZSH32202405

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-30230iAZSH32202405

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iAZSH32202405

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33030×2iAZSH32202405-202506

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-60020×2iAZSH32202405-202506

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-30270iAZSH32202405

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-30270iAZSH32202405

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-30240iAZSH32202405

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-33010×2iAZSH32202405

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-30240iAZSH32202405

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-62010-C0iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69761-62010-C0iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

9014860083

main90148-60083

9014880066

main90148-80066

37 parts on this diagram · 1 diagram in section
