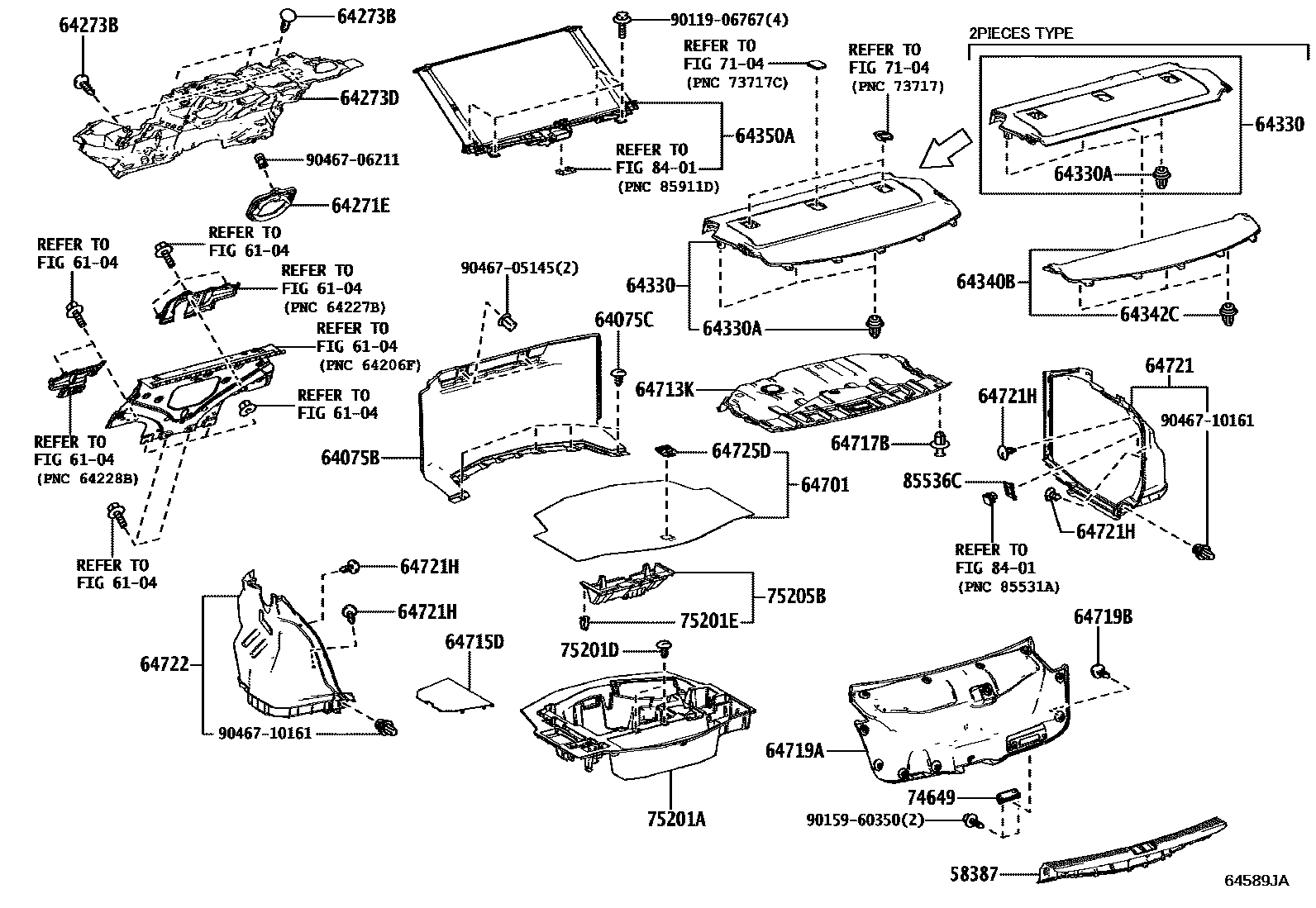

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-30280-C0iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64075-30470-C0iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

64075CCLIP, LUGGAGE COMPARTMENT TRIM COVER

main90467-08186-C3×5iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

64271EPANEL, ROOM PARTITION

main64298-62010iAZSH32202405

64273BCLIP

main90467-05164-B8×5iAZSH32202405

LT.GRAY

64273DPAD, ROOM PARTITION, NO.1

main64273-30270iAZSH32202405

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-30K40-C0iAZSH32..M202405

BLACK,TRIM2#

main64330-30K70-C0iAZSH32..G202405

BLACK,TRIM2#,4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161×3iAZSH32202405

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-30210-C0iAZSH32..G202405

BLACK,TRIM2#,4#

64342CCLIP(FOR COVER, PACKAGE TRAY TRIM, UNDER)

main90467-10161×3iAZSH32..G202405

64350ASHADE ASSY, REAR WINDOW

main64350-62010iAZSH32..G202405

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-30230-C0iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER

main64713-30250-C0iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-30410-C0iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-07214×8iAZSH32202405

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-30530-C0iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C3×14iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-30380-C0iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C3×4iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-30350-C0iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-33100iAZSH32202405

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010-C3iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

75201ABOX, TOOL

main75201-30200iAZSH32202405

75201DCLIP, TOOL BOX SUB-ASSY, NO.1

main90467-08186-C3×2iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

75201ECLIP, TOOL BOX SUB-ASSY, NO.2

main90467-05171×4iAZSH32202405

75205BBOX SUB-ASSY, TOOL, NO.2

main75205-30010iAZSH32202405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85536CBEZEL, POWER OUTLET SOCKET

main85536-30030-C0iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

9011906767

main90119-06767

9015960350

main90159-60350

9046705145

main90467-05145

9046706211

main90467-06211

9046710161

main90467-10161

35 parts on this diagram · 1 diagram in section
