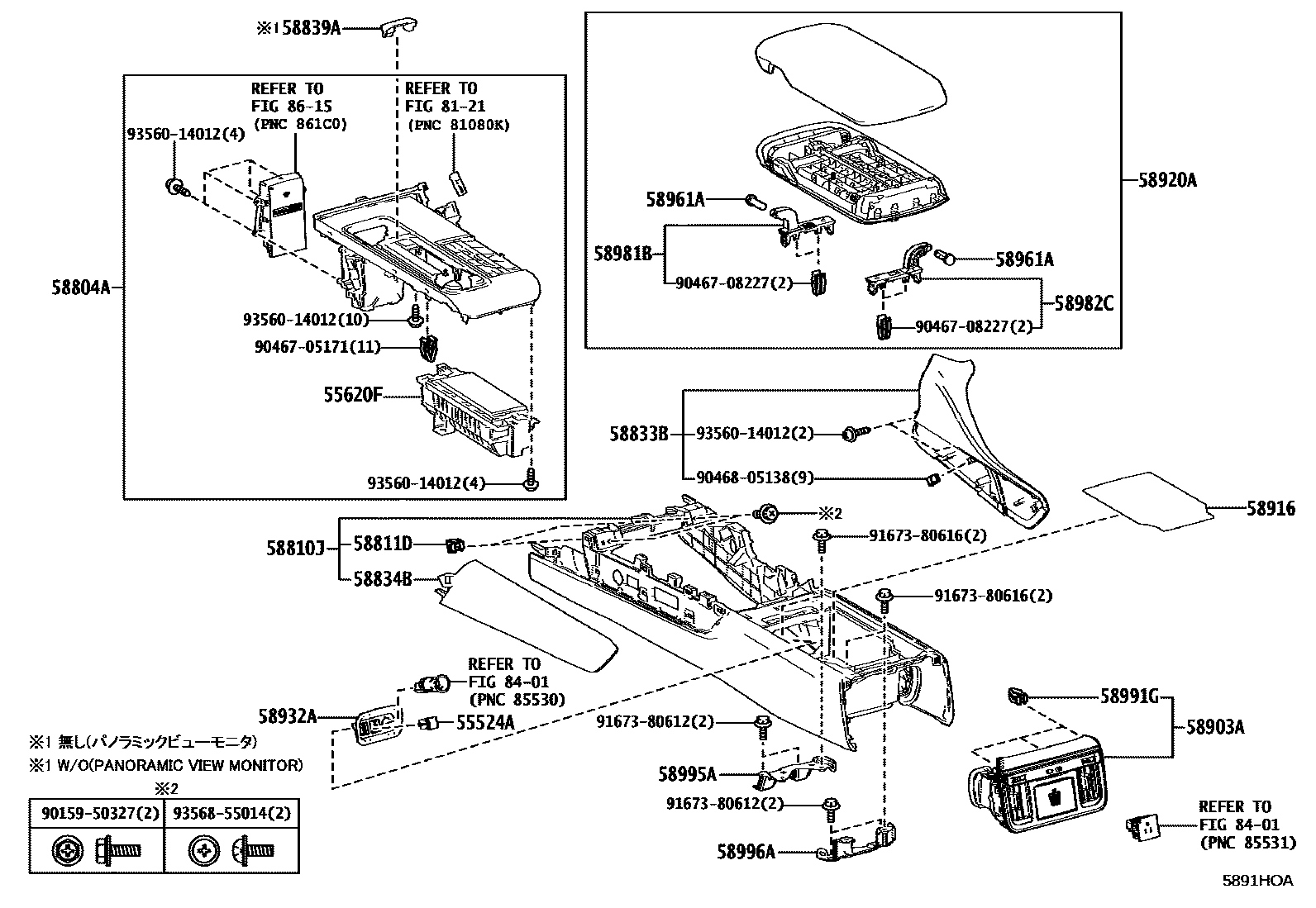

CONSOLE BOX & BRACKET
55524ACOVER, SWITCH BASE HOLE
BLACK
55620FHOLDER ASSY, CONSOLE BOX CUP
DARK STRIPE WOOD,TRIM2#
DARK STRIPE WOOD,TRIM2#,4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
DARK STRIPE WOOD,TRIM2#
DARK STRIPE WOOD,TRIM2#,4#
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
BLACK,TRIM2#,4#
58811DCLIP(FOR CONSOLE BOX)
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
BLACK,TRIM2#
BLACK,TRIM2#,4#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK,TRIM2#
BLACK,TRIM2#,4#
58839ACOVER, CONSOLE BOX HOLE
58903APANEL SUB-ASSY, CONSOLE REAR END
DARK STRIPE WOOD,TRIM2#
DARK STRIPE WOOD,TRIM2#,4#
58916MAT, BOX BOTTOM
58920AARMREST ASSY, REAR CONSOLE
BLACK,TRIM2#
MD.BROWN,TRIM4#
58932AGARNISH, REAR CONSOLE BOX
58961AHINGE, CONSOLE COMPARTMENT DOOR MALE
58981BRETAINER, CONSOLE MOUNTING, NO.1
58982CRETAINER, CONSOLE MOUNTING, NO.2
58991GCLIP
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8121
8401
8615
9015950327
main90159-50327
9046705171
main90467-05171
9046708227
main90467-08227
9046805138
main90468-05138
9167380612
main91673-80612
9167380616
main91673-80616
9356014012
main93560-14012
9356855014
main93568-55014
29 parts on this diagram · 1 diagram in section
