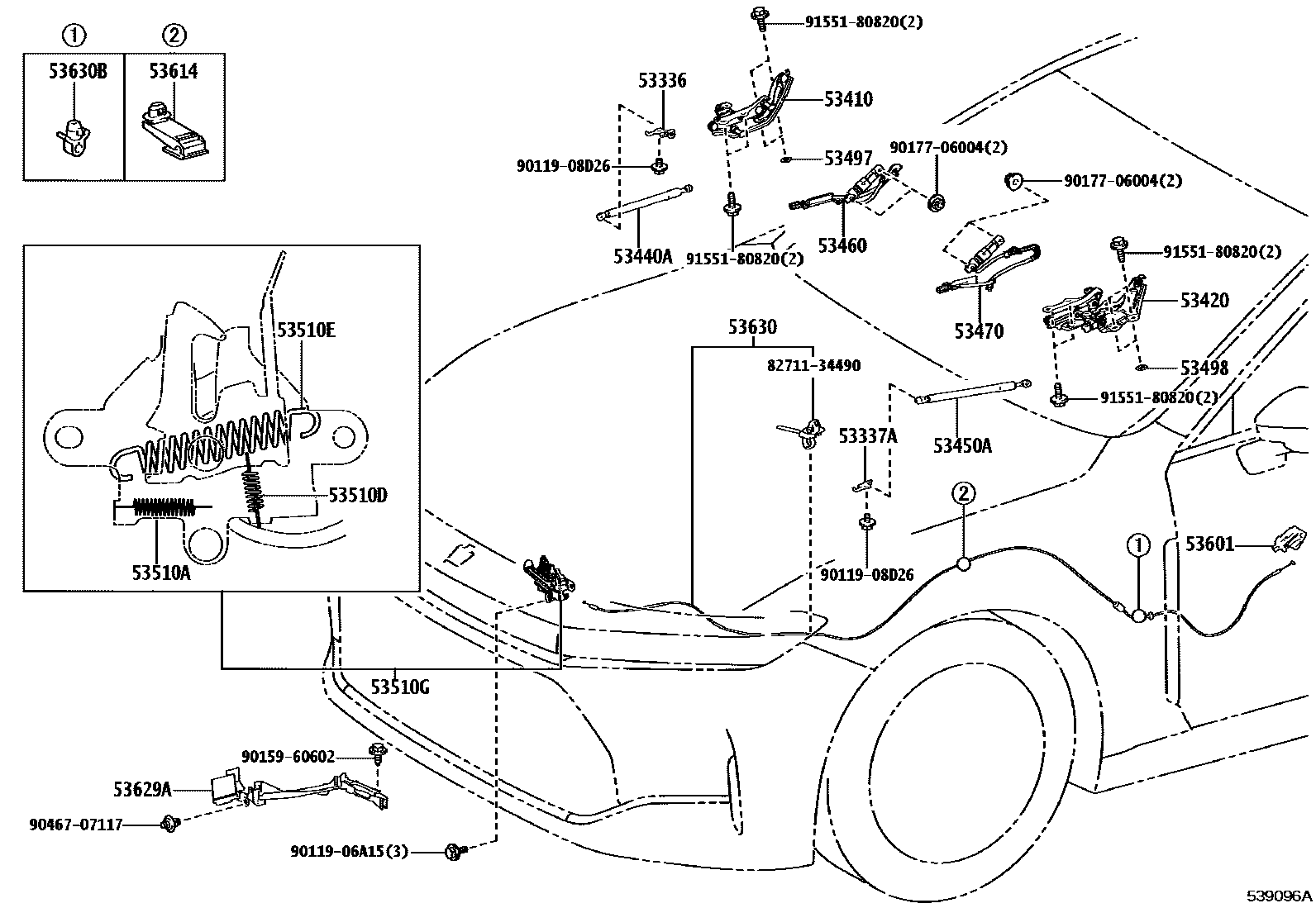

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-50020iAZSH32202405

53337ABRACKET, HOOD STAY, LH

main53337-50020iAZSH32202405

53410HINGE ASSY, HOOD, RH

main53410-62070iAZSH32202405

53420HINGE ASSY, HOOD, LH

main53420-62060iAZSH32202405

53440ASUPPORT ASSY, HOOD, RH

main53440-0W500iAZSH32202405

53450ASUPPORT ASSY, HOOD, LH

main53440-0W500iAZSH32202405

53460LIFTER ASSY, POP UP HOOD, RH

main53460-62031iAZSH32202405

53470LIFTER ASSY, POP UP HOOD, LH

main53470-62031iAZSH32202405

53497PAD, HOOD HINGE, NO.1

main53497-50020×2iAZSH32202405

T=1.0

53498PAD, HOOD HINGE, NO.2

main53497-50020×2iAZSH32202405

T=1.0

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAZSH32202405

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAZSH32202405

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iAZSH32202405

WD=1.6,CW=12

53510GLOCK ASSY, HOOD, W/COURTESY LAMP SWITCH

main53510-30460iAZSH32202405

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-62010-C0iAZSH32..G; AZSH32..M202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-50010iAZSH32202405

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-30120iAZSH32202405

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-62030iAZSH32202405

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90959-01369iAZSH32..G; AZSH32..M202405

8271134490WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34490

9011906A15

main90119-06A15

9011908D26

main90119-08D26

9015960602

main90159-60602

9017706004

main90177-06004

9046707117

main90467-07117

9155180820

main91551-80820

26 parts on this diagram · 1 diagram in section
