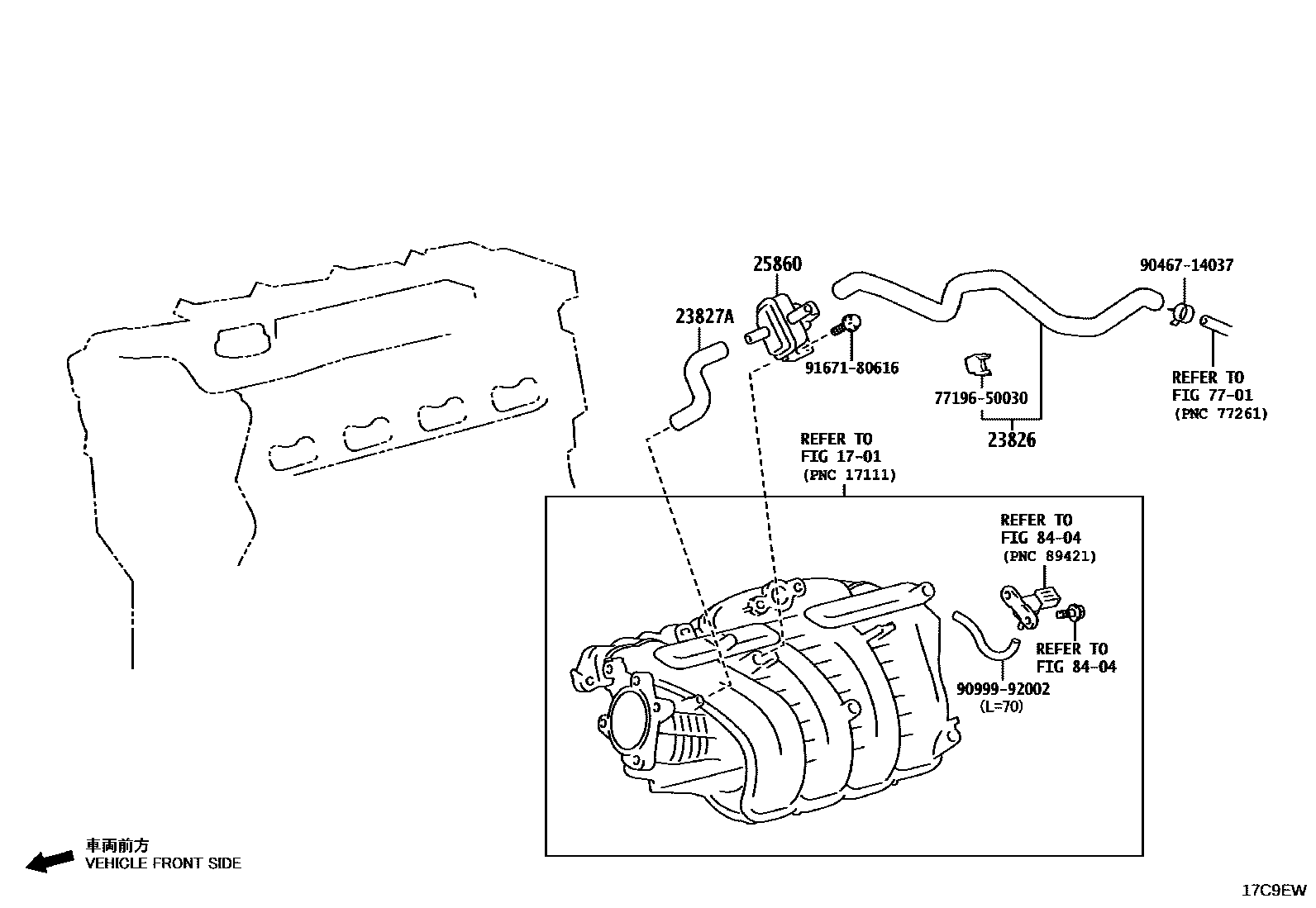

VACUUM PIPING

0001 1INTAKE MANIFOLD 0002 1EXHAUST MANIFOLD

1701MANIFOLD

→ Go to FIG 17-01

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-25500iA25..AZSH32202405

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-25100iA25..AZSH32202405

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25050iA25..AZSH32202405

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

7719650030CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-50030

9046714037

main90467-14037

9099992002

main90999-92002

9167180616

main91671-80616

10 parts on this diagram · 2 diagrams in section
