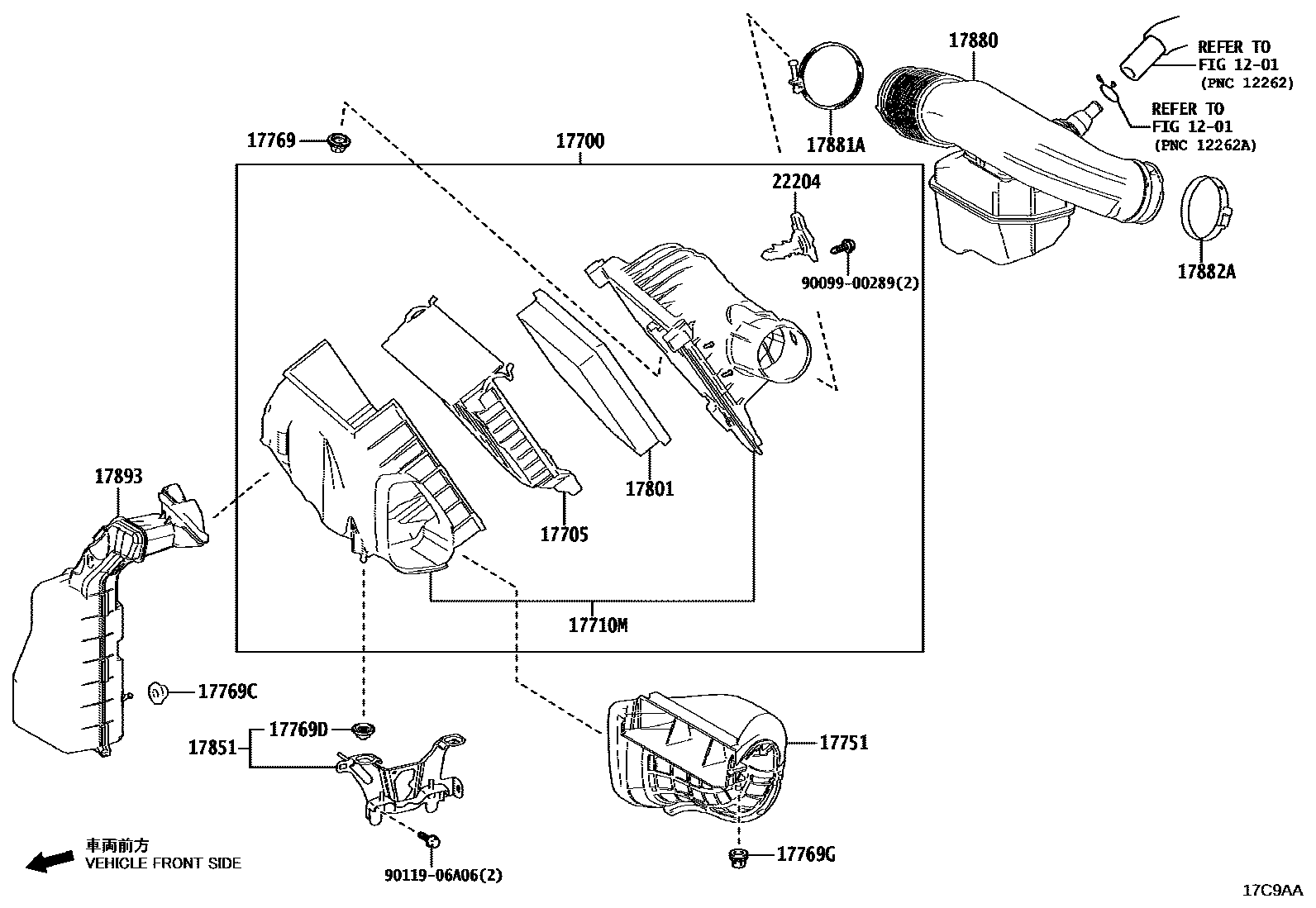

AIR CLEANER

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-25120iA25..AZSH32202405

17705CAP SUB-ASSY, AIR CLEANER

main17705-25140iA25..AZSH32202405

17710MCLEANER ASSY, AIR (WITHOUT ELEMENT)

main17710-25010iA25..AZSH32202405

17751INLET, AIR CLEANER, NO.1

main17751-25080iA25..AZSH32202405

17769SUPPORT, AIR CLEANER

main17769-25010iA25..AZSH32202405

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25010×3iA25..AZSH32202405

17769DSUPPORT, AIR CLEANER, NO.2

main17769-25010×2iA25..AZSH32202405

17769GSUPPORT, AIR CLEANER, NO.3

main17769-25040iA25..AZSH32202405

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31150iA25..AZSH32202405

17851BRACKET, AIR CLEANER SUPPORT

main17850-38010iA25..AZSH32202405

17880HOSE ASSY, AIR CLEANER

main17880-25030iA25..AZSH32202405

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25..AZSH32202405

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25..AZSH32202405

17893RESONATOR, INTAKE AIR

main17893-25120iA25..AZSH32202405

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iA25..AZSH32202405

9009900289

main90099-00289

9011906A06

main90119-06A06

18 parts on this diagram · 1 diagram in section
