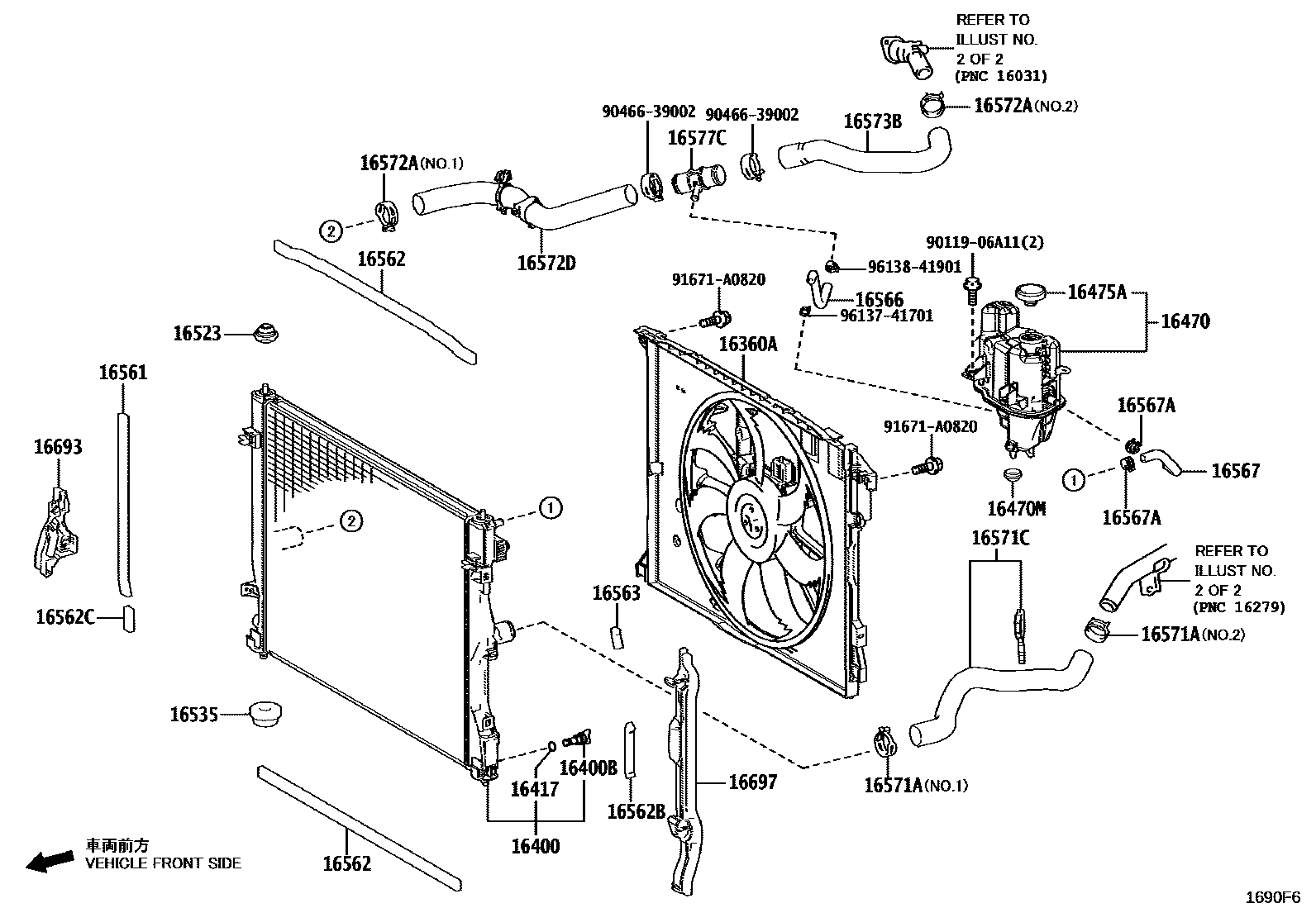

RADIATOR & WATER OUTLET
16360AFAN ASSY, W/MOTOR
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16417COCK
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16475ACAP, RESERVE TANK
16523CUSHION, SUB-RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
16562BSEAL, RADIATOR TO SUPPORT, NO.4
16562CSEAL, RADIATOR TO SUPPORT, NO.5
16563SEAL, RADIATOR TO SUPPORT, NO.3
16566HOSE, RESERVE TANK OUTLET
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16571CHOSE, RADIATOR, NO.1
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16572DHOSE, RADIATOR, NO.2
16573BHOSE, RADIATOR, NO.3
16577CPIPE, RADIATOR
16693PLATE, RADIATOR SIDE AIR GUIDE, RR RH
16697PLATE, RADIATOR SIDE AIR GUIDE, RR LH
9011906A11
main90119-06A11
9046639002
main90466-39002
91671A0820
main91671-A0820
9613741701
main96137-41701
9613841901
main96138-41901
30 parts on this diagram · 2 diagrams in section
