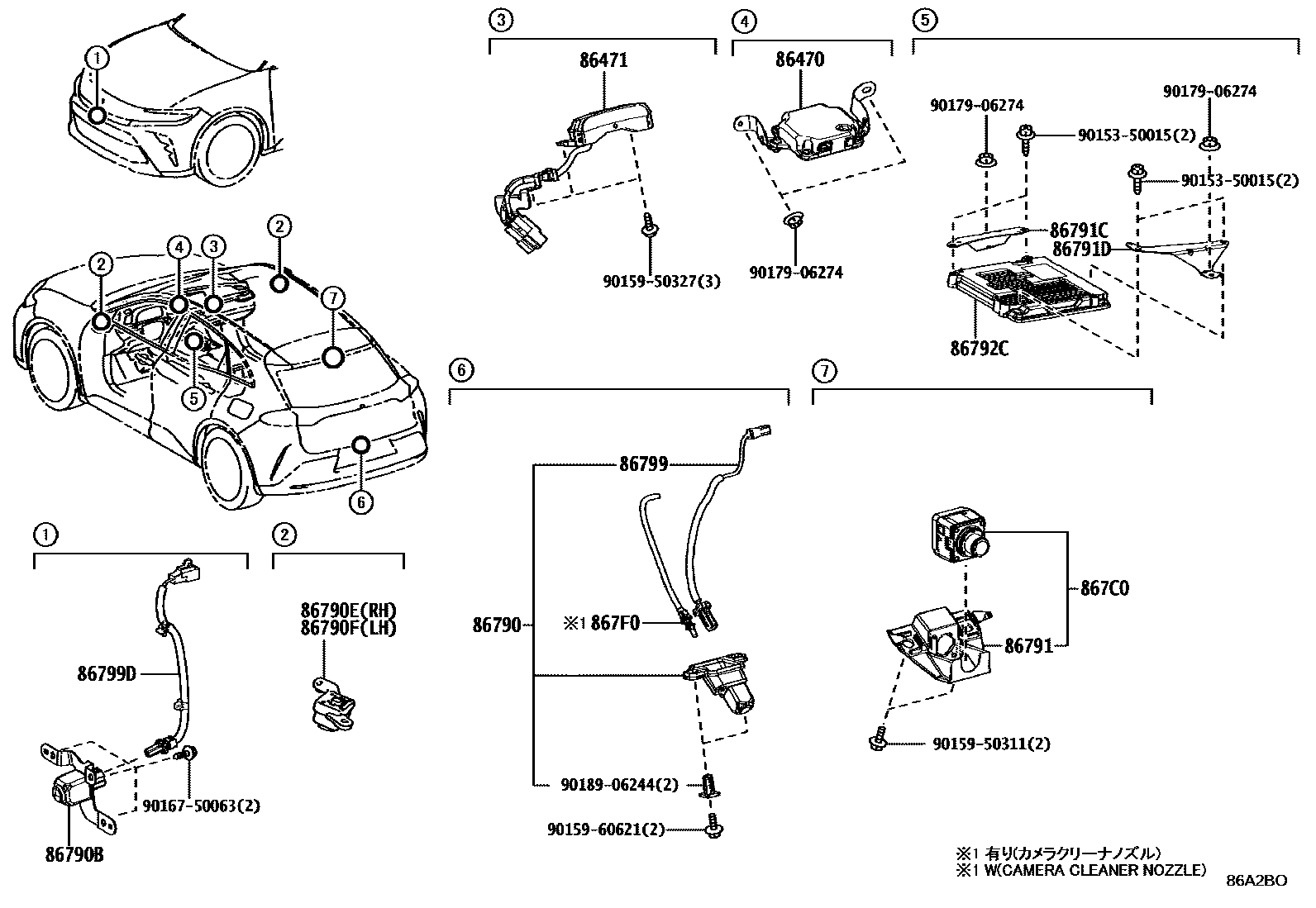

CAMERA & REAR MONITOR DISPLAY

86470COMPUTER ASSY, DRIVER MONITOR

main86470-30090iAZSH3#..G202405

86471CAMERA, DRIVER MONITOR

main86471-30040iAZSH3#..G202405

86790CAMERA ASSY, TELEVISION

main86790-30360iAZSH3#..G202405

main86790-30370iAZSH36..M202412

86790BCAMERA ASSY, TELEVISION, FR

main86790-30490iAZSH3#..G202405

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-30310iAZSH3#..G202405

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-30320iAZSH3#..G202405

86791BRACKET, TELEVISION CAMERA

main86791-30050

main86791-30060

main86791-30070

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-30050iAZSH3#..G202405

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-30060iAZSH3#..G202405

86792CCOMPUTER, PARKING ASSIST

main86792-30550iAZSH3#..G202405

86799WIRE, TELEVISION CAMERA

main86799-30110iAZSH3#..G202405

main86799-30120iAZSH36..M202412

86799DWIRE, TELEVISION CAMERA, FRONT

main86799-30170iAZSH3#..G202405

867C0CAMERA ASSY, INNER MIRROR

main867C0-30050

867F0NOZZLE ASSY, CAMERA CLEANER

main867F0-30030iAZSH3#..G202405

9015350015

main90153-50015

9015950311

main90159-50311

9015950327

main90159-50327

9015960621

main90159-60621

9016750063

main90167-50063

9017906274

main90179-06274

9018906244

main90189-06244

21 parts on this diagram · 1 diagram in section
