ANTENNA

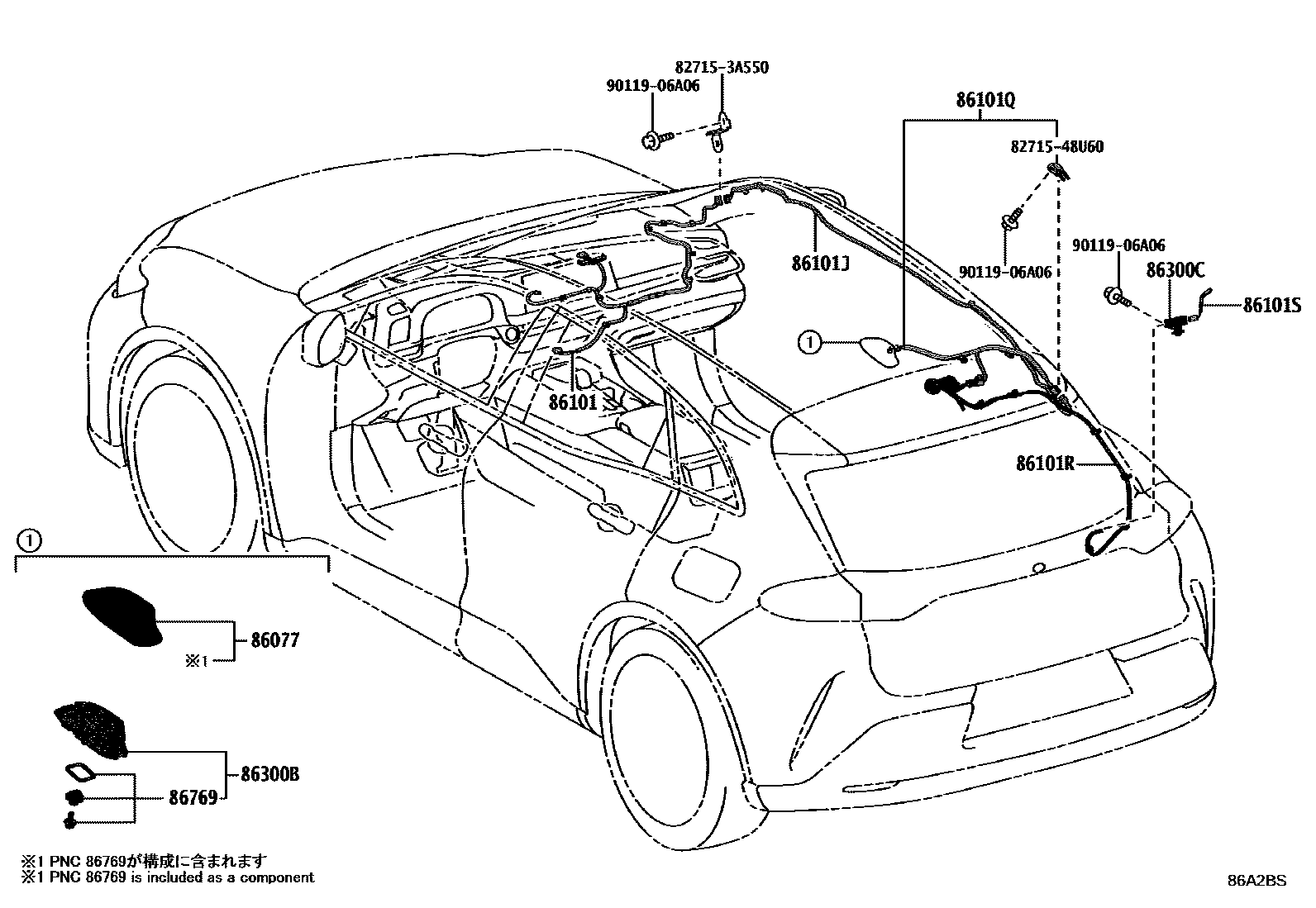

Parts diagram

86077COVER KIT, ANTENNA

main86077-33040-A5i202405

PRECIOUS WHITE PEARL,090

main86077-33040-C3i202405

BLACK,1M2 ,202 ,2XW ,2XZ ,2ZQ ,2ZR ,2ZS ,3U9 ,5C5 ,M24 ,M25 ,M26 ,M27 ,M29

main86077-33040-D2i202405-202507

EMOTIONAL RED 3,3U9

main86077-33040-E7i202405

PRECIOUS BRONZE,4Y6

main86077-33040-F1i202405-202507

MUSTARD,5C5

main86077-33040-P2i202405-202507

ASH,1M2

86101CORD SUB-ASSY, ANTENNA

main86101-30W00i202405-202507

main86101-3A720i202405

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-3A700i202405-202507

main86101-3A710i202405

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-3A120i202405-202507

main86101-3A130i202405

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-3A160i202405-202507

86101SCORD SUB-ASSY, ANTENNA

main86101-3A730i202405-202507

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86760-42070i202405

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-48351i202405-202507

86769HOUSING, ROOF ANTENNA

main86769-K0010i202405

827153A550BRACKET,WIRING HARNESS CLAMP

main82715-3A550

8271548U60BRACKET,WIRING HARNESS CLAMP

main82715-48U60

9011906A06

main90119-06A06

12 parts on this diagram · 1 diagram in section
