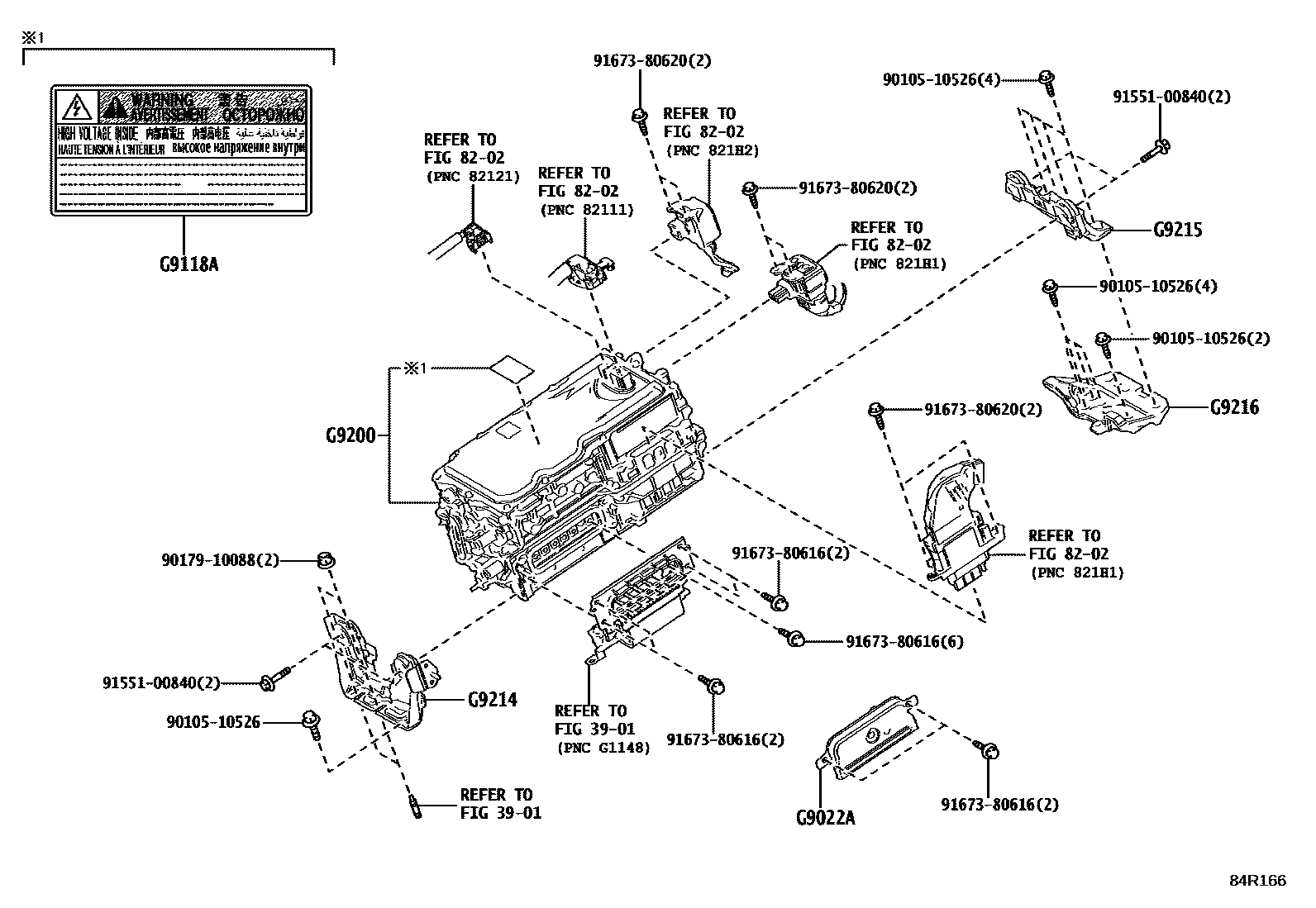

HEV INVERTER

0001 1 0002 1 0003 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iAZSH3#202405

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911876010iAZSH3#202405

G9200INVERTER ASSY, W/CONVERTER

mainG92A030082iAZSH36202405

G9214BRACKET, INVERTER, NO.1

mainG921430030iAZSH36202405

mainG921442010iAZSH37202409

G9215BRACKET, INVERTER, NO.2

mainG921542010iAZSH36202405

mainG921542020iAZSH37202409

G9216BRACKET, INVERTER, NO.3

mainG921642010iAZSH36202405

mainG921642020iAZSH37202409

9010510526

main90105-10526

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

9167380620

main91673-80620

13 parts on this diagram · 3 diagrams in section
