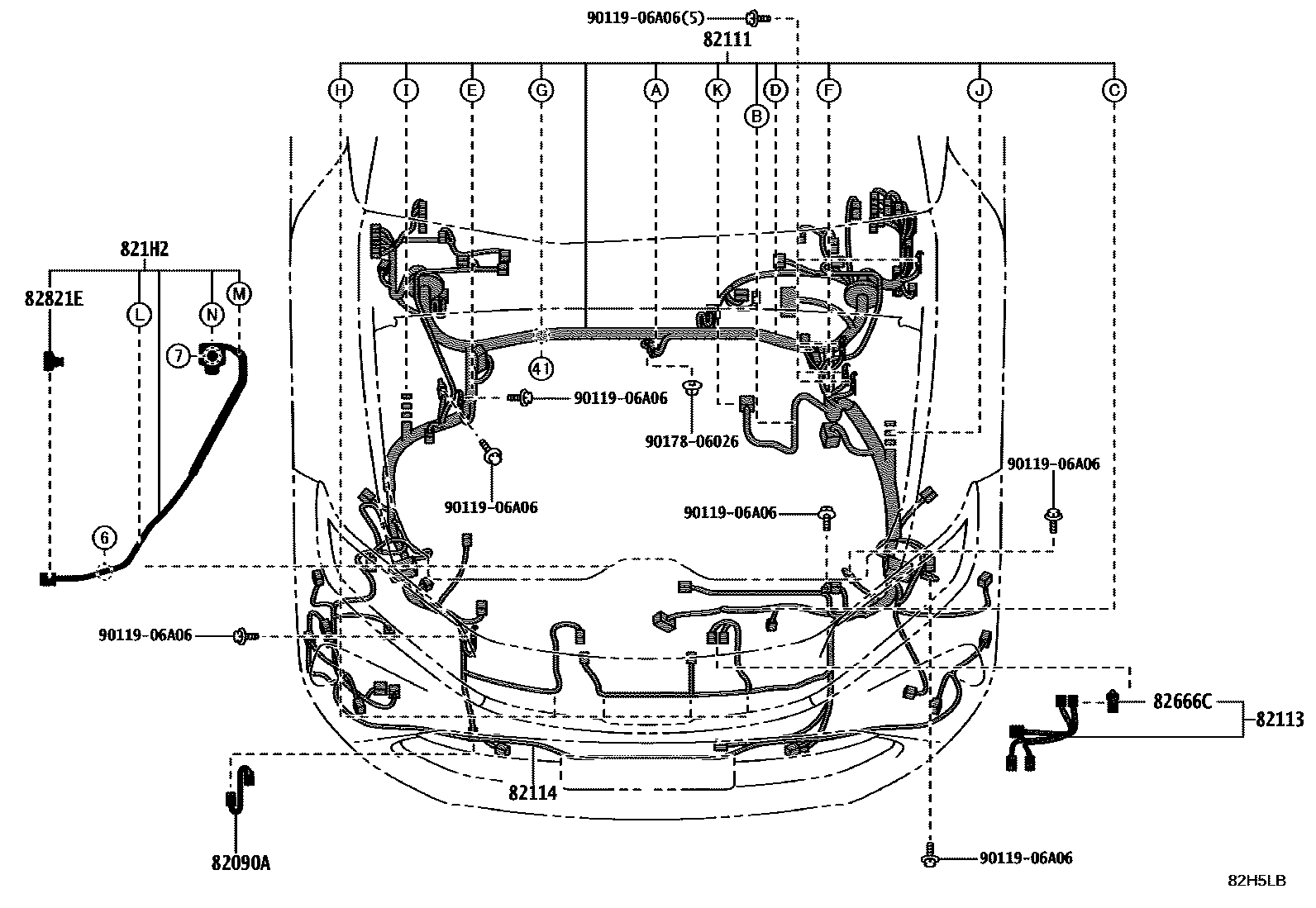

WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE 0006 1ENGINE 0007 1INSTRUMENT PANEL 0008 1DOOR 0009 1FLOOR & ROOF 0010 1FLOOR & ROOF 0011 1HIGH VOLTAGE CABLE 0012 1HIGH VOLTAGE CABLE 0013 1SEAT 0014 1CLAMP & BRACKET 1/2 0015 1CLAMP & BRACKET 2/2 0016 1CONNECTOR 1/2 0017 1CONNECTOR 2/2

82090AWIRE ASSY, EXTENSION

main82090-33030iAZSH3#202405

82111WIRE, ENGINE ROOM MAIN

main82111-3FP70iAZSH36..M202405

main82111-3FW50iAZSH36..G202405

main82111-3FW70iAZSH37202409

82113WIRE, ENGINE ROOM, NO.3

main82113-30A90supersedes 82113-30B00iAZSH36..M202405

ADVANCED PARK-WITHOUT

82114WIRE, ENGINE ROOM, NO.4

main82114-30580supersedes 82114-30590iAZSH36..M202405

ADVANCED PARK-WITHOUT

821H2WIRE, HV AIR CONDITIONER

main821H2-42020iAZSH36202405

main821H2-42030iAZSH37202409

82666CHOLDER, CONNECTOR NO.4

main82666-50C30iAZSH3#202405

82821ECOVER, CONNECTOR

main82821-0R140iAZSH36202405

9011906A06

main90119-06A06

9017806026

main90178-06026

9 parts on this diagram · 17 diagrams in section
