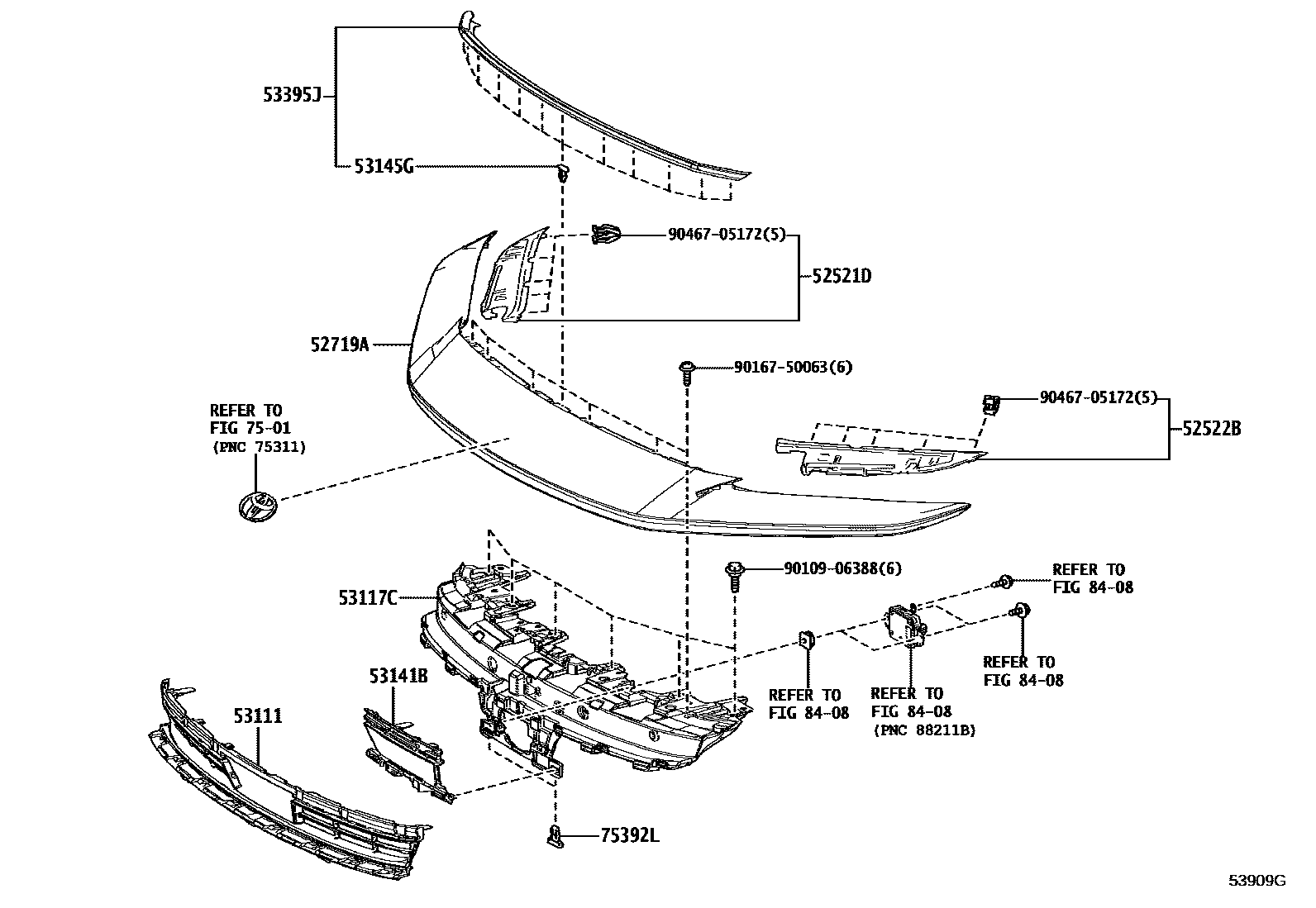

RADIATOR GRILLE

52521DRETAINER, FRONT BUMPER FILLER, NO.1

main52521-30110iAZSH3#202405

52522BRETAINER, FRONT BUMPER FILLER, NO.2

main52522-30040iAZSH3#202405

52719ACOVER, FRONT BUMPER MOULDING

main52719-30901iAZSH3#202405

53111GRILLE, RADIATOR

main53111-30J70iAZSH3#202405

NO PAINT REQ.

53117CRETAINER, RADIATOR GRILLE, NO.1

main53117-30310iAZSH3#202405

53141BGARNISH, RADIATOR GRILLE, NO.1

main53141-30570iAZSH3#202405

53145GCLIP, RADIATOR GRILLE

main53145-60030×12iAZSH3#202405

53395JSEAL, HOOD TO FRONT END PANEL

main53395-30020iAZSH3#202405

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75392LRETAINER, OUTSIDE MOULDING

main75392-35220×2iAZSH3#202405

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9010906388

main90109-06388

9016750063

main90167-50063

9046705172

main90467-05172

14 parts on this diagram · 1 diagram in section
