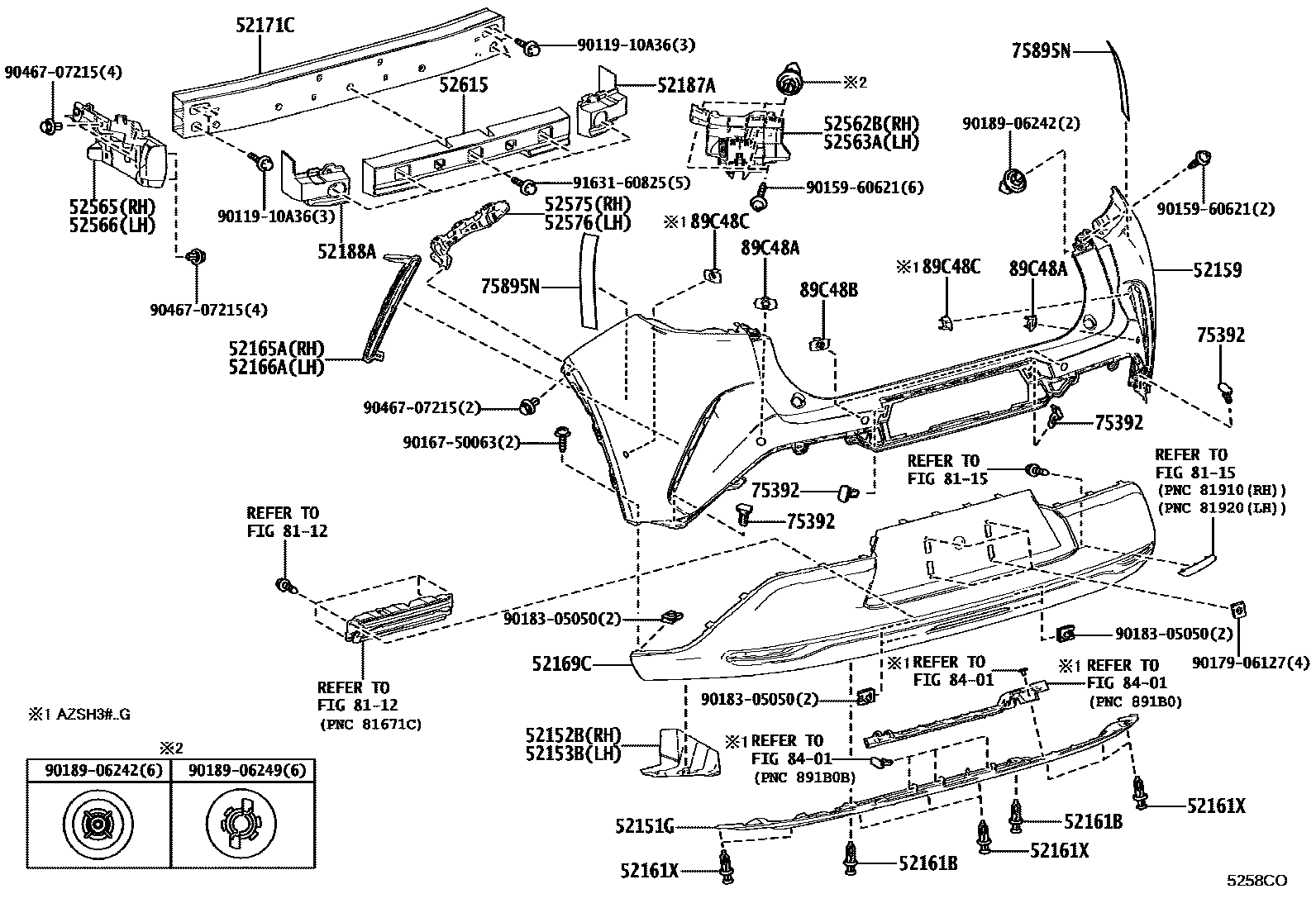

REAR BUMPER & BUMPER STAY
52151GEXTENSION, REAR BUMPER
NO PAINT REQ.
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,ADVANCED PARK-WITHOUT
PAINT REQ.
52161BPIECE, REAR BUMPER
52161XPIECE, REAR BUMPER
52165ACOVER, REAR BUMPER, UPR RH
NO PAINT REQ.
52166ACOVER, REAR BUMPER, UPR LH
NO PAINT REQ.
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52171CREINFORCEMENT, REAR BUMPER
52187AREINFORCEMENT, REAR BUMPER ARM, RH
52188AREINFORCEMENT, REAR BUMPER ARM, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52565FILLER, REAR BUMPER EXTENSION, RH
NO PAINT REQ.
52566FILLER, REAR BUMPER EXTENSION, LH
NO PAINT REQ.
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
75392RETAINER, OUTSIDE MOULDING
75895NTAPE, MOULDING, NO.1
8112BACK UP LAMP
8115REFLEX REFLECTOR
8401SWITCH & RELAY & COMPUTER
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
PRECIOUS WHITE PEARL,090 ,2XW
ASH,1M2 ,2ZQ
BLACK,202
EMOTIONAL RED 3,2ZR ,3U9
PRECIOUS BRONZE,2XZ ,4Y6
MUSTARD,2ZS ,5C5
PRECIOUS WHITE PEARL,090 ,2XW ,M26
ASH,1M2 ,2ZQ ,M29
BLACK,202
EMOTIONAL RED 3,2ZR ,3U9 ,M24
PRECIOUS BRONZE,2XZ ,4Y6 ,M27
MUSTARD,2ZS ,5C5 ,M25
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
9011910A36
main90119-10A36
9015960621
main90159-60621
9016750063
main90167-50063
9017906127
main90179-06127
9018305050
main90183-05050
9018906242
main90189-06242
9018906249
main90189-06249
9046707215
main90467-07215
9163160825
main91631-60825
36 parts on this diagram · 1 diagram in section
