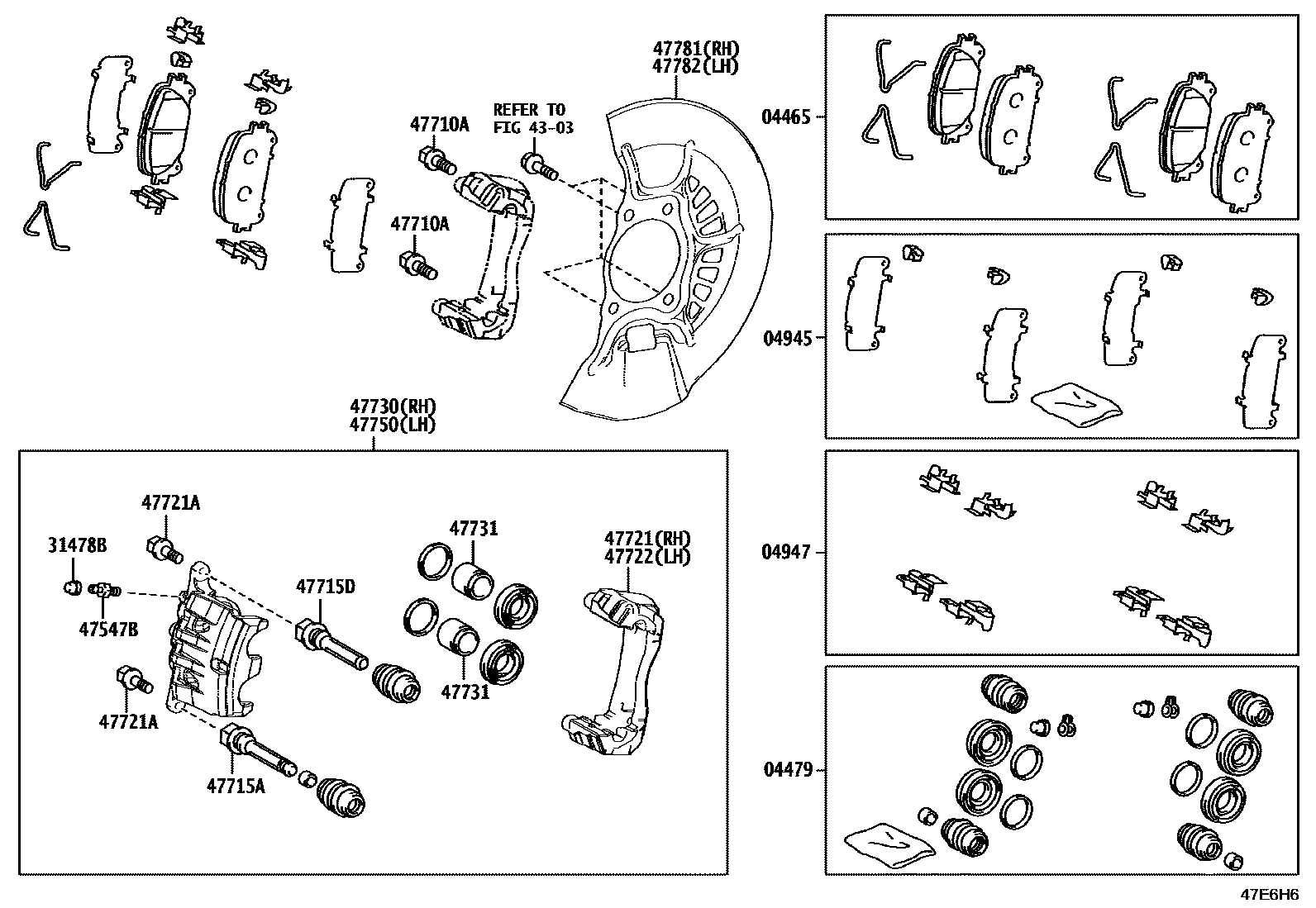

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-48270iAZSH37202409

MARK ADVICS VC115-FG

main04465-78010iAZSH36202405

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48200iAZSH36202405

main04478-48240iAZSH37202409

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iAZSH36202405

main04945-48220iAZSH37202409

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iAZSH36202405

main04947-48100iAZSH37202409

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iAZSH37202409

main31478-30010iAZSH36202405

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iAZSH36202405

main47547-50010iAZSH37202409

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12401iAZSH36202405

*12-1.25PX35.5-30

main90105-14212iAZSH37202409

*14-1.5PX35.5-31

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iAZSH36202405

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150iAZSH36202405

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48150iAZSH36202405

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602iAZSH36202405

*8-1.00PX23-12.5

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48140iAZSH36202405

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-40120iAZSH37202409

main47730-48150iAZSH36202405

47731PISTON, FRONT DISC BRAKE

main47731-48150iAZSH36202405

main47731-48260iAZSH37202409

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-40120iAZSH37202409

main47750-48110iAZSH36202405

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42060iAZSH36202405

main47781-48060iAZSH37202409

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42060iAZSH36202405

main47782-48060iAZSH37202409

18 parts on this diagram · 2 diagrams in section
