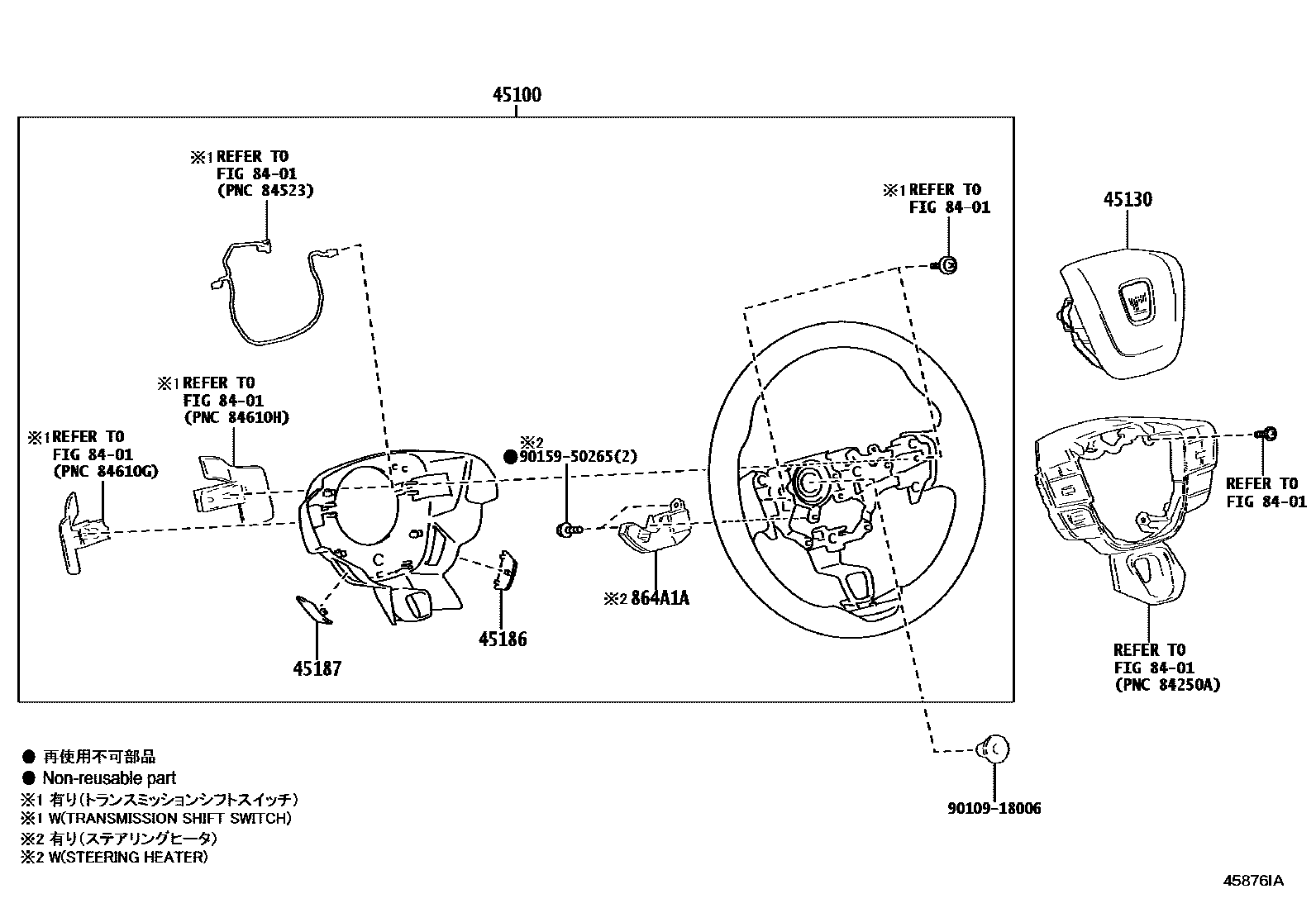

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-30G70-C2iAZSH36..M202405

3-SPOKE,LEATHER,BLACK/LT.GRAY/BLACK,TRIM2#,4#

main45100-30G90-C2iAZSH36..G202405

3-SPOKE,LEATHER,BLACK/LT.GRAY/BLACK,TRIM2#,4#

main45100-30J70-C1iAZSH37202409

3-SPOKE,LEATHER,BLACK/RED NO.55,TRIM21

main45100-30J70-C2iAZSH37202409

3-SPOKE,LEATHER,BLACK/LT.GRAY/BLACK,TRIM20,21,4#

45130BUTTON ASSY, HORN

main45130-30820-C0iAZSH3#202405

BLACK,TRIM2#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-30200-C0iAZSH3#202405

BLACK,TRIM2#,4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30140-C0iAZSH3#202405

BLACK,TRIM2#,4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

main864A1-78040iAZSH3#..G202405

9010918006

main90109-18006

9015950265

main90159-50265

8 parts on this diagram · 1 diagram in section
