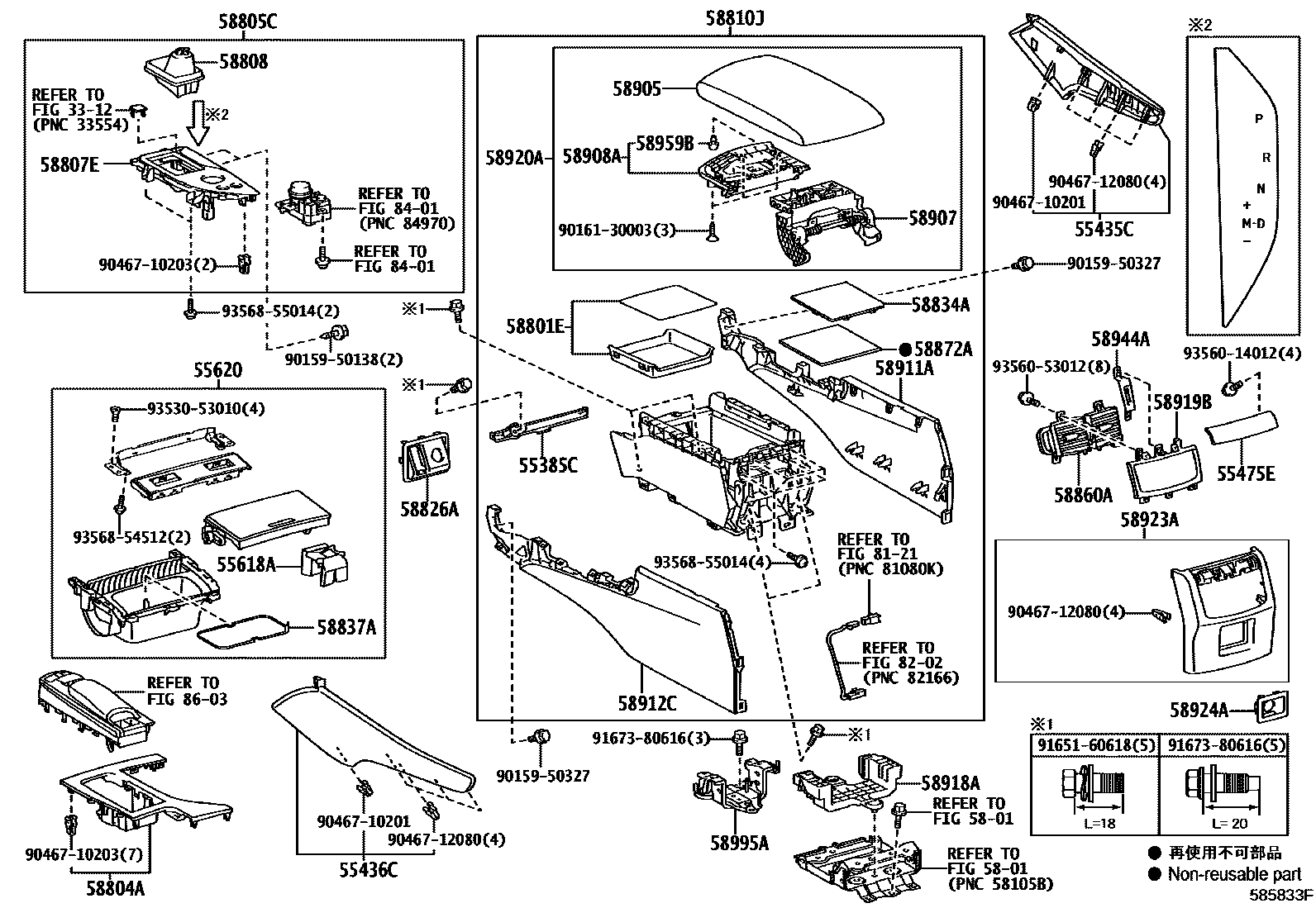

CONSOLE BOX & BRACKET
3312
55385CBRACKET, CONSOLE BOX MOUNTING, NO.5
55435CPANEL, INSTRUMENT PANEL FINISH, END RH
BLACK/WHITE,TRIM0#
BLACK/WHITE,TRIM0#
BLACK/BLACK,TRIM2#
BLACK/RED,TRIM3#
BLACK/MOON STONE,TRIM1#
BLACK/BLUE,TRIM8#
BLACK/WHITE,TRIM0#
BLACK/WHITE,TRIM0#
BLACK/BLACK,TRIM2#
BLACK/RED,TRIM3#
BLACK/MOON STONE,TRIM1#
55436CPANEL, INSTRUMENT PANEL FINISH, END LH
BLACK/WHITE,TRIM0#
BLACK/WHITE,TRIM0#
BLACK/BLACK,TRIM2#
BLACK/RED,TRIM3#
BLACK/MOON STONE,TRIM1#
BLACK/BLUE,TRIM8#
BLACK/WHITE,TRIM0#
BLACK/WHITE,TRIM0#
BLACK/BLACK,TRIM2#
BLACK/RED,TRIM3#
BLACK/MOON STONE,TRIM1#
55475EGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER
CFRP 3K,BLACK,TRIM0#,2#,3#,4#
CFRP 3K,BLUE,TRIM8#
CFRP COMPOSITE,BLACK,TRIM0#,1#,2#,3#,4#
55618AHOLDER, CONSOLE BOX CUP
55620HOLDER ASSY, INSTRUMENT PANEL CUP
SEAT HEATER-WITHOUT,MD.SILVER,TRIM2#
CFRP 3K,BLACK,TRIM0#,2#,3#,4#
CFRP 3K,BLUE,TRIM8#
CFRP 3K&SEAT HEATER-WITHOUT,BLACK,TRIM2#
CFRP COMPOSITE,BLACK,TRIM0#,1#,2#,3#,4#
CFRP COMPOSITE&SEAT HEATER-WITHOUT,BLACK,TRIM2#
5801
58801EBOX SUB-ASSY, CONSOLE, UPPER
58804APANEL SUB-ASSY, CONSOLE, UPPER
CFRP 3K&F 10TH ANNIVERSARY,BLUE,TRIM8#
CFRP 3K,BLACK,TRIM0#,2#,3#,4#
CFRP COMPOSITE,BLACK,TRIM0#,1#,2#,3#,4#
CFRP 3K,BLACK,TRIM0#,1#,2#,3#
CFRP COMPOSITE,BLACK,TRIM0#,1#,2#,3#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#
BLACK/BLUE,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#
BLACK/BLUE,TRIM0#,1#,2#,3#,8#
58807EFRAME SUB-ASSY, SHIFTING HOLE
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM0#,2#,3#
BLACK/BLUE,TRIM0#,1#,2#,3#,8#
58810JBOX ASSY, CONSOLE
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,8#
58826APOCKET, CONSOLE BOX, LOWER
58834ACOVER, CONSOLE, LOWER
58837APAD, CONSOLE BOX SILENCER, NO.2
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM0#,2#,3#,4#
58872ACUSHION, CONSOLE BOX, NO.2
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,8#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,8#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,8#
58918ABRACKET, BOX SUPPORT
58919BPLATE, CONSOLE BOX
58920AARMREST ASSY, REAR CONSOLE
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,8#
58923APANEL, CONSOLE REAR END
BLACK,TRIM0#,2#,3#,4#
58924APANEL, CONSOLE REAR END, NO.2
BLACK,TRIM0#,2#,3#,4#
58944ACOVER, CONSOLE, REAR
BLACK,TRIM0#,2#,3#,4#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
8121
8202
8401
8603
9015950138
main90159-50138
9015950327
main90159-50327
9016130003
main90161-30003
9046710201
main90467-10201
9046710203
main90467-10203
9046712080
main90467-12080
9165160618
main91651-60618
9167380616
main91673-80616
9353053010
main93530-53010
9356014012
main93560-14012
9356053012
main93560-53012
9356854512
main93568-54512
9356855014
main93568-55014
49 parts on this diagram · 3 diagrams in section
