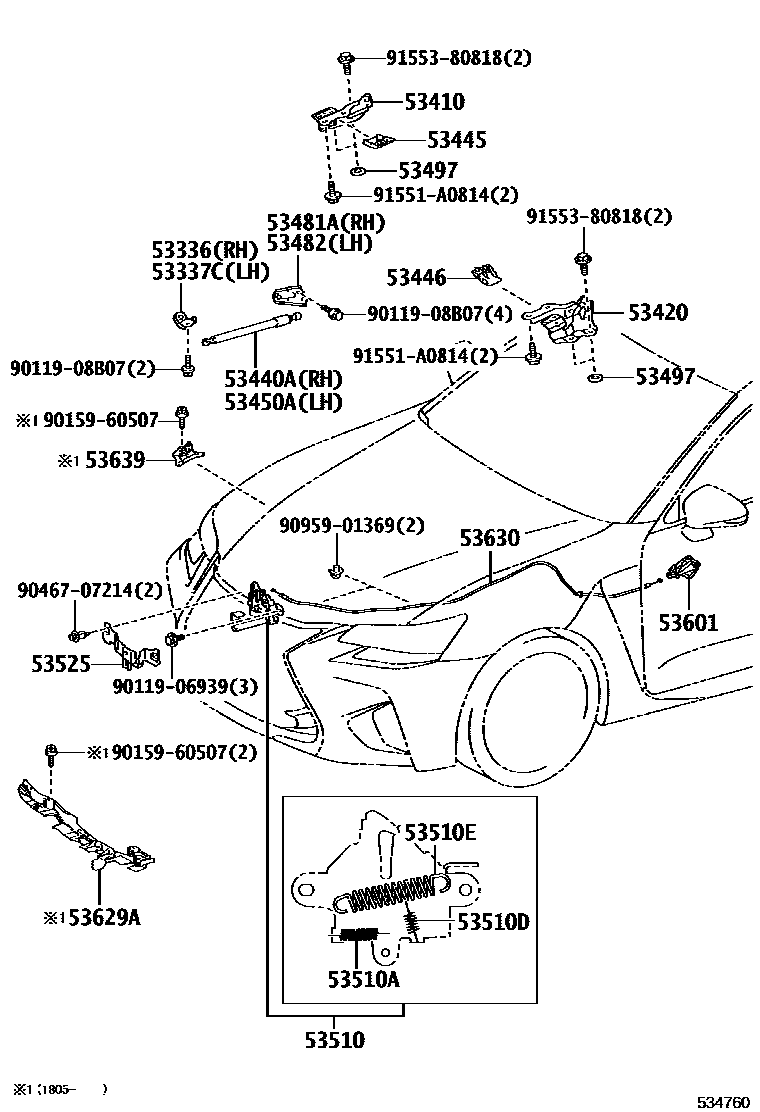

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337CBRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53445COVER, HOOD HINGE, RH
53446COVER, HOOD HINGE, LH
53450ASUPPORT ASSY, HOOD, LH
53481ABRACKET, HOOD SUPPORT, RH
53482BRACKET, HOOD SUPPORT, LH
53497PAD, HOOD HINGE, NO.1
T=1.0
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.4,CW=15
53525PROTECTOR, HOOD LOCK RELEASE LEVER
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
53629ACOVER, HOOD LOCK CONTROL CABLE
CHILE SPEC
M.S.AMERICA SPEC
53630CABLE ASSY, HOOD LOCK CONTROL
53639COVER, HOOD LOCK CONTROL CABLE, NO.2
CHILE SPEC
M.S.AMERICA SPEC
9011906939
main90119-06939
9011908B07
main90119-08B07
9015960507
main90159-60507
9046707214
main90467-07214
9095901369
main90959-01369
91551A0814
main91551-A0814
9155380818
main91553-80818
27 parts on this diagram · 2 diagrams in section
