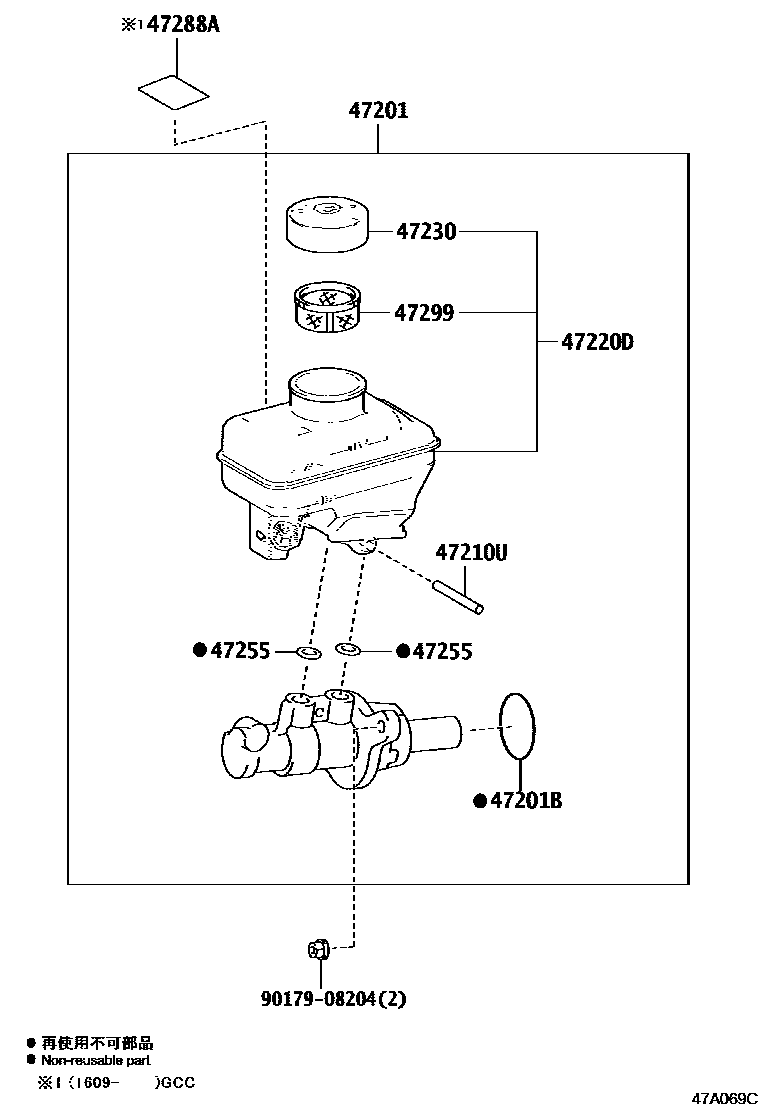

Toyota 151330 — BRAKE MASTER CYLINDER
47201BRING, O(FOR BRAKE MASTER CYLINDER)
47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47255GROMMET, MASTER CYLINDER RESERVOIR
47288ALABEL, BRAKE FLUID NOTICE
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
9017908204
9 parts on this diagram · 2 diagrams in section
BRAKE MASTER CYLINDER for Toyota 151330
This section contains 9 genuine Toyota parts for the BRAKE MASTER CYLINDER system of the Toyota 151330. Key components include: CYLINDER SUB-ASSY, BRAKE MASTER, RING, O(FOR BRAKE MASTER CYLINDER), PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER), RESERVOIR ASSY, BRAKE MASTER CYLINDER, CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER.
