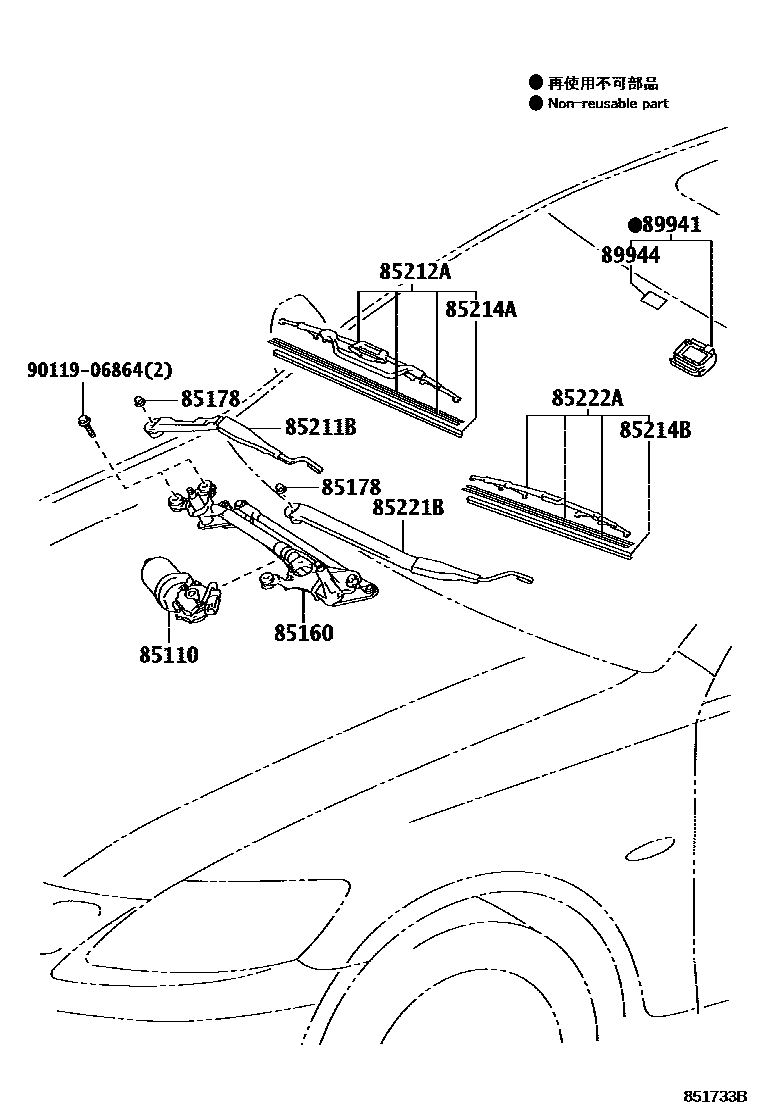

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30550iGWS191..LHD200602-200709

main85110-30560iGWS191..RHD200602-200709

main85110-30590iGWS191..LHD200709

main85110-30600iGWS191..RHD200709

85160LINK ASSY, WINDSHIELD WIPER

main85150-30580iGWS191..LHD200709-200710

main85150-30630iGWS191..RHD200709-200710

main85150-30640iGWS191..LHD200602-200709

main85150-30650iGWS191..RHD200602-200709

main85150-30680iGWS191..RHD200710

main85150-30690iGWS191..LHD200710

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iGWS191200602-200709

85211BARM, FRONT WIPER, RH

main85211-30720iGWS191..RHD200602-200709

main85211-30730iGWS191..LHD200602-200709

85212ABLADE, FR WIPER, RH

main85212-30410iGWS191..RHD200602-201112

main85212-33230iGWS191..LHD200602-200609

main85212-33231iGWS191..LHD200610-201112

85214ARUBBER, WIPER, RH

main85214-30380iGWS191..RHD200602-200709

main85214-30390iGWS191..LHD200602-200709

85214BRUBBER, WIPER, LH

main85214-30380iGWS191..LHD200602-200709

main85214-30390iGWS191..RHD200602-200709

85221BARM, FRONT WIPER, LH

main85221-30610iGWS191..RHD200602-200709

main85221-30630iGWS191..LHD200602-200709

85222ABLADE, FR WIPER, LH

main85222-30580iGWS191..RHD200602-201112

main85222-33240iGWS191..LHD200602-200609

main85222-33241iGWS191..LHD200610-201112

89941SENSOR, RAIN

main89941-30012iGWS191200709-200808

89944TAPE, RAIN SENSOR

main89944-30020iGWS191200709-200809

9011906864

main90119-06864

12 parts on this diagram · 2 diagrams in section
