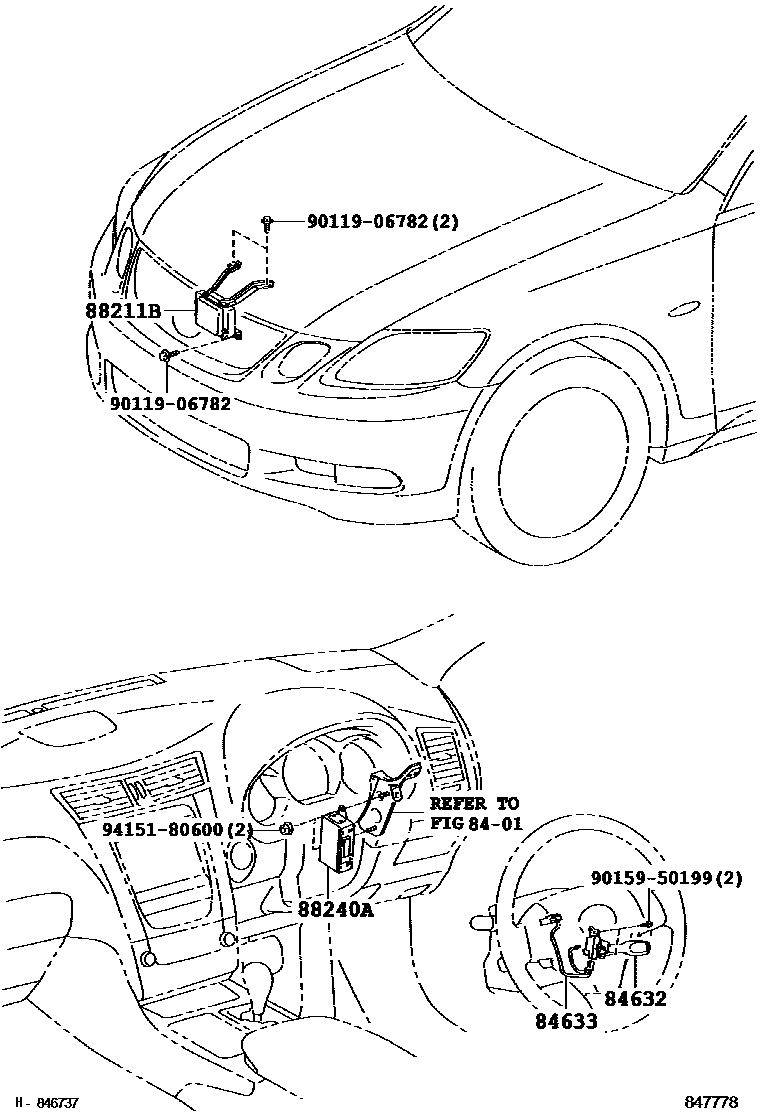

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84632SWITCH, CRUISE CONTROL MAIN

main84632-58011supersedes 84632-34011iGWS191200602-200709

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

84633WIRE, CRUISE CONTROL SWITCH

main84633-48010iGWS191200909-201112

PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-30080iGWS191200602-200709

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

main88210-30190iGWS191200709-200808

PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

main88210-30210iGWS191200809-200909

PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

88240ACOMPUTER ASSY, DISTANCE CONTROL

main88240-30460iGWS191..RHD200602-200709

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

main88240-30461iGWS191..RHD200709-200908

PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

main88240-30462iGWS191..RHD200909

PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA

main88240-30470iGWS191..LHD200602-200709

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

main88240-30471iGWS191..LHD200709-200908

PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

main88240-30472iGWS191..LHD200909

PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA

9011906782

main90119-06782

9015950199

main90159-50199

9415180600

main94151-80600

8 parts on this diagram · 2 diagrams in section
