FOG LAMP

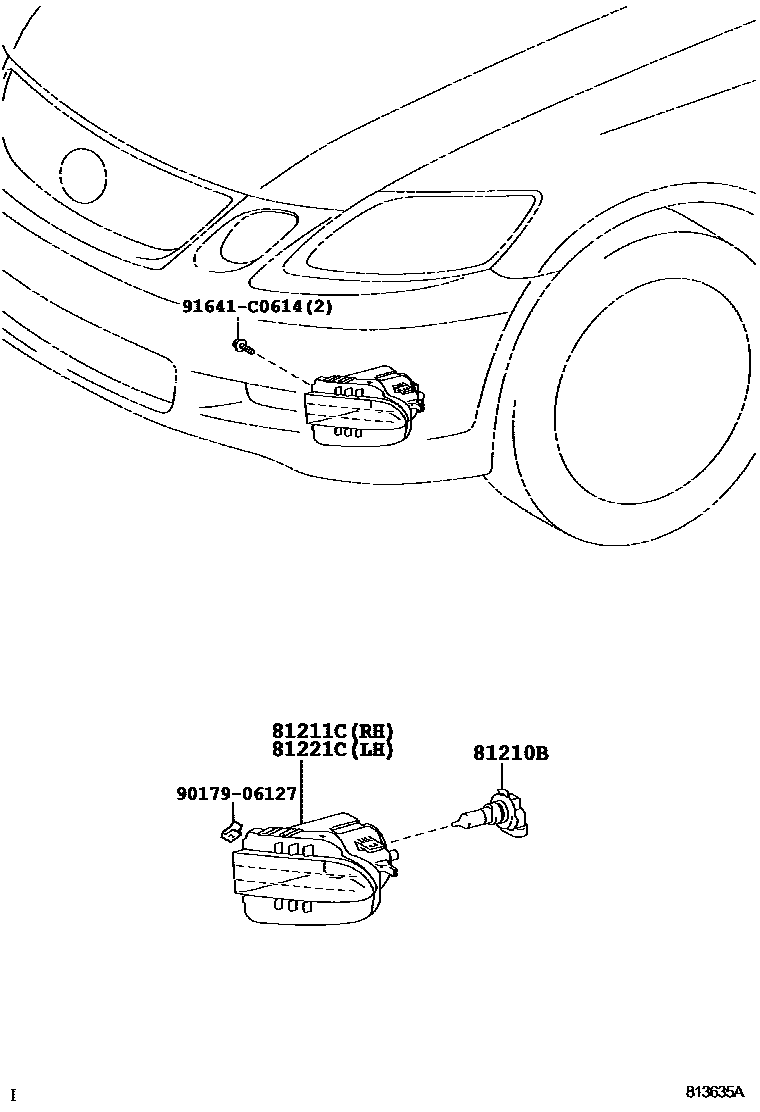

Parts diagram

81210BBULB, FOG LAMP

main90981-13047i200602-201112

12V 51W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-30310i200602-200608

main81211-30312i200608-201112

81221CLAMP UNIT, FOG LAMP, LH

main81221-30280i200602-200608

main81221-30282i200608-201112

9017906127

main90179-06127

91641C0614

main91641-C0614

5 parts on this diagram · 1 diagram in section
