EPC Data

CONSOLE BOX & BRACKET

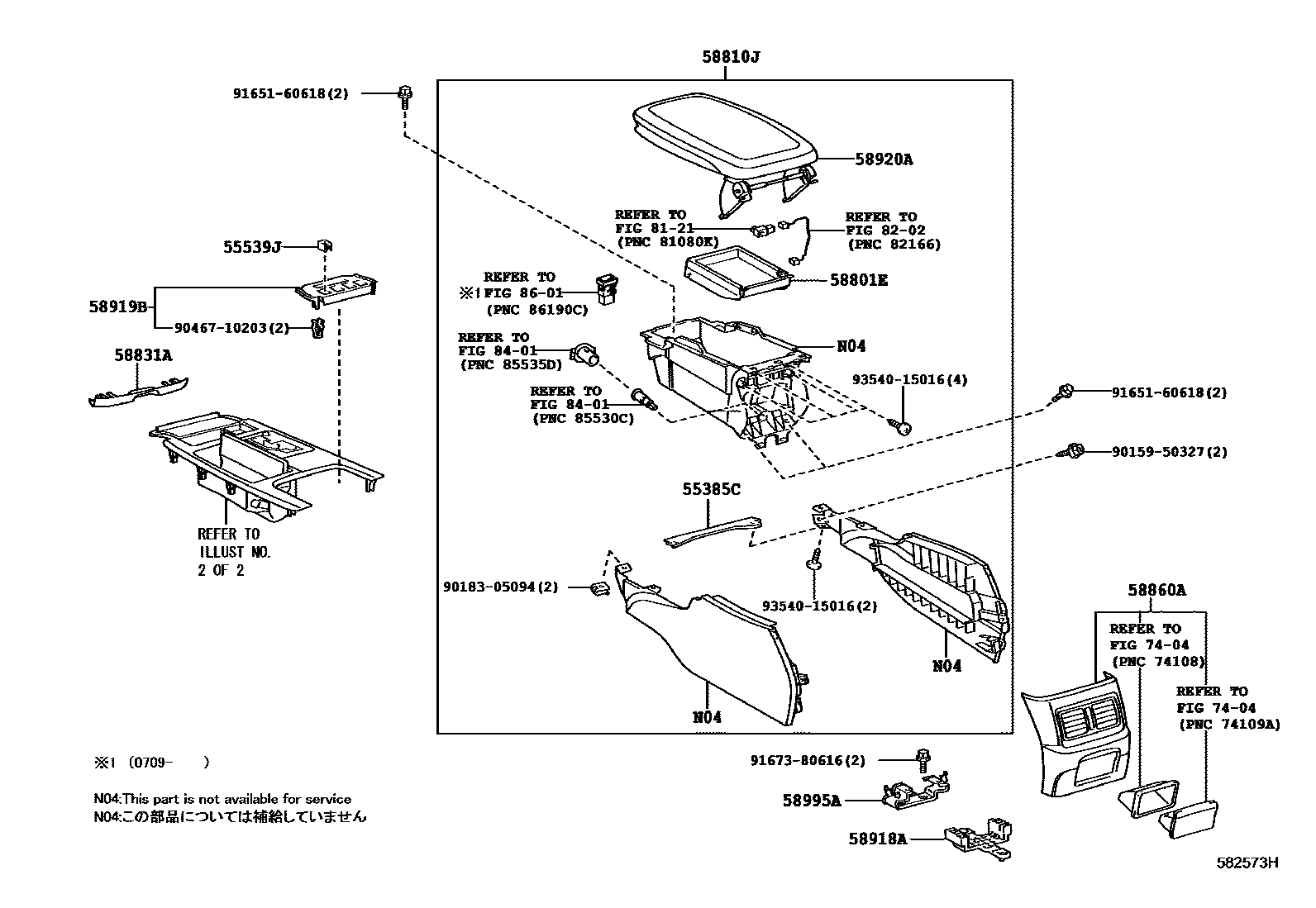

Parts diagram
55385CBRACKET, CONSOLE BOX MOUNTING, NO.5
main55385-30080i200602-200608
main55385-30081i200709
55539JCOVER, SPARE SWITCH HOLE
main55539-30250i200602-200709
58801EBOX SUB-ASSY, CONSOLE, UPPER
main58801-30270i200602-200704
main58801-30271i200709
58810JBOX ASSY, CONSOLE
main58810-30A20-A0supersedes 58810-30B70-A0i200602-200704
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main58810-30A20-B0supersedes 58810-30B70-B0i200602-200704
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main58810-30A20-C0supersedes 58810-30B70-C0i200602-200704
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58810-30A22-A0supersedes 58810-30B70-A0i200705-200709
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main58810-30A22-B0supersedes 58810-30B70-B0i200705-200709
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main58810-30A22-C0supersedes 58810-30B70-C0i200705-200709
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58810-30B30-A0supersedes 58810-30C10-A0i200602-200704
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main58810-30B30-B0supersedes 58810-30C10-B0i200602-200704
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main58810-30B30-C0supersedes 58810-30C10-C0i200602-200704
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58810-30B32-A0supersedes 58810-30C10-A0i200705-200709
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main58810-30B32-B0supersedes 58810-30C10-B0i200705-200709
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main58810-30B32-C0supersedes 58810-30C10-C0i200705-200709
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58810-30B60-A0supersedes 58810-30B70-A0i200806-200807
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main58810-30B60-B1supersedes 58810-30B70-B0i200806-200807
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main58810-30B60-C0supersedes 58810-30B70-C0i200806-200807
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58810-30B61-A0supersedes 58810-30B71-A0i200808-200909
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main58810-30B61-B1supersedes 58810-30B71-B0i200808-200909
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main58810-30B61-C0supersedes 58810-30B71-C0i200808-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58810-30B62-A4supersedes 58810-30B72-A2i200909-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main58810-30B62-B3supersedes 58810-30B72-B1i200909-201112
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main58810-30B62-C4supersedes 58810-30B72-C1i200909-201112
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58810-30C00-A0supersedes 58810-30C10-A0i200806-200807
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main58810-30C00-B1supersedes 58810-30C10-B0i200806-200807
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main58810-30C00-C0supersedes 58810-30C10-C0i200806-200807
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58810-30C01-A0supersedes 58810-30C11-A0i200808-200909
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main58810-30C01-B1supersedes 58810-30C11-B0i200808-200909
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main58810-30C01-C0supersedes 58810-30C11-C0i200808-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58810-30C02-A4supersedes 58810-30C12-A2i200909-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main58810-30C02-B3supersedes 58810-30C12-B1i200909-201112
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main58810-30C02-C5supersedes 58810-30C12-C1i200909-201112
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58810-30C20-A0supersedes 58810-30B70-A0i200709-200807
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM0#
main58810-30C20-B0supersedes 58810-30B70-B0i200709-200807
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main58810-30C20-C0supersedes 58810-30B70-C0i200709-200807
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM2#
main58810-30C21-A0supersedes 58810-30B71-A0i200808-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM0#
main58810-30C21-B0supersedes 58810-30B71-B0i200808-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main58810-30C21-C0supersedes 58810-30B71-C0i200808-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM2#
main58810-30C22-A2i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM02
main58810-30C22-B1supersedes 58810-30B72-B1i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main58810-30C22-C4i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WATER WHITE/DK.BLUE,TRIM04
main58810-30C22-C5i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM20
main58810-30C22-C7i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK/RED,TRIM24,25
main58810-30C40-A0supersedes 58810-30C10-A0i200709-200807
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM0#
main58810-30C40-B0supersedes 58810-30C10-B0i200709-200807
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main58810-30C40-C0supersedes 58810-30C10-C0i200709-200807
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM2#
main58810-30C41-A0supersedes 58810-30C11-A0i200808-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM0#
main58810-30C41-B0supersedes 58810-30C11-B0i200808-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main58810-30C41-C0supersedes 58810-30C11-C0i200808-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM2#
main58810-30C41-C3i200904-200908
SINGAPORE SPEC&RED X BLACK INTERIOR PACKAGE,BLACK/RED,TRIM20
main58810-30C42-A2i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM02
main58810-30C42-B1supersedes 58810-30C12-B1i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main58810-30C42-C8i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK/WATER WHITE,TRIM04
main58810-30C42-C9supersedes 58810-30C12-C1i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM2#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
main58831-30180-C0i200709-201112
BLACK,TRIM04,1#,2#
main58831-30180-E0i200709-201112
ORCHID BROWN,TRIM00,01,02
main58831-30190-C0i200709-201112
BLACK,TRIM04,1#,2#
main58831-30190-E0i200602-200709
ORCHID BROWN,TRIM0#
58860AREGISTER ASSY, CONSOLE BOX
main58860-30040-A0i200602-200709
IVORY,TRIM0#
main58860-30040-B0i200602-200709
GRAY,TRIM1#
main58860-30040-C0i200602-200709
BLACK,TRIM2#
main58860-30041-A0i200709-200909
IVORY,TRIM0#; SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM00,01
main58860-30041-A1i200909-201112
IVORY,TRIM0#; SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM02
main58860-30041-B1i200709-201112
LT.GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main58860-30041-C0i200709-201112
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM04,2#
58918ABRACKET, BOX SUPPORT
main58918-30070i200602-200709
58919BPLATE, CONSOLE BOX
main58919-30050i200806
SEAT COVER MATERIAL-LEATHER; SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
58920AARMREST ASSY, REAR CONSOLE
main58920-30140-A0supersedes 58920-30150-A0i200602-200704
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
main58920-30140-B0supersedes 58920-30150-B0i200705-200709
SEAT COVER MATERIAL-LEATHER,NEW GRAY,TRIM1#
main58920-30140-B2supersedes 58920-30150-B0i200806-200807
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main58920-30140-C0supersedes 58920-30150-C1i200602-200704
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58920-30141-A0supersedes 58920-30151-A0i200808-200909
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
main58920-30141-A5supersedes 58920-30151-A2i200909-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main58920-30141-B2supersedes 58920-30151-B0i200808-200909
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main58920-30141-B4supersedes 58920-30151-B1i200909-201112
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main58920-30141-C0supersedes 58920-30151-C1i200808-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58920-30141-C3supersedes 58920-30151-C2i200909-201112
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58920-30200-A0supersedes 58920-30211-A0i200705-200709
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
main58920-30200-B0supersedes 58920-30211-B0i200602-200704
SEAT COVER MATERIAL-LEATHER,NEW GRAY,TRIM1#
main58920-30200-C0supersedes 58920-30211-C0i200705-200709
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58920-30201-A0supersedes 58920-30211-A0i200806-200807
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
main58920-30201-B2supersedes 58920-30211-B0i200806-200807
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main58920-30201-C0supersedes 58920-30211-C0i200806-200807
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58920-30202-A0supersedes 58920-30212-A0i200808-200909
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
main58920-30202-A5supersedes 58920-30212-A2i200909-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main58920-30202-B2supersedes 58920-30212-B0i200808-200909
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main58920-30202-B4supersedes 58920-30212-B1i200909-201112
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main58920-30202-C0supersedes 58920-30212-C0i200808-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58920-30202-C3supersedes 58920-30212-C1i200909-201112
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main58920-30230-A0supersedes 58920-30150-A0i200709-200807
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM0#
main58920-30230-B0supersedes 58920-30150-B0i200709-200807
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LIGHT GRAY,TRIM1#
main58920-30230-C0supersedes 58920-30150-C1i200709-200807
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM2#
main58920-30231-A0supersedes 58920-30151-A0i200808-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM0#
main58920-30231-A3i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM02
main58920-30231-A4i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WATER WHITE/DK.BLUE,TRIM04
main58920-30231-B0supersedes 58920-30151-B0i200808-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LIGHT GRAY,TRIM1#
main58920-30231-B2supersedes 58920-30151-B1i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main58920-30231-C0supersedes 58920-30151-C1i200808-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM2#
main58920-30231-C2i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM20
main58920-30231-C4i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK/RED,TRIM24,25
main58920-30250-A0supersedes 58920-30211-A0i200709-200807
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM0#
main58920-30250-B0supersedes 58920-30211-B0i200709-200807
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LIGHT GRAY,TRIM1#
main58920-30250-C0supersedes 58920-30211-C0i200709-200807
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM2#
main58920-30251-A0supersedes 58920-30212-A0i200808-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM0#
main58920-30251-A3i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM02
main58920-30251-A4i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WATER WHITE/DK.BLUE,TRIM04
main58920-30251-B0supersedes 58920-30212-B0i200808-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LIGHT GRAY,TRIM1#
main58920-30251-B2supersedes 58920-30212-B1i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main58920-30251-C0supersedes 58920-30212-C0i200808-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM2#
main58920-30251-C2i200904-200908
SINGAPORE SPEC&RED X BLACK INTERIOR PACKAGE,BLACK/RED,TRIM20
main58920-30251-C4supersedes 58920-30212-C1i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM2#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-30210i200602-200709
7404ASH RECEPTACLE
→ Go to FIG 74-04
8121INTERIOR LAMP
→ Go to FIG 81-21
8202WIRING & CLAMP
→ Go to FIG 82-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
→ Go to FIG 86-01
9015950327
main90159-50327
9018305094
main90183-05094
9046710203
main90467-10203
9165160618
main91651-60618
9167380616
main91673-80616
9354015016
main93540-15016

21 parts on this diagram · 3 diagrams in section

CONSOLE BOX & BRACKET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
