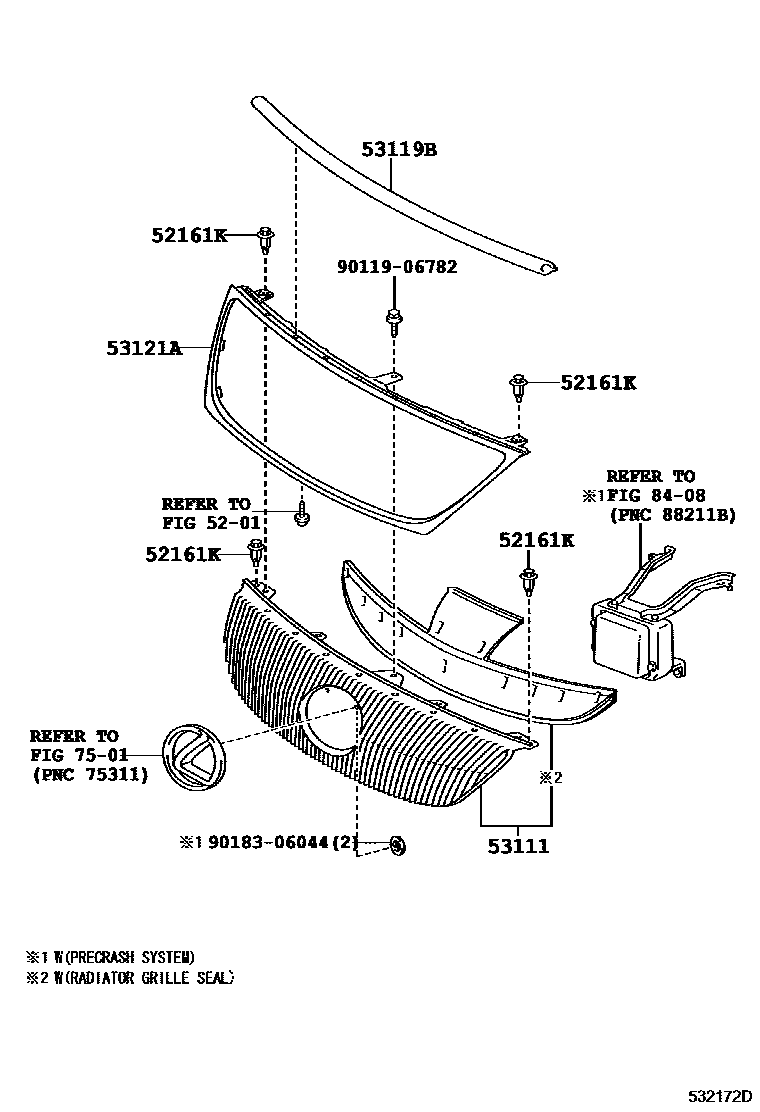

RADIATOR GRILLE

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52161KPIECE, FRONT BUMPER

main52161-16010iGWS191200602-201112

53111GRILLE, RADIATOR

main53111-30870iGWS191200602-200709

NO PAINT REQ.

main53111-30C50iGWS191200709-200909

NO PAINT REQ.

main53111-30C80iGWS191200909-201112

NO PAINT REQ.

53119BPROTECTOR, RADIATOR GRILLE

main53119-30210iGWS191200602-201112

53121AMOULDING, RADIATOR GRILLE

main52711-30231iGWS191200602-200709

main52711-30250iGWS191200709-201112

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9011906782

main90119-06782

9018306044

main90183-06044

9 parts on this diagram · 2 diagrams in section
