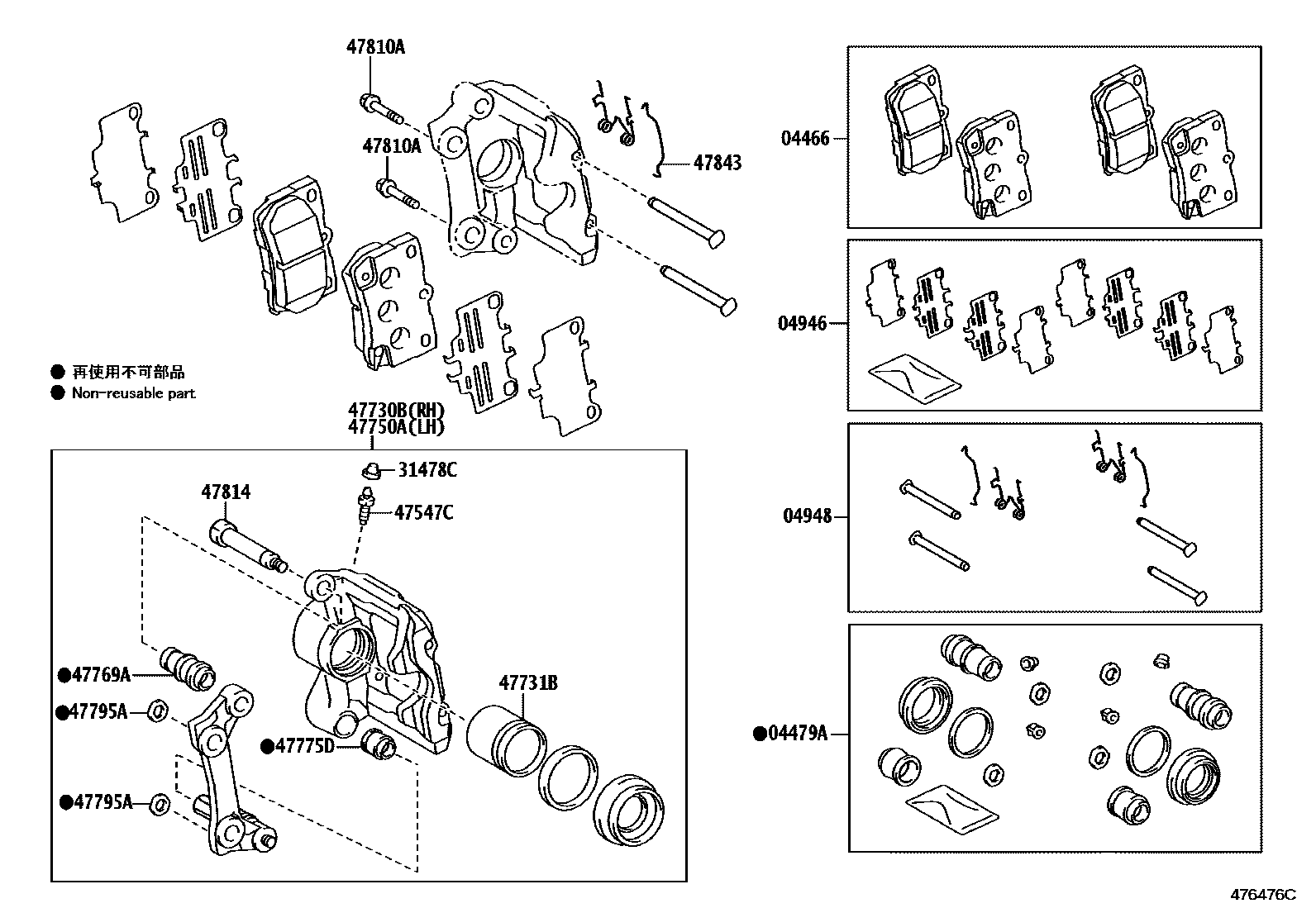

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1MARK 38 0003 1MARK 45

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGWS191200602-200609

MARK NBK PN529H

main04466-30240iGWS191200609-200709

MARK AK NS286H,MARK 38

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30460iGWS191200609-200707

MARK 38

main04479-30480iGWS191200707-200709

MARK 38

main04479-30560iGWS191201104

MARK 38

main04479-61020iGWS191200602-200609

main04479-22170iGWS191..RHD201104

SOUTH AFRICA SPEC,MARK 45

main04479-61040iGWS191..RHD200809-201104

SOUTH AFRICA SPEC,MARK 45

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22090iGWS191200602-200609

main04946-30200iGWS191200709

MARK 38

04948FITTING KIT, DISC BRAKE, REAR

main04948-22090iGWS191200602-200705

main04948-30210iGWS191200705-200709

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iGWS191200602-200709

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030×2iGWS191200602-200709

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-22221iGWS191200602-200609

main47830-30330iGWS191200709

MARK 38

47731BPISTON, REAR DISC BRAKE

main47831-22220×2iGWS191200602-200609

main47831-30330×2iGWS191200609-200709

MARK 38

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-22221iGWS191200602-200609

main47850-30330iGWS191200609-200709

MARK 38

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300×2iGWS191200709

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-22221×2iGWS191200602-200707

main47875-30340×2iGWS191200709-201104

main47875-30341×2iGWS191201104

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300×4iGWS191200602-200709

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525×4iGWS191200602-200709

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300×2iGWS191200709

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300×2iGWS191200602-200705

15 parts on this diagram · 3 diagrams in section
